Aravali Villa · Full Construction Set · B + G + 2
Aravali Villa —
drawing by drawing.
26 coordinated sheets · 104 distinct drawings across architecture, interior, structure and MEP. Every sheet ships with the callouts a site engineer needs.
About the project · 2024
A four-level villa drawn end to end in AutoCAD.
Basement to terrace, architecture to MEP — one coordinated set of thirteen AutoCAD sheets, each carrying several drawings so structure and services never fall out of sync with the plan.
- Overview
- Aravali Villa is a B+G+2 luxury residence — a basement service level, a public ground floor of drawing rooms and hall, a private first floor of bedrooms, and a terrace level with two rooms and mumty. The set was drawn so a mason, a bar-bender and an MEP contractor can each open the same file and find their work.
- Scope
- Full working documentation in AutoCAD — architectural plans, centre-line setting-out, marking layouts, elevations and sections; interior sheets for bedroom, toilets and staircase; structural columns and beams; and coordinated MEP for plumbing, electrical and HVAC.
- Delivery
- 13 coordinated sheets carrying 104 distinct drawings — architecture, interior, structure and MEP. Every sheet is annotated with the callouts a site engineer actually references: setting-out grids, level datums, opening centres, tile patterns, beam sizes and drain points.
- Notes
- The setting-out chain is the workhorse of this project. Centre-line plans for basement, ground and first floor share the same grid so vertical alignment is provable at a glance — pair that with the marking-layout sheet at each level and the villa can be laid out on site with almost no rework.
— Chapter 01 · 12 sheets
Architecture.
Grids, walls and openings — the setting-out spine.

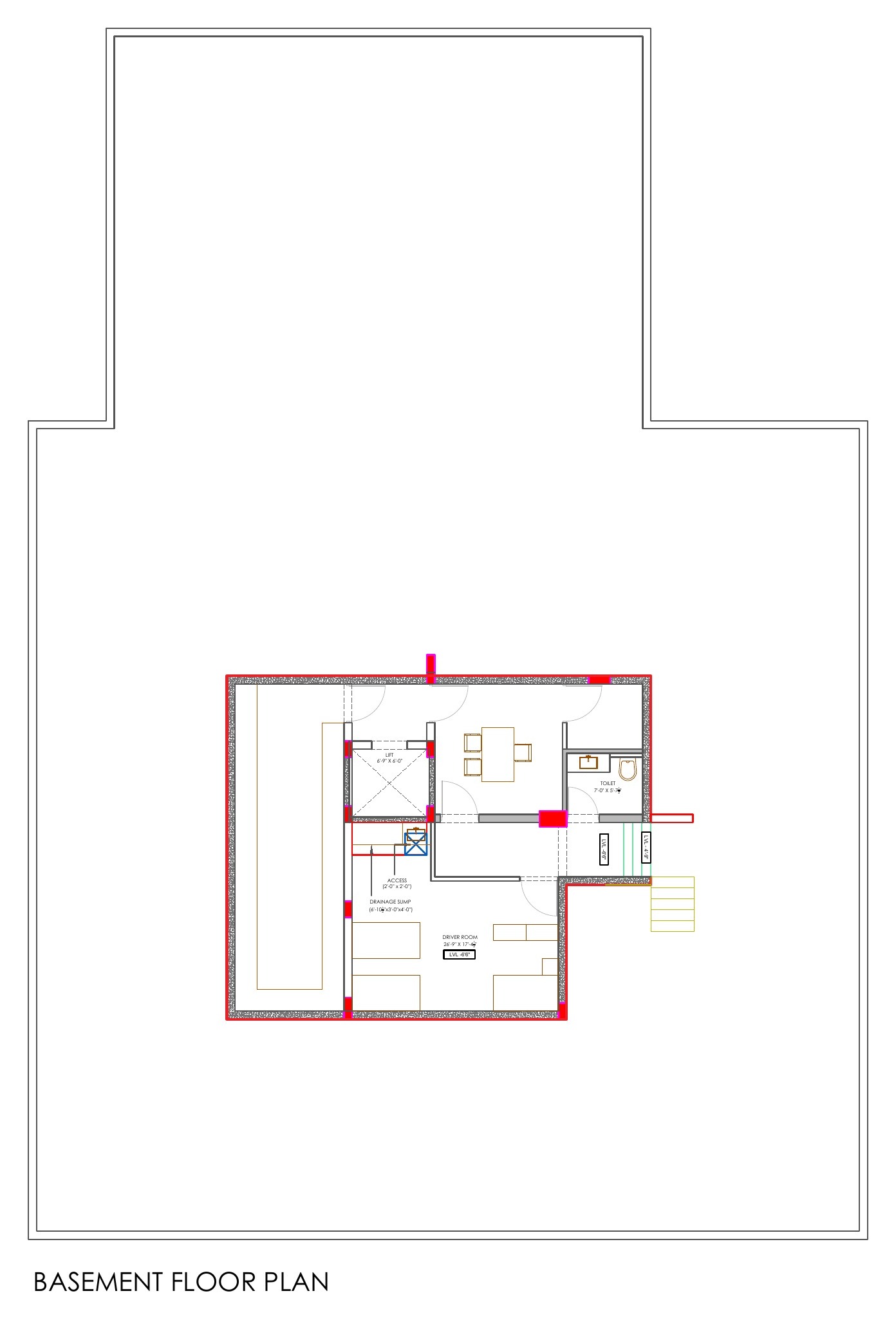

Sub-grade level — driver's room, utility zone and lift pit. The excavated footprint sits against the plot boundary as the setting-out reference for the whole villa.
- —Driver's room + utility & lift pit
- —Excavation vs plot boundary
- —Drainage sump & access hatch
- —LVL -6'-8"

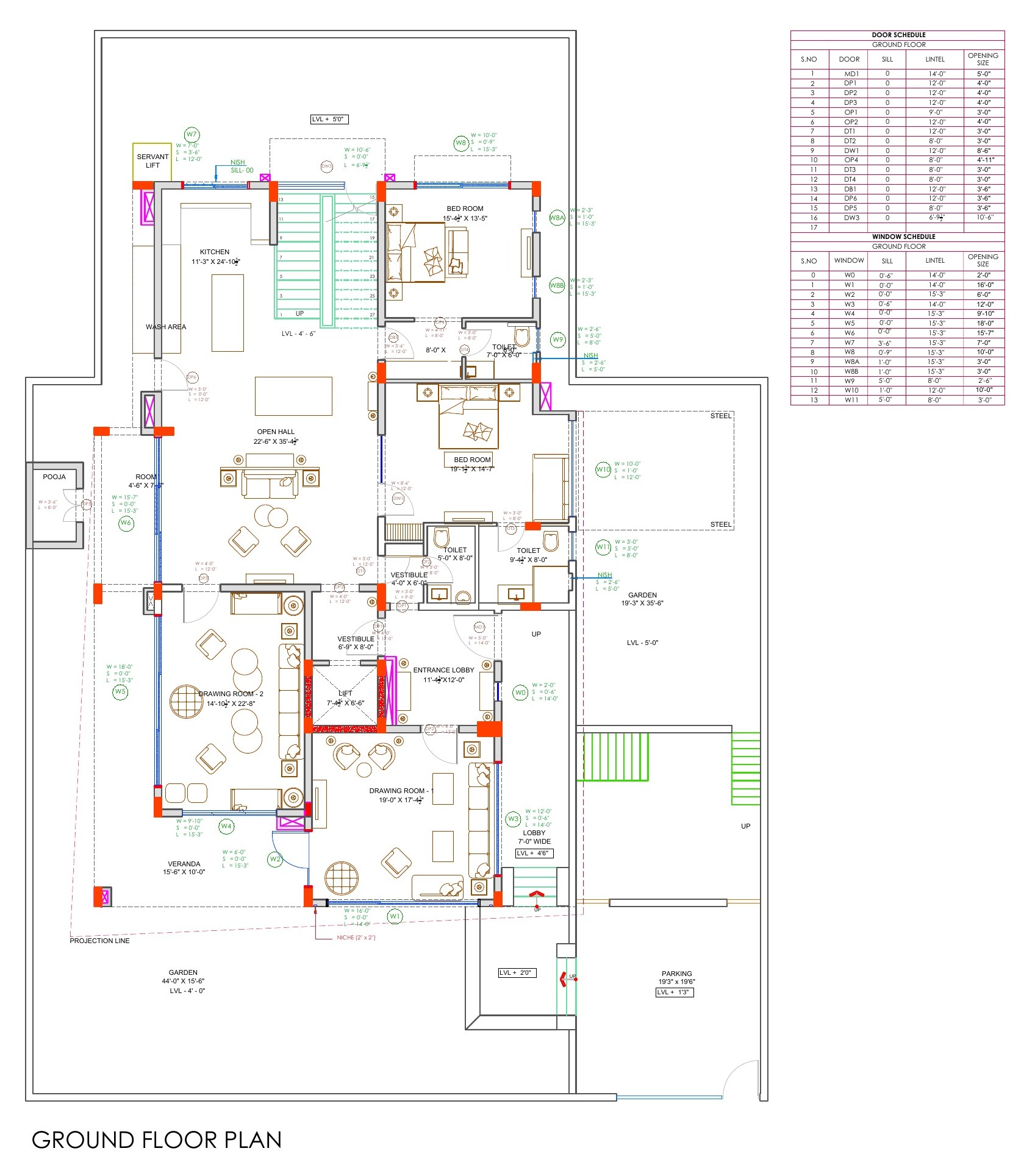

The public floor — lobby, drawing rooms, hall, kitchen, pooja, guest bedroom, garden and covered parking. Door / window schedules included on-sheet.
- —Lobby · 2 drawing rooms · hall
- —Kitchen · pooja · guest bedroom
- —Door / window schedule on-sheet
- —Garden + parking coordinated
The private floor — bedrooms, attached toilets and family living, stacked cleanly over the ground grid.
- —Bedrooms + toilets
- —Family living
- —Openings aligned to ground
- —Walls carried up

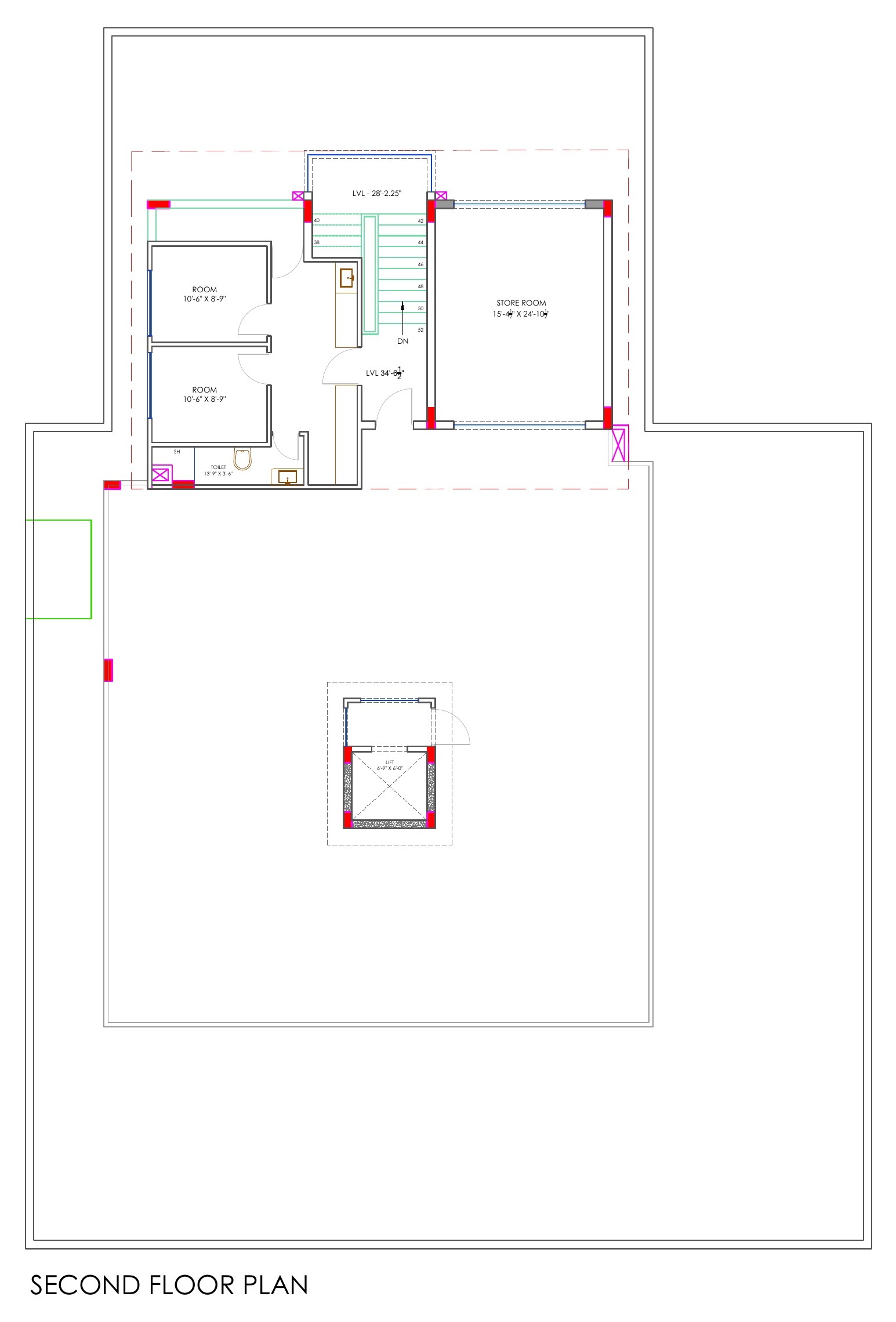

The terrace level — two rooms, store, toilet and stair mumty; the rest of the slab is usable terrace.
- —Rooms + store
- —Open terrace slab
- —Stair mumty & lift core
- —LVL 28'-2¼" / 34'-6½"

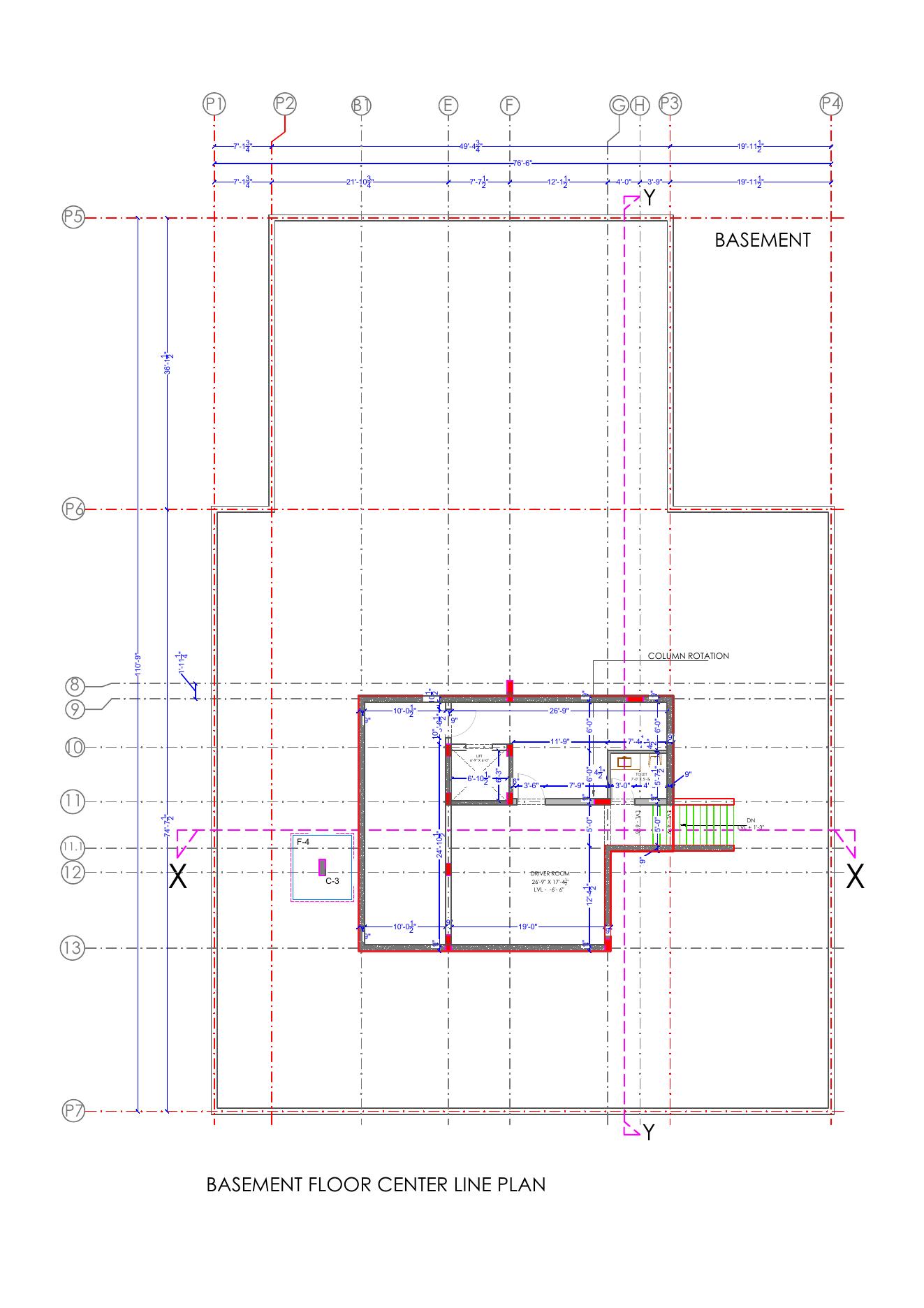

Centre-line setting-out for the basement — dimensions from grid to grid so the mason marks the raft without ambiguity.
- —Grid-to-grid dimensions
- —Column centre lines
- —Retained wall setout
- —Level datums

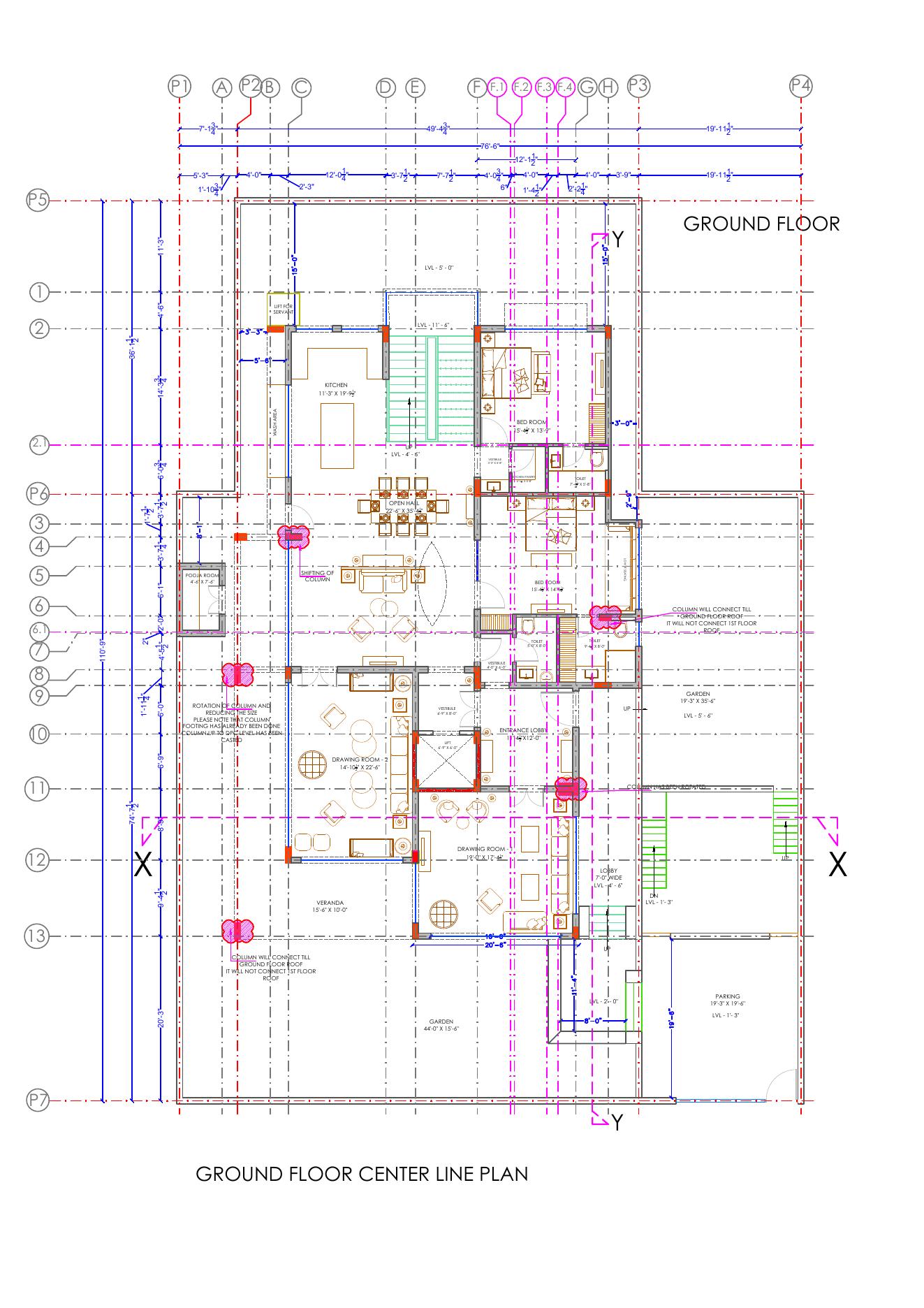

Full grid setting-out for the ground floor — every wall, column and opening dimensioned from the villa centre lines.
- —Wall & column centres
- —Opening positions
- —Slab edges
- —Datum references

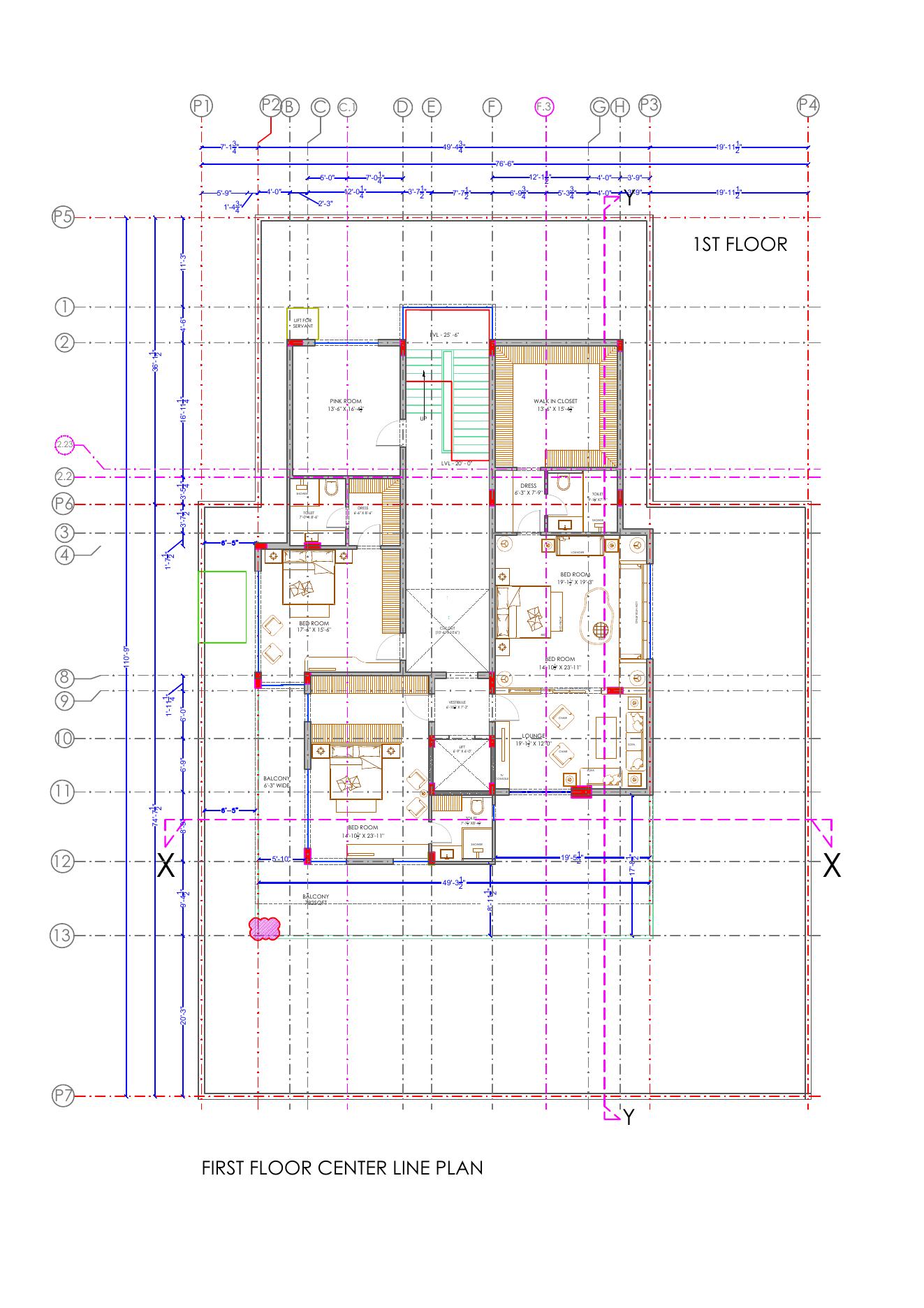

First-floor centre lines — verifies vertical alignment with the ground grid so structure runs straight through.
- —Grid continuity check
- —Column verticals
- —Opening centres
- —Slab edges

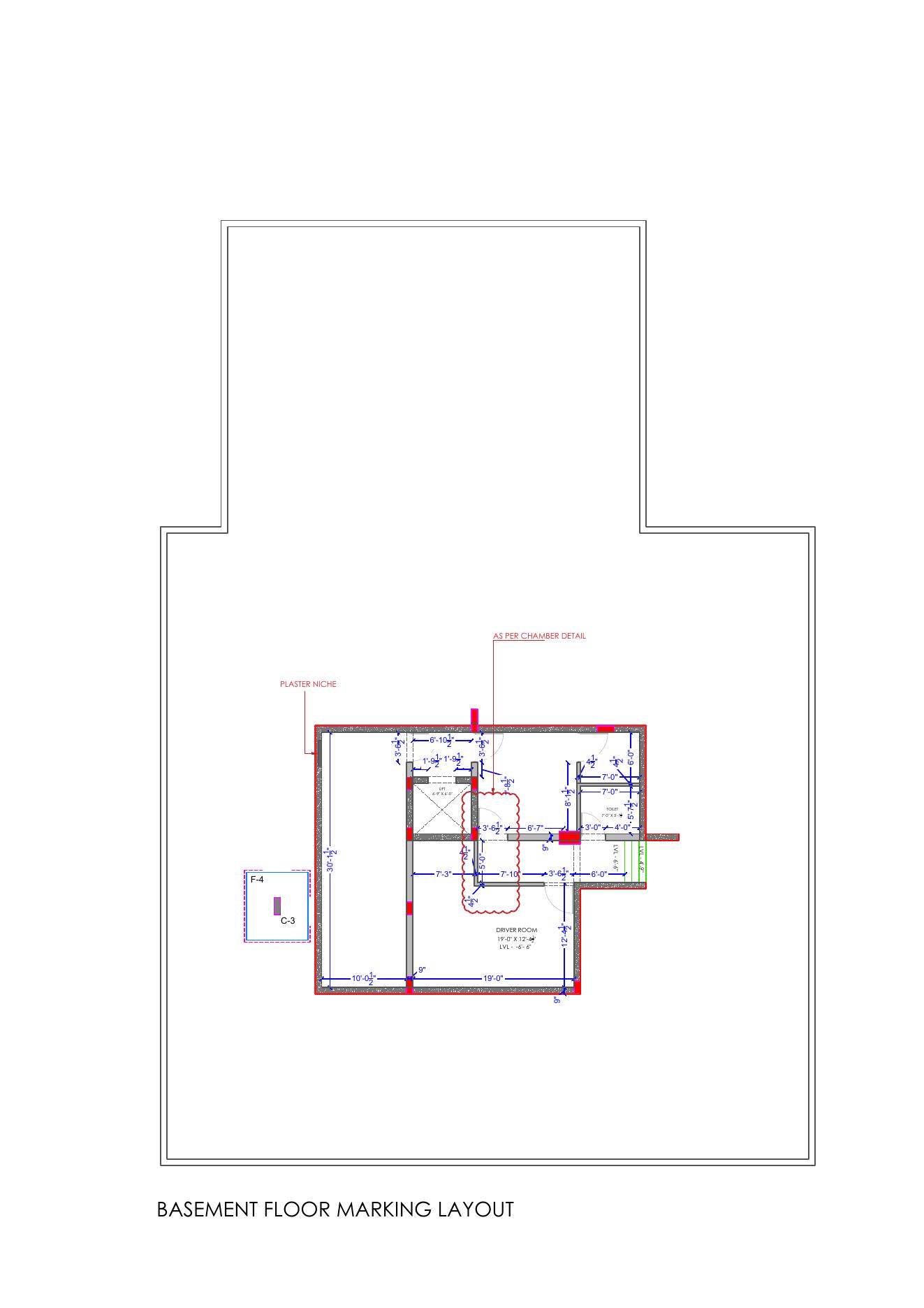

Marking layout for basement construction — brickline markout, block sizes and doorway rebate positions.
- —Brickline markout
- —Block sizes
- —Doorway rebates
- —Setback offsets

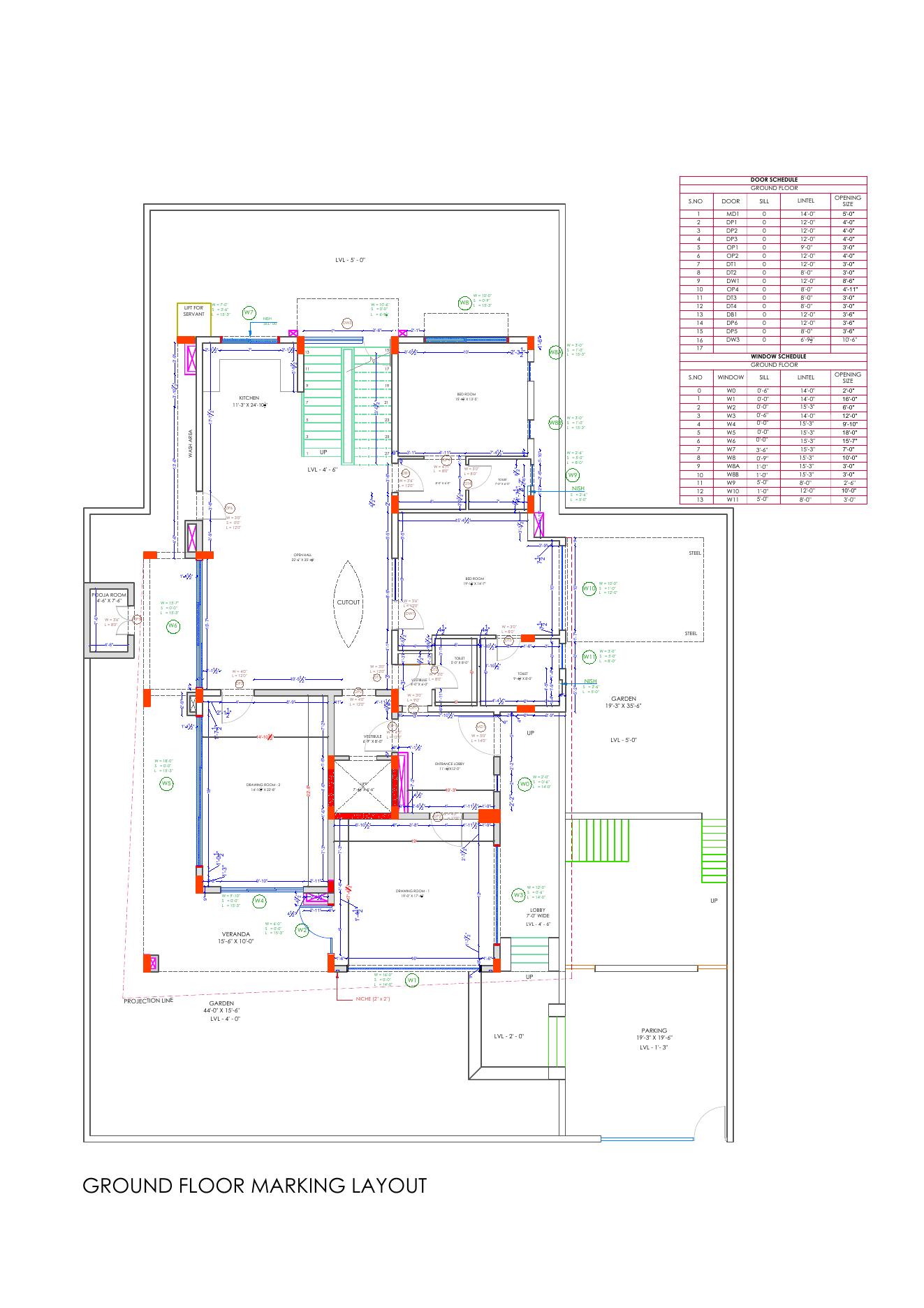

Ground-floor marking layout — wall thicknesses, sill / lintel levels and finish datum for the mason.
- —Wall thicknesses
- —Sill / lintel
- —Finish datum
- —Rebate details

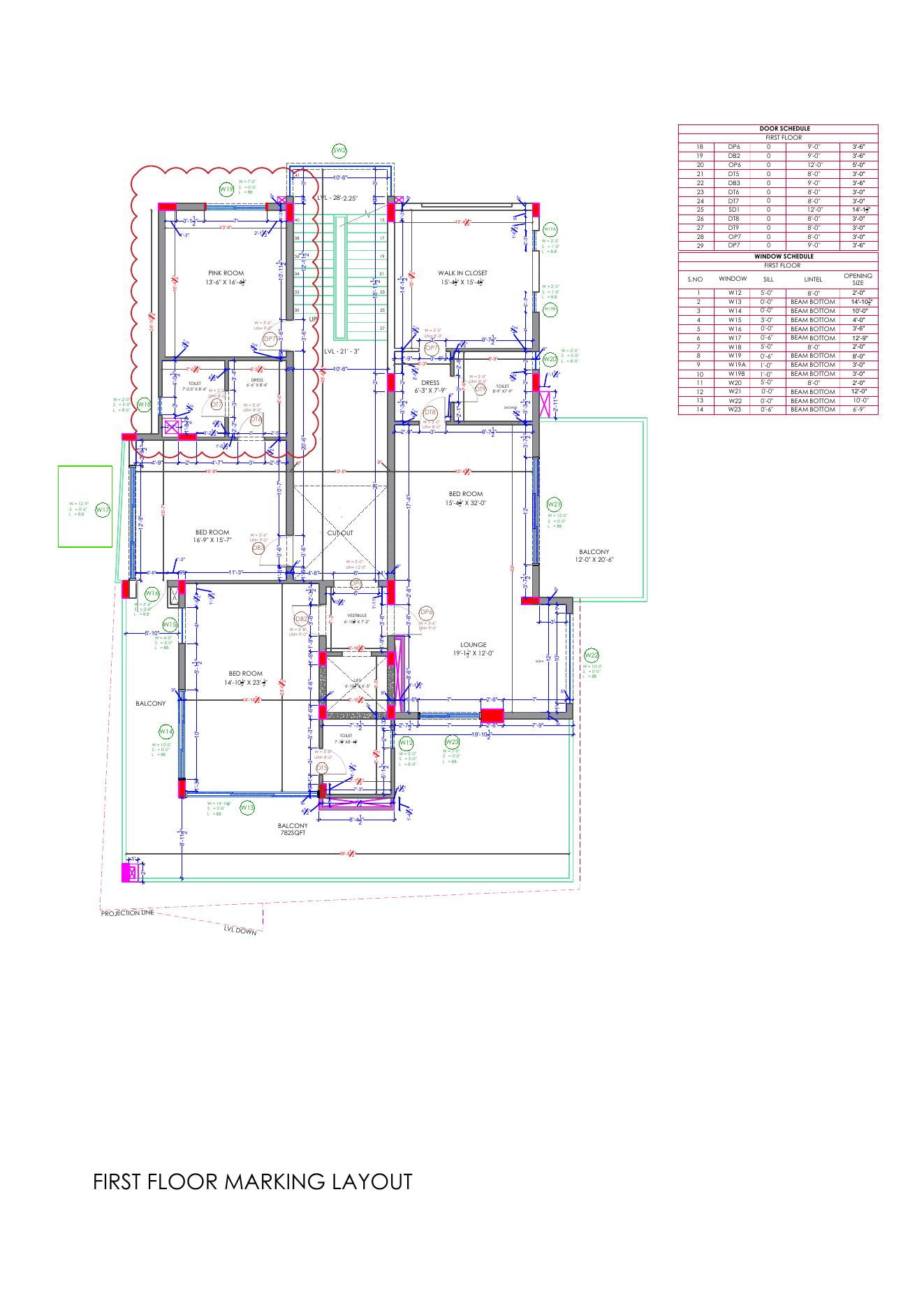

Upper-floor marking layout carried up from the ground for consistent block work and openings.
- —Wall carry-up
- —Opening markout
- —Sill / lintel
- —Finish datum

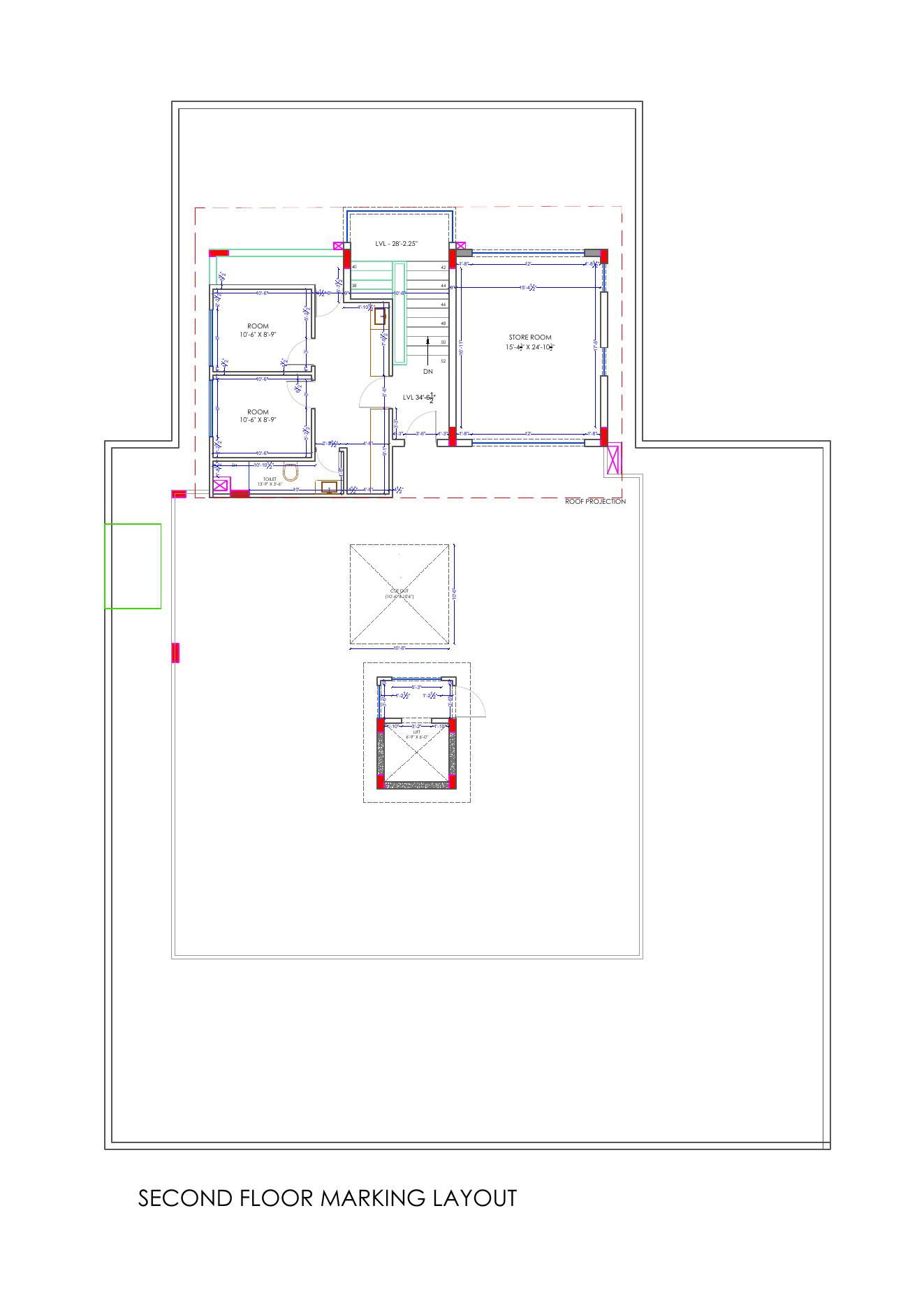

Second floor / terrace marking — rooms, mumty and parapet setout including terrace slope directions.
- —Room + mumty markout
- —Parapet setout
- —Slope directions
- —Drain points

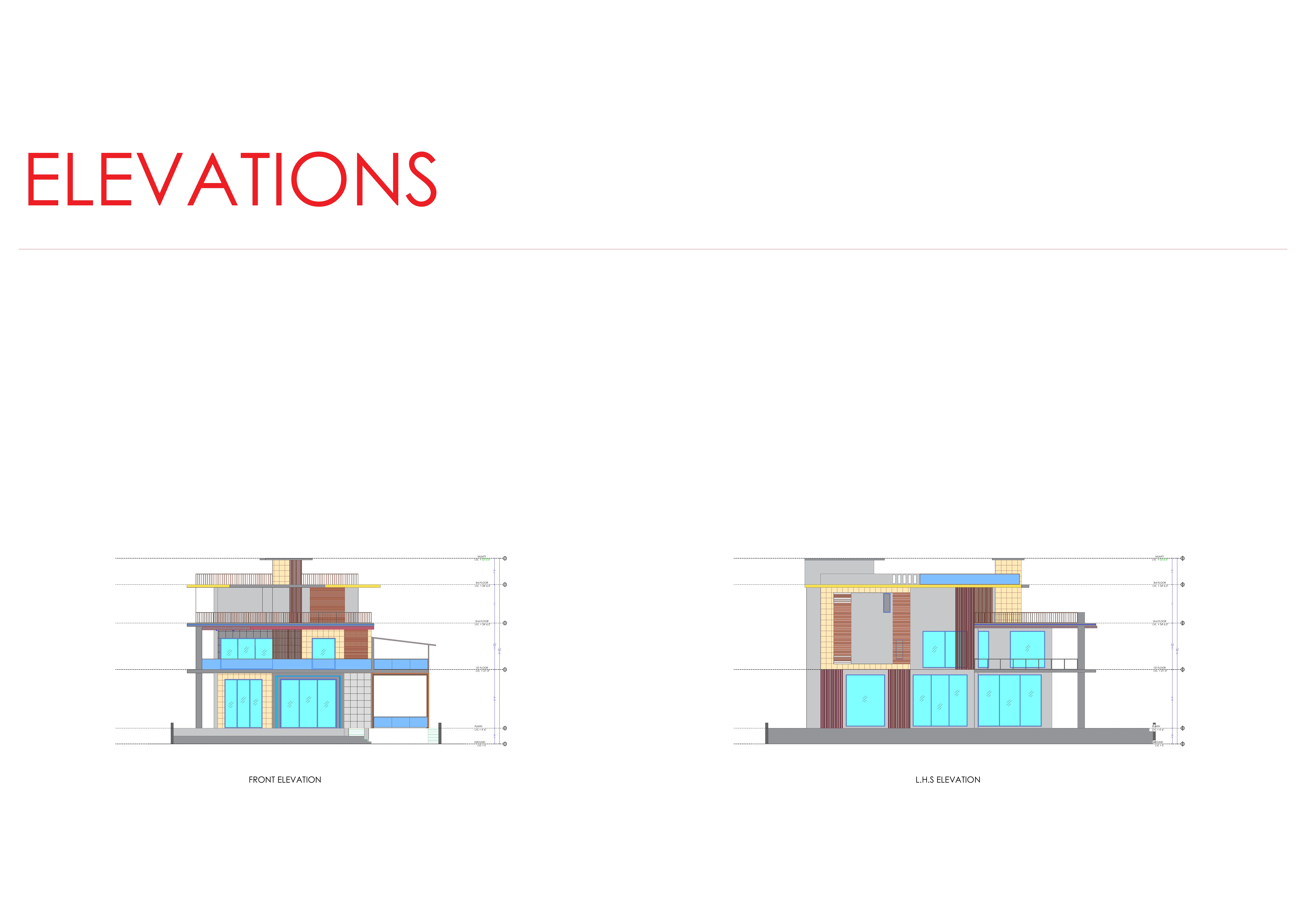

All four elevations composed as a coordinated set — material zones, opening rhythm and cornice datum.
- —Four elevations
- —Material zones
- —Opening rhythm
- —Cornice datum
— Chapter 02 · 04 sheets
Interior.
Wardrobe, tile and stair detail down to the mm.

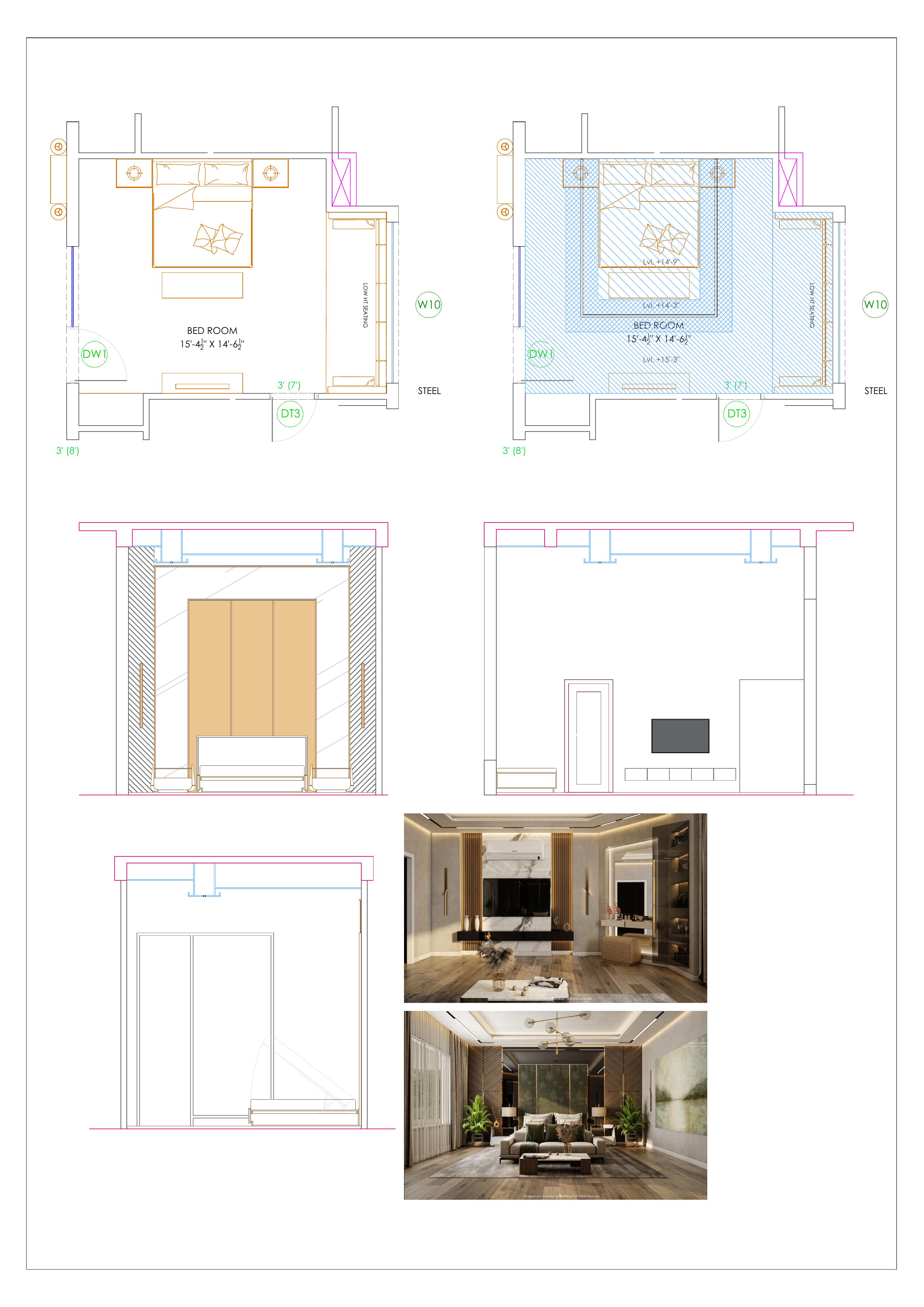

Bedroom interior sheet — wall elevations, wardrobe joinery, headboard detail and lighting.
- —Wall elevations
- —Wardrobe joinery
- —Headboard detail
- —Lighting layout

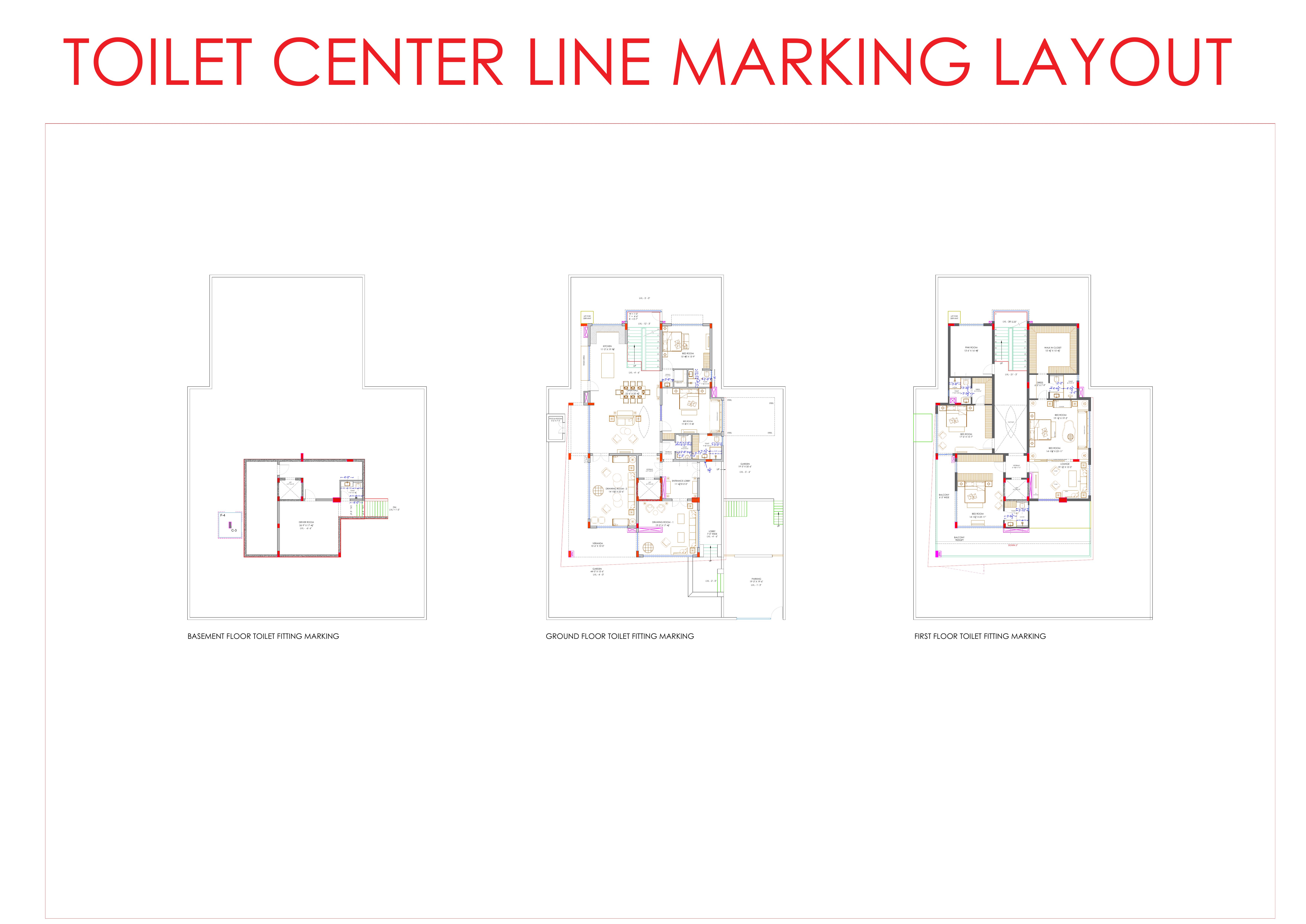

Toilet setting-out — centre lines for WC, wash basin and shower with waste points located.
- —WC / basin / shower centres
- —Waste points
- —Slope to drain
- —Finish reference

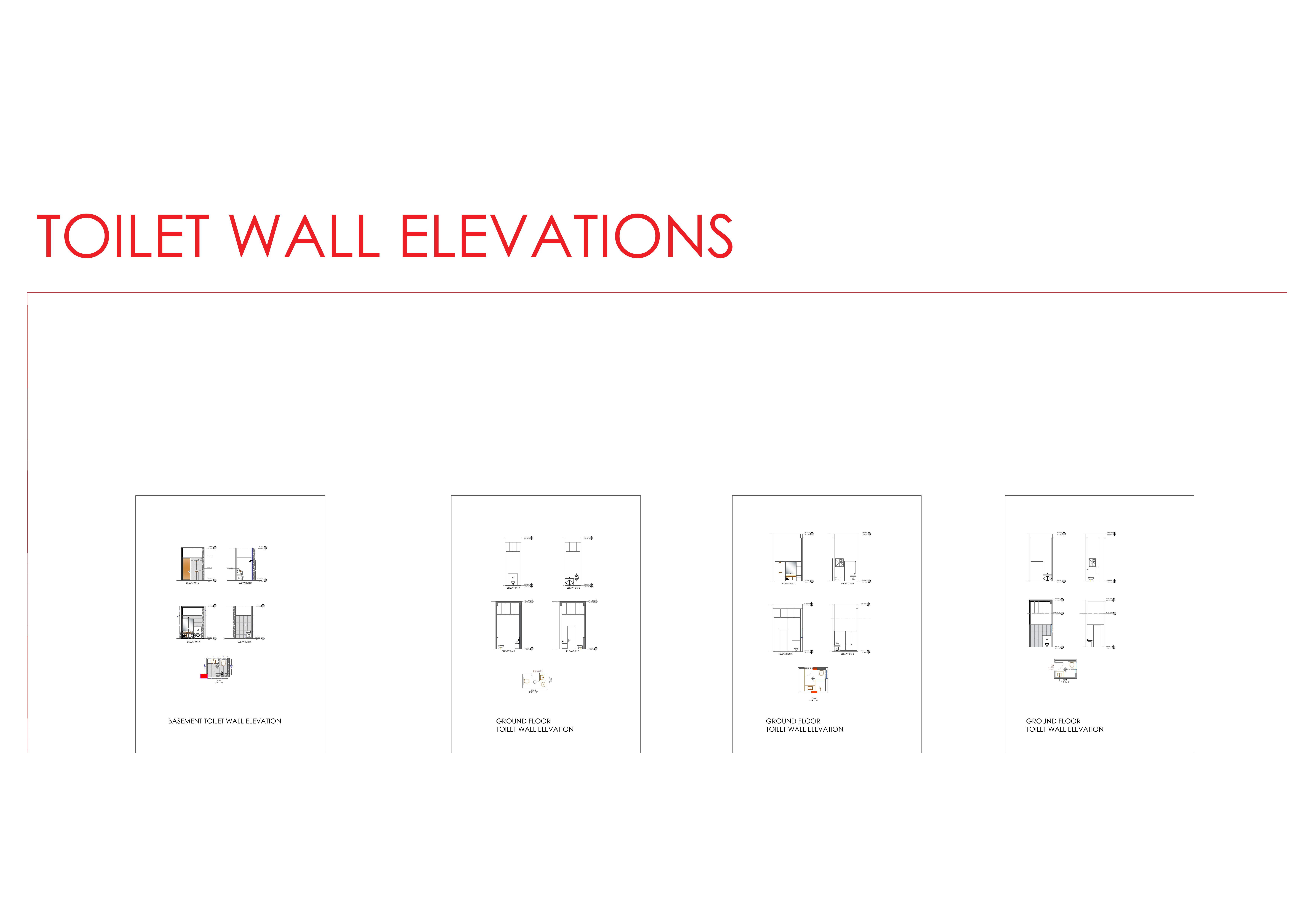

Tile pattern and fixture heights for every toilet wall — coordinated with the CL and marking sheet.
- —Tile pattern
- —Fixture heights
- —Accessory positions
- —Grout lines

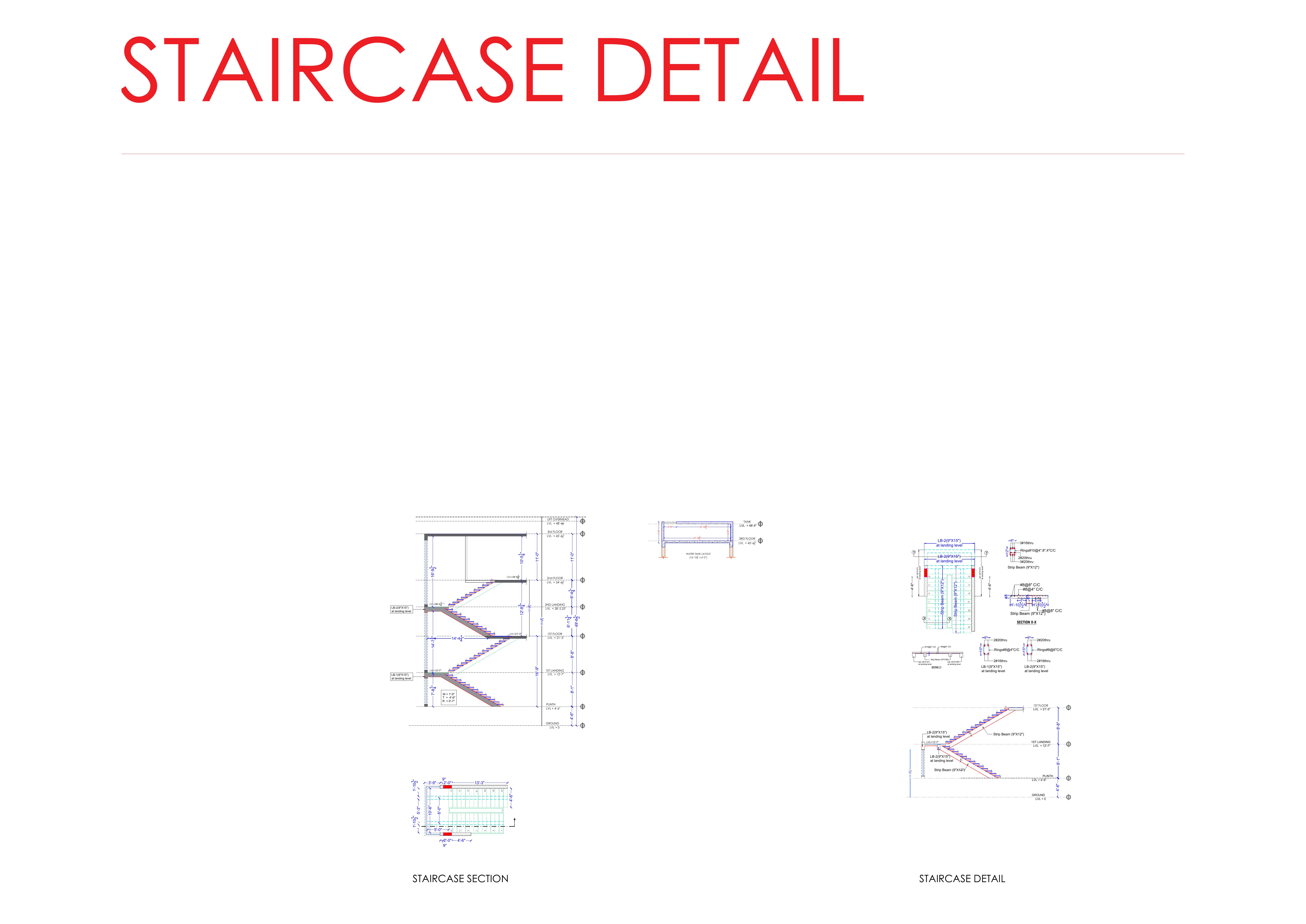

Full staircase — plan, section, tread / riser calculation and railing details.
- —Tread + riser calc
- —Section
- —Railing detail
- —Landing dims
— Chapter 03 · 07 sheets
Structure.
Foundation, framing and reinforcement schedules.

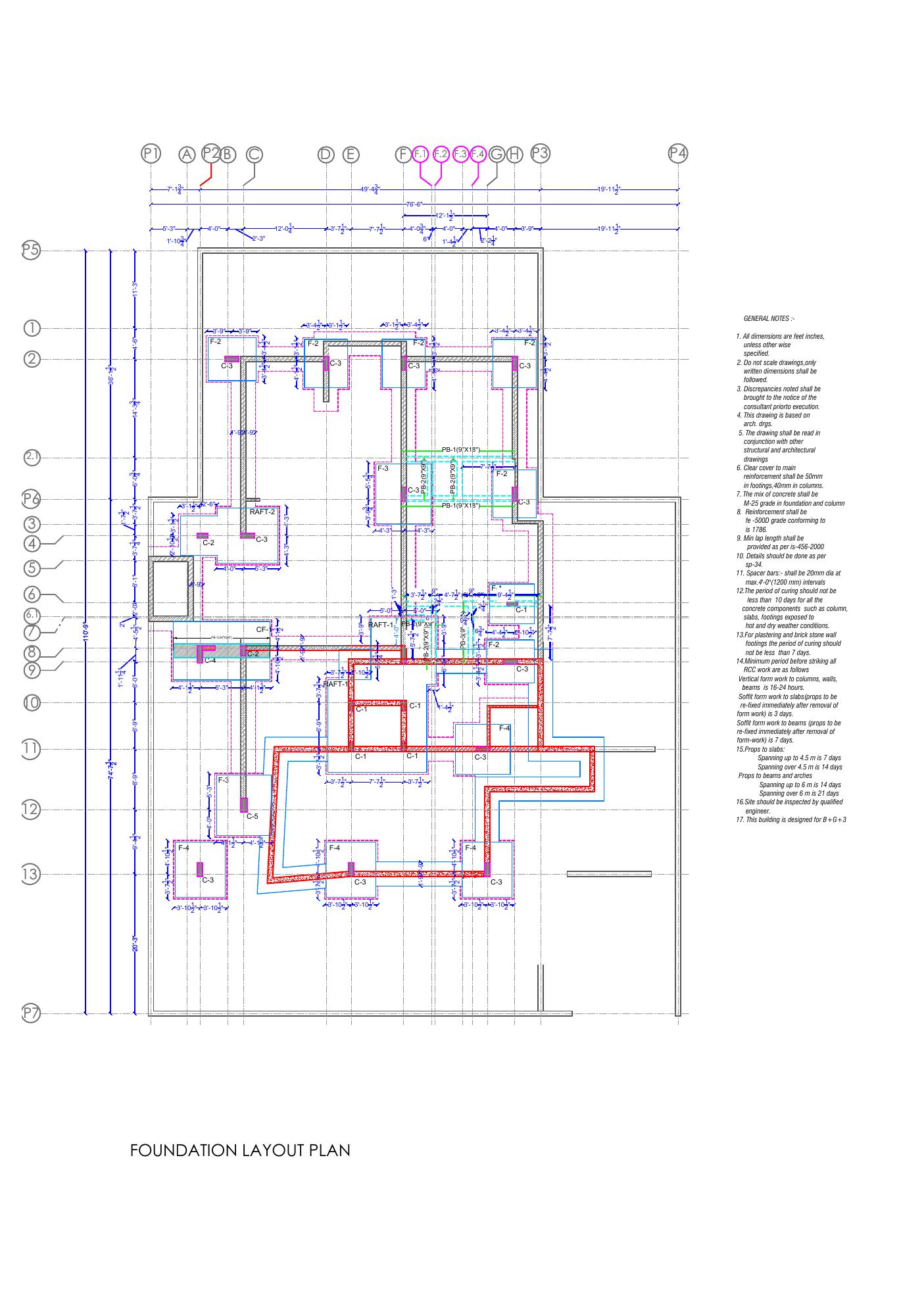

Coordinated foundation plan with pad footings, tie beams and raft zones.
- —Pad footings
- —Tie beams
- —Raft zones
- —Column positions

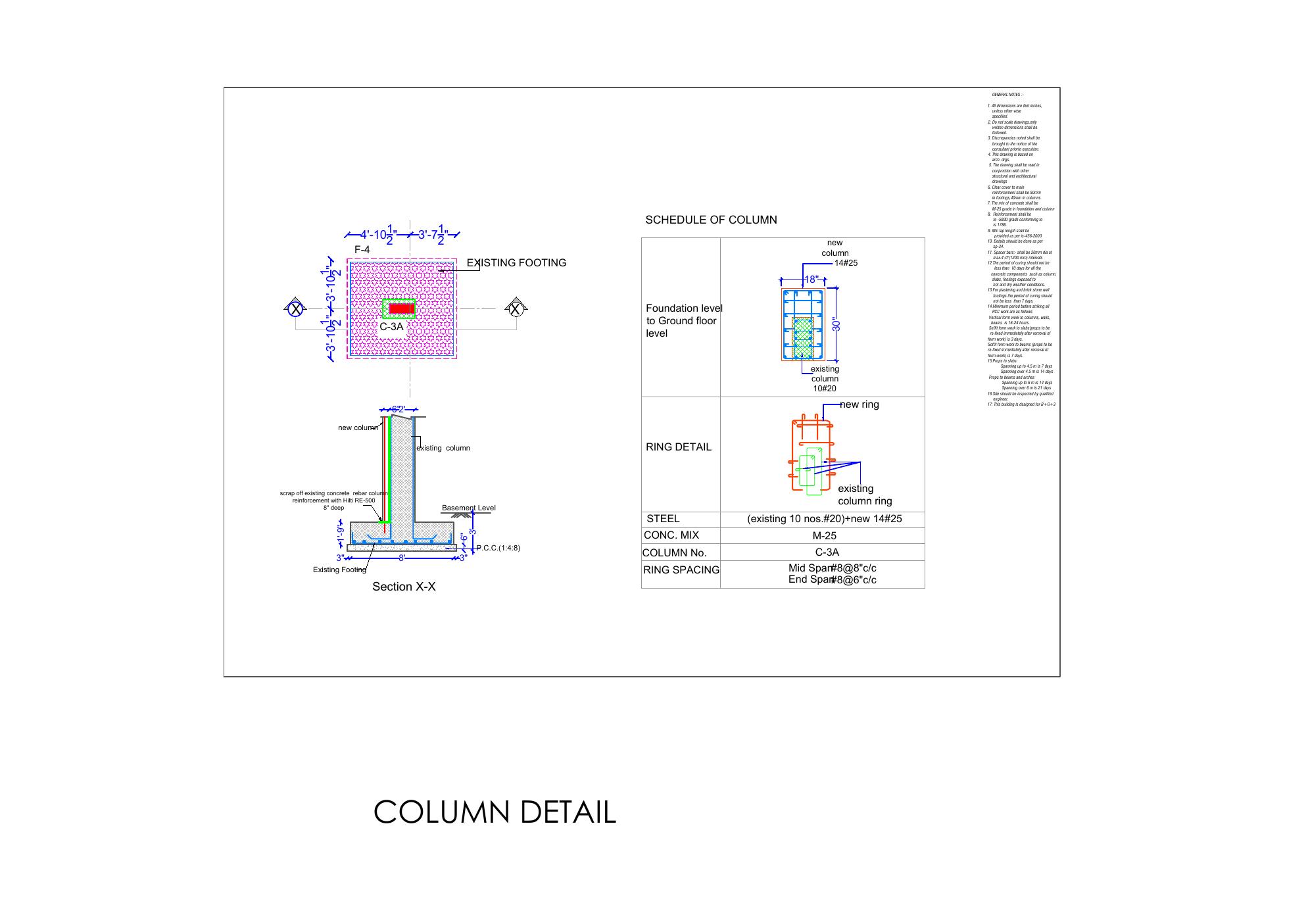

Column-to-footing detail — bar bending, cover blocks and lap lengths.
- —Bar bending
- —Cover blocks
- —Lap lengths
- —Starter bars

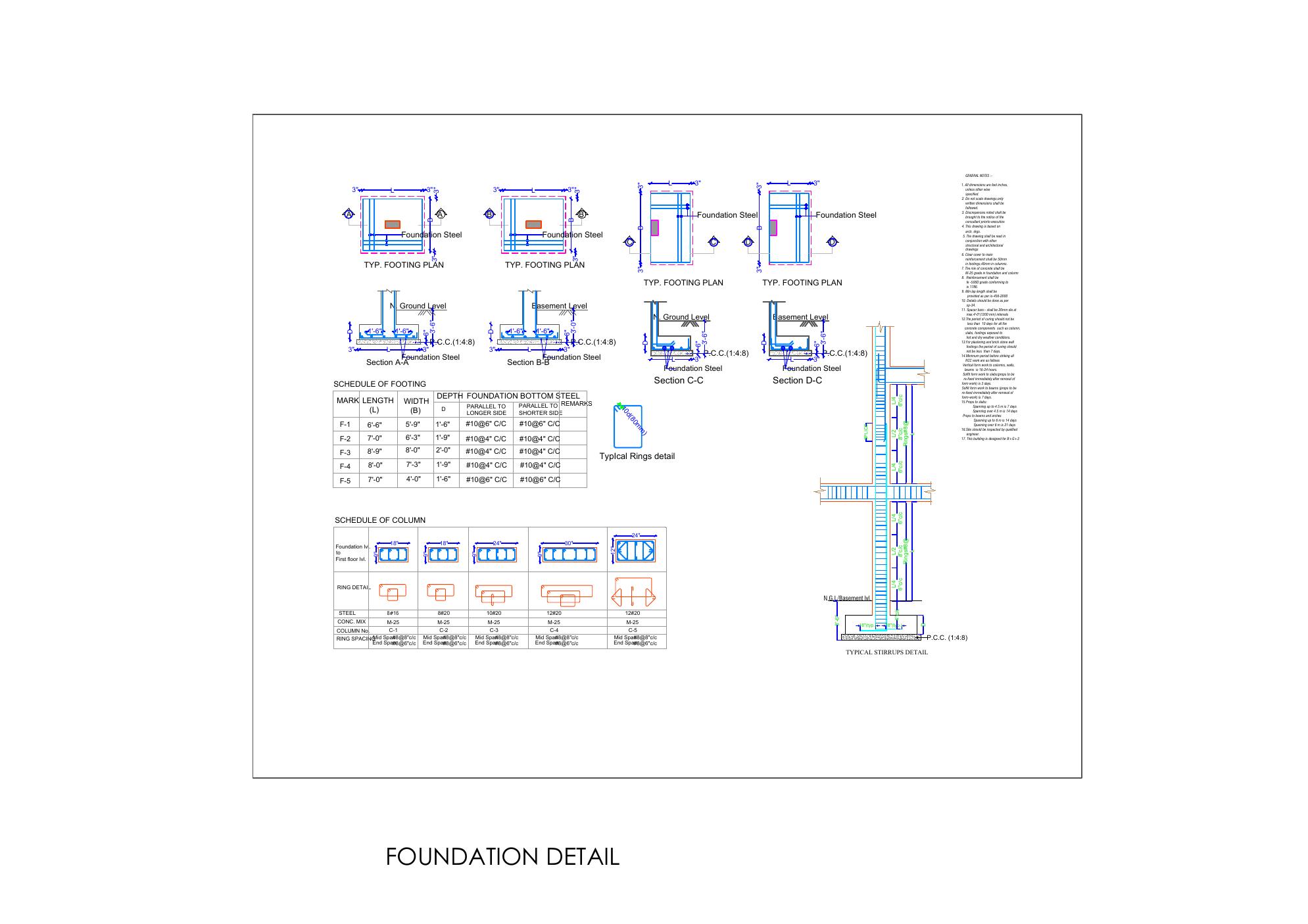

Footing schedule — sizes, reinforcement and quantities per pad and raft.
- —Pad sizes
- —Reinforcement
- —Quantities
- —Notes

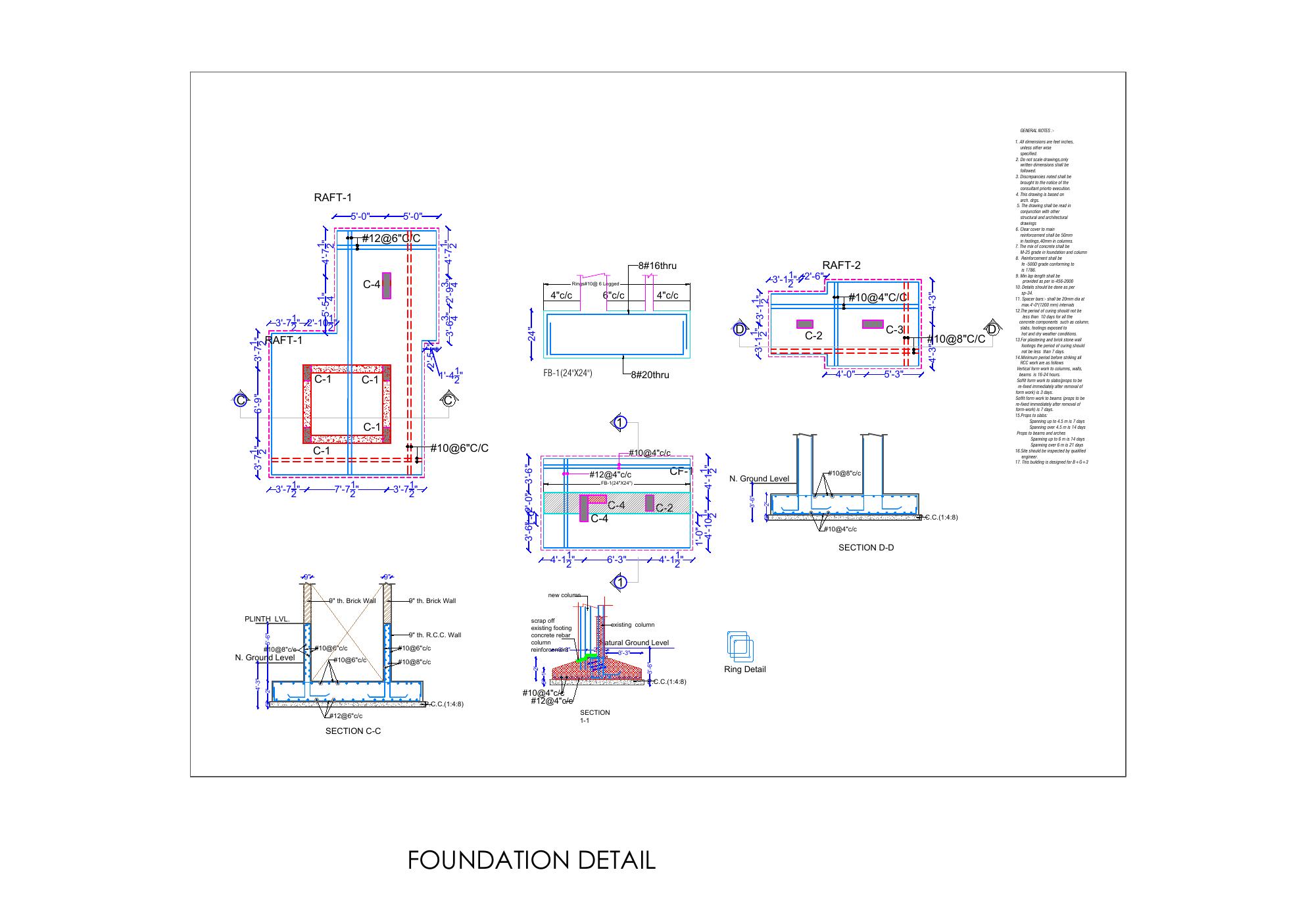

Combined raft slab drawing — top and bottom reinforcement with edge stiffeners.
- —Top / bottom mats
- —Edge stiffeners
- —Openings
- —Cover

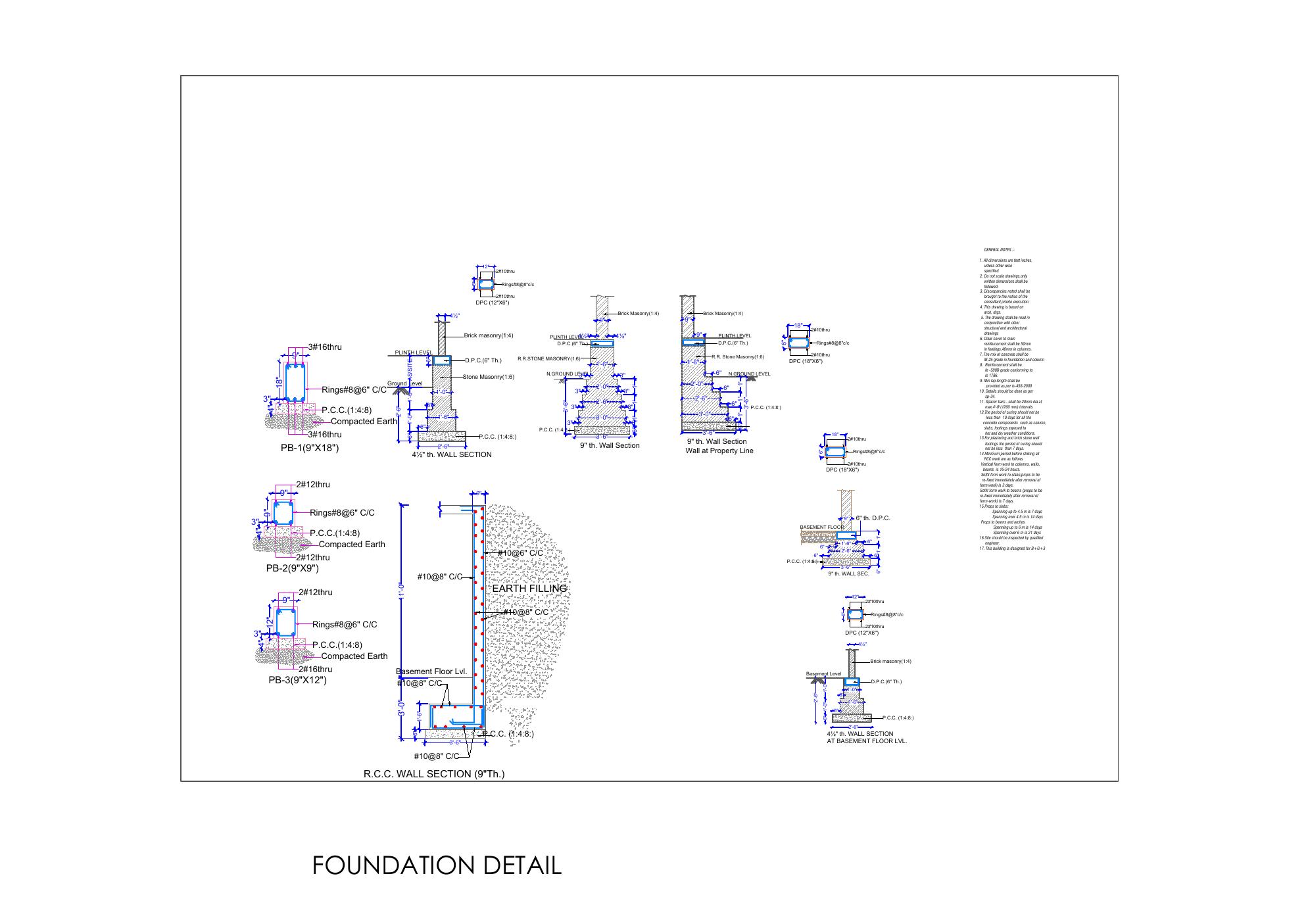

Retained-wall sections — reinforcement, drainage and waterproofing layers.
- —Reinforcement
- —Drainage
- —Waterproofing
- —Backfill

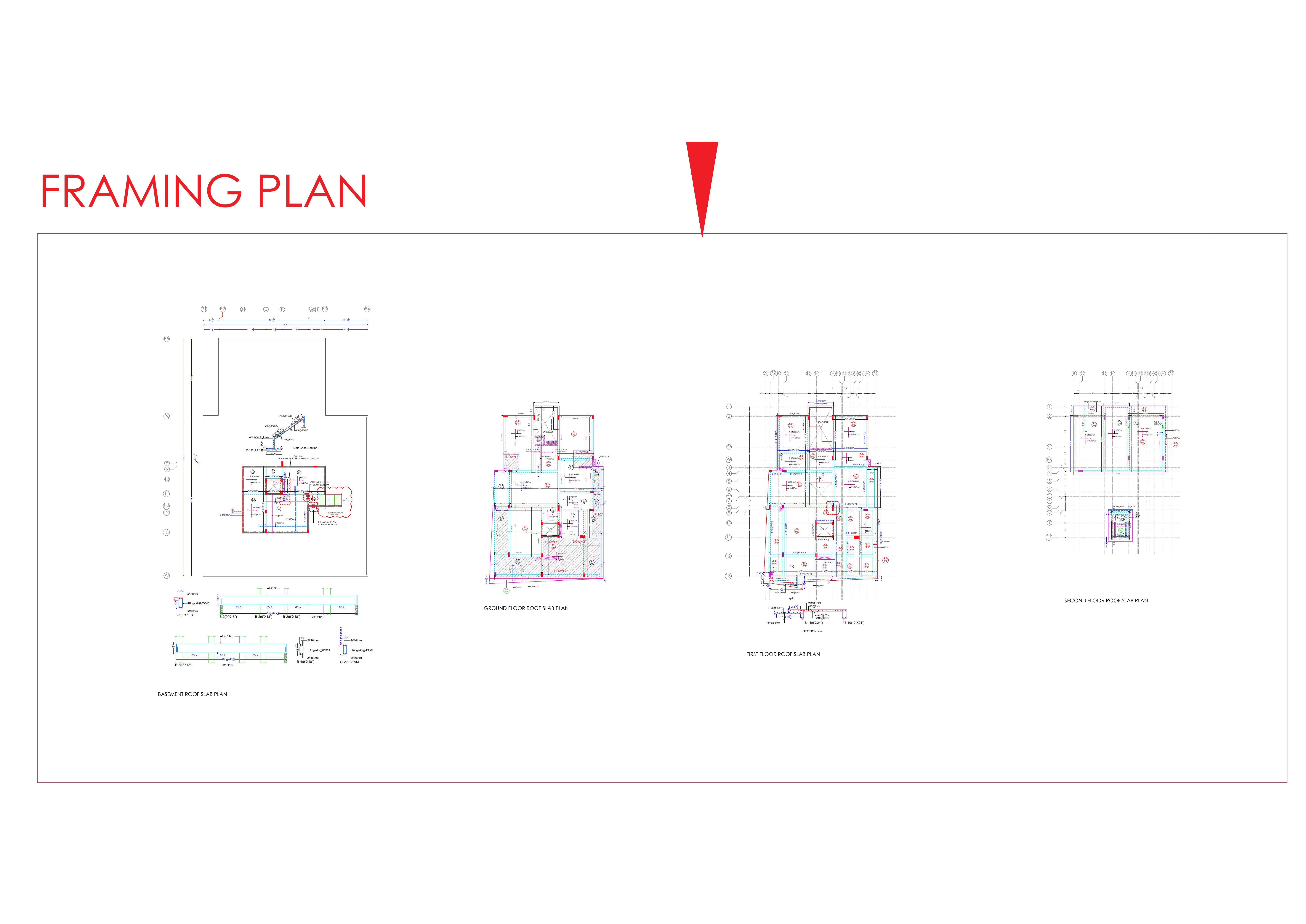

Beam-column framing layout for the villa — grid, sizes and spans.
- —Beam / column grid
- —Sizes
- —Spans
- —Notes

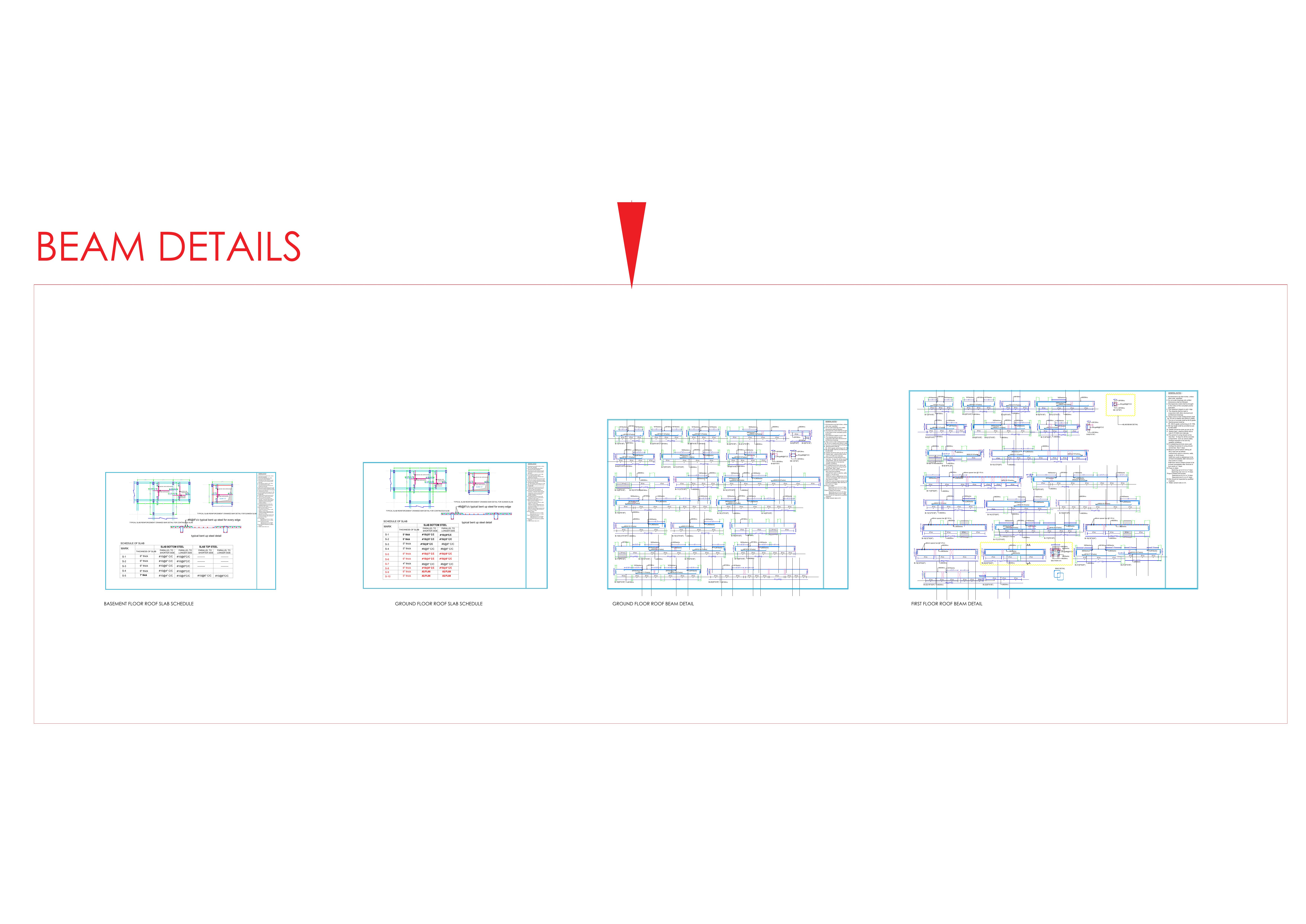

Beam reinforcement details — sections, bar callouts and stirrup spacing.
- —Sections
- —Bar callouts
- —Stirrup spacing
- —Splices
— Chapter 04 · 03 sheets
MEP.
Electrical, plumbing and HVAC — coordinated over the plans.

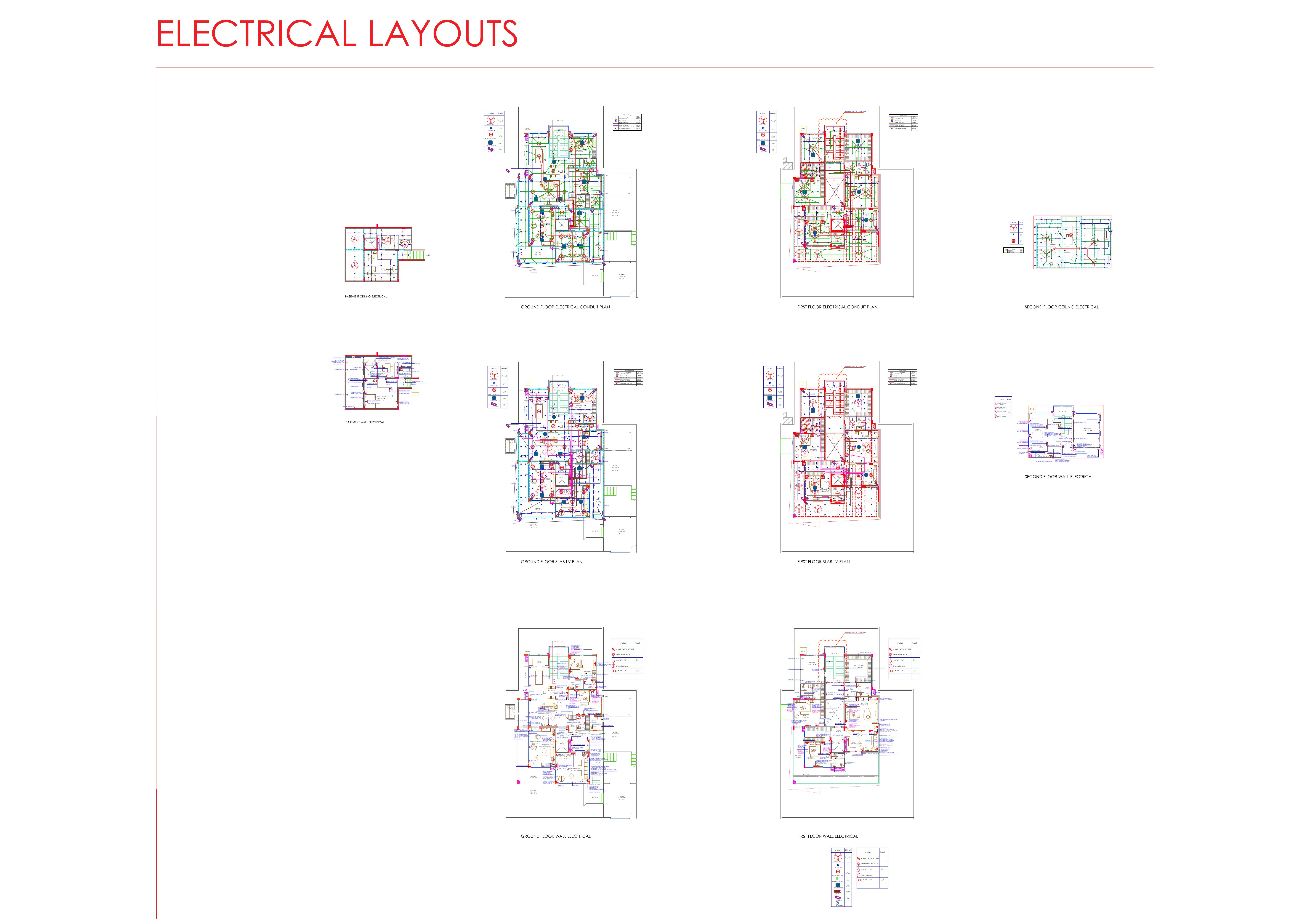

Full electrical set — sockets, lighting, switching and single-line distribution.
- —Sockets
- —Lighting
- —Switching
- —Distribution

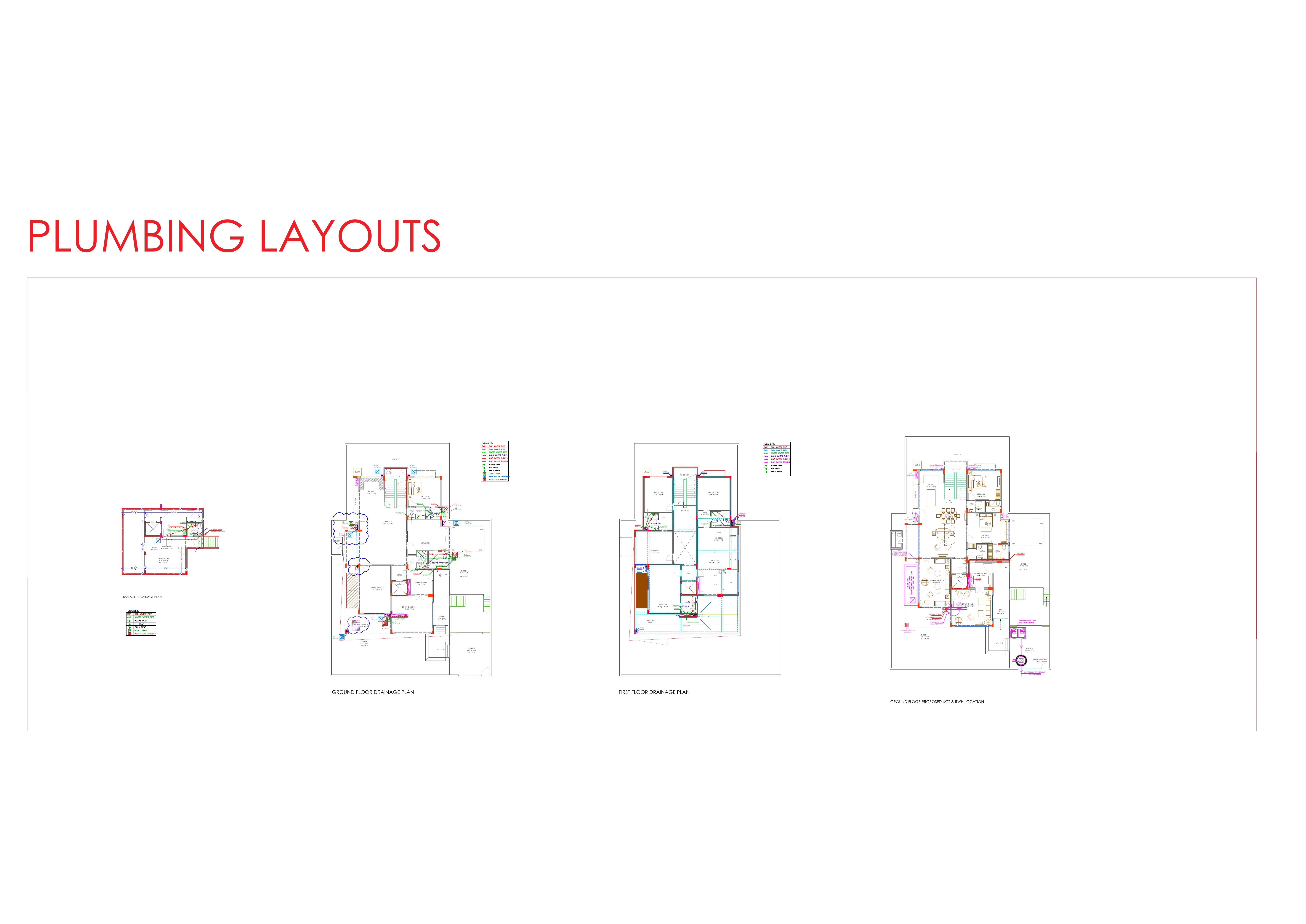

Cold / hot water, waste and vent lines with fixture connections floor by floor.
- —Cold + hot water
- —Waste + vent
- —Fixture connections
- —Isolation valves

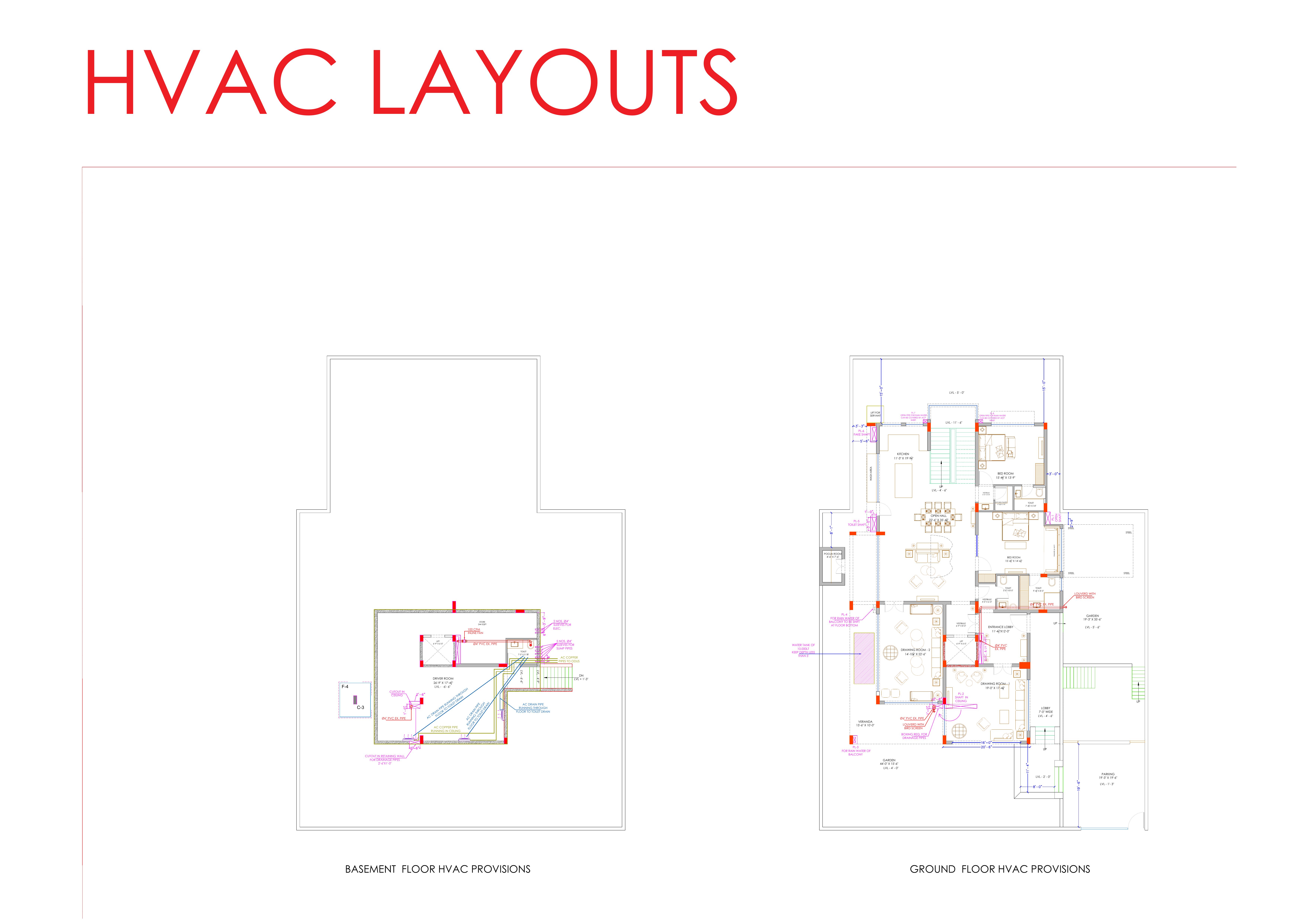

Split / cassette layout with duct runs, drain and toilet exhaust routing.
- —Indoor units
- —Duct runs
- —Drain
- —Toilet exhaust
