MEP · Working Drawing Set · G+2 Residence
Mechanical.Electrical.Plumbing.
A coordinated MEP set for a G+2 residence with mumty and terrace levels — 20 sheets in total. Scroll down; each sheet settles onto the drafting table.
About the project · 2024
A G+2 residence resolved as one MEP truth.
Plumbing, electrical and HVAC drawn against the same architectural grid so nothing clashes on site — twenty sheets, one coordination logic.
- Overview
- House 14 is a contemporary G+2 residence with a mumty and terrace. The MEP set was built as a coordination study — every service is drawn on the same architectural plan so risers, shafts and terminations agree before anything is priced.
- Scope
- Full MEP working documentation — plumbing (water supply, drainage, soil-waste-vent), electrical (lighting, power, DB schedule, load schematic) and HVAC (split placement, ODU zoning, drain and refrigerant routing) across all levels including the terrace and mumty.
- Delivery
- 20 sheets in total — 12 plumbing, 4 electrical, 4 HVAC — each drawn to 1:100 at A1 and stackable as a construction-doc set. Terrace tank and pump layout, toilet enlargements and DB schedule are on-sheet, not in an annexure.
- Notes
- The reason this set works on site is that the shafts are chosen once — plumbing risers, electrical conduits and refrigerant lines all use the same vertical geometry, so nothing has to be re-routed at slab level. The combined services check happens on paper, not in RCC.
— Chapter 01 · 12 sheets
Plumbing.
Water in. Waste out. Rain diverted. Cold water, waste, soil, rainwater and rainwater-harvesting. Every diameter, invert level and chamber size annotated.
— Chapter 02 · 04 sheets
Electrical.
Power, lighting, and site distribution. Sockets, lighting circuits, switching and site-level distribution. One sheet per level plus an external site layout.
— Chapter 03 · 04 sheets
HVAC.
Comfort routed floor by floor. Split & cassette units, ducting, propeller fans and toilet exhaust — every indoor unit, duct run and exhaust route.
— Full Register
Every sheet, indexed.
| No. | Discipline | Title | Open |
|---|---|---|---|

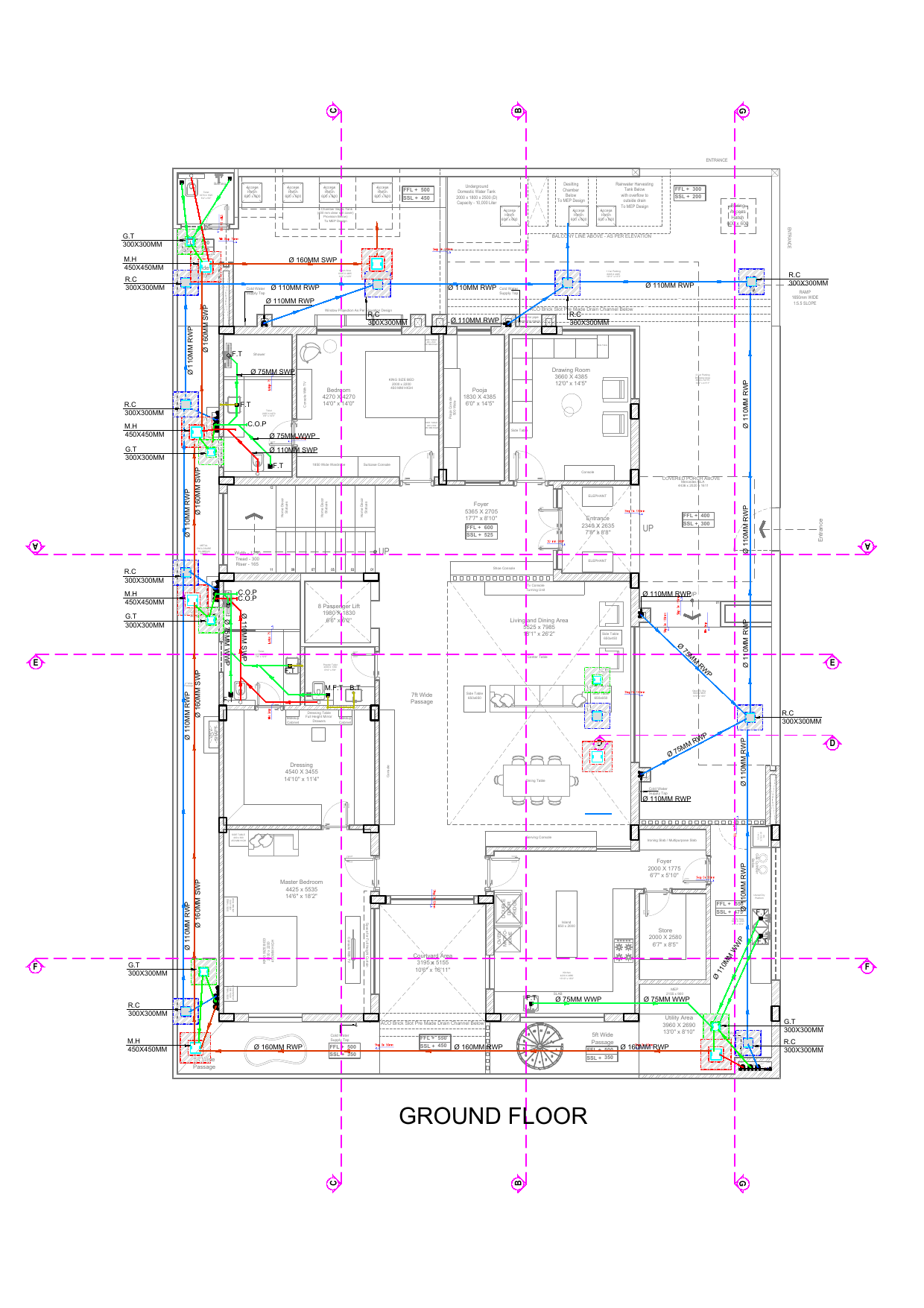

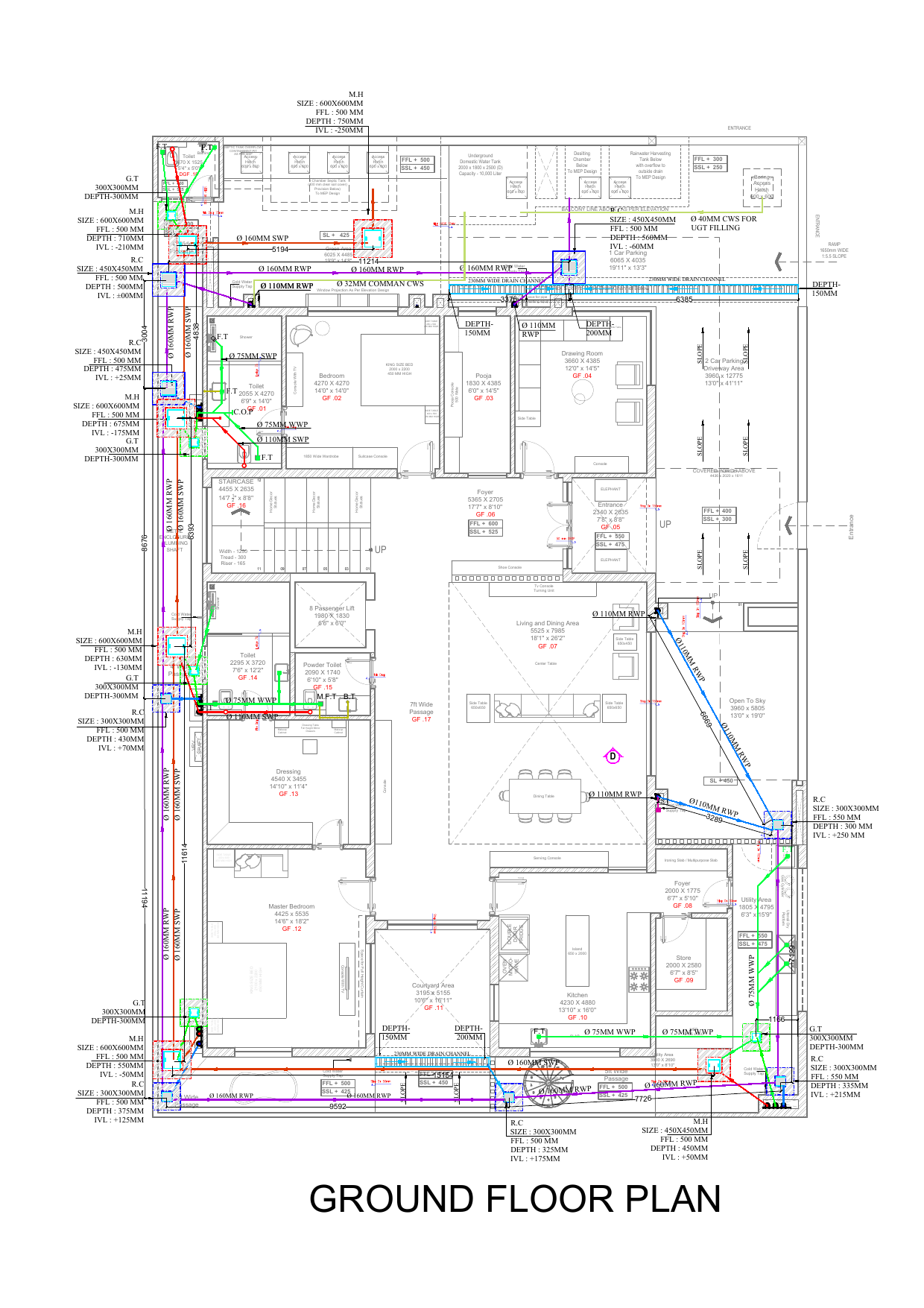

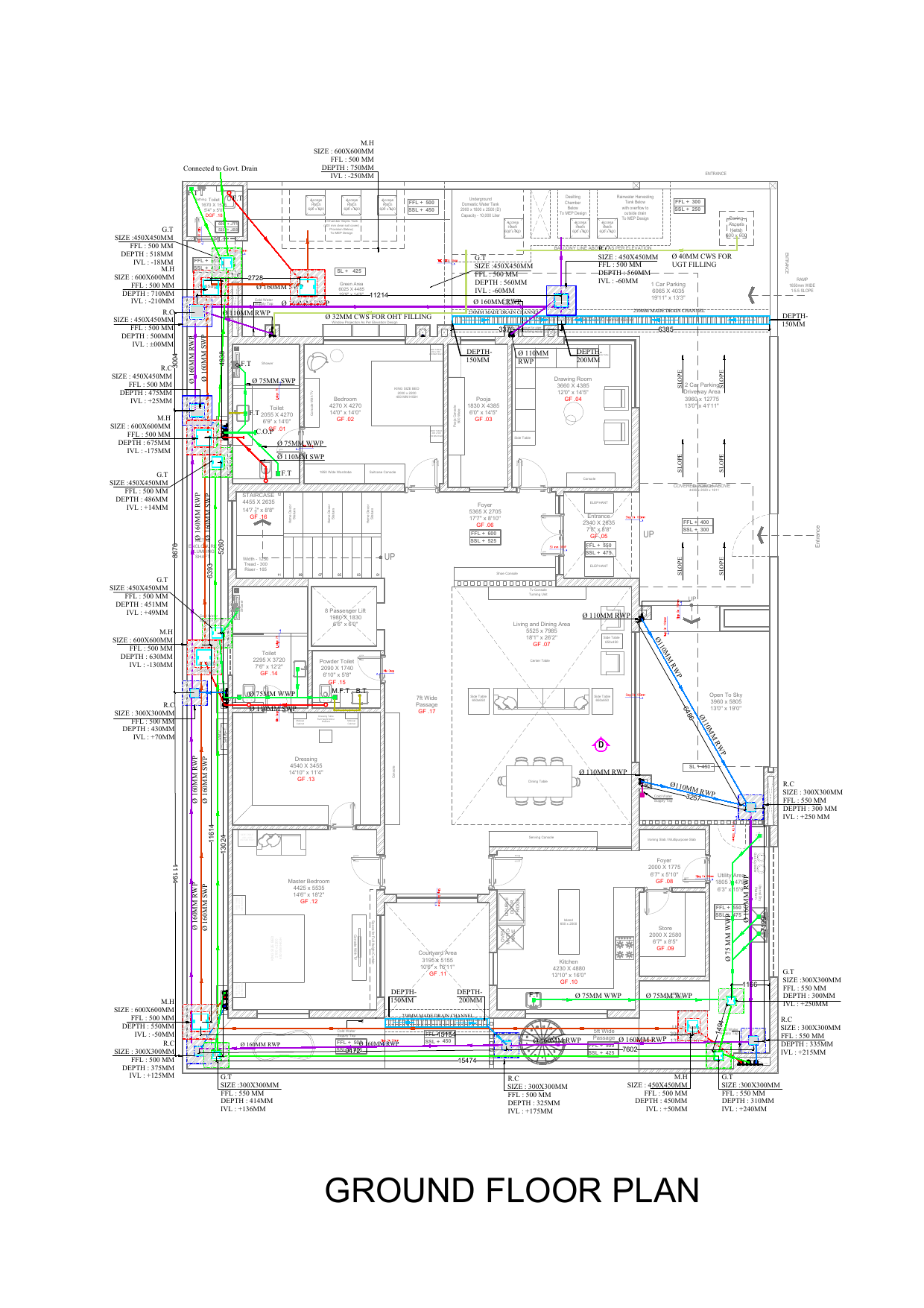

| P-01 | Plumbing | Ground Floor · Plumbing Layout | |

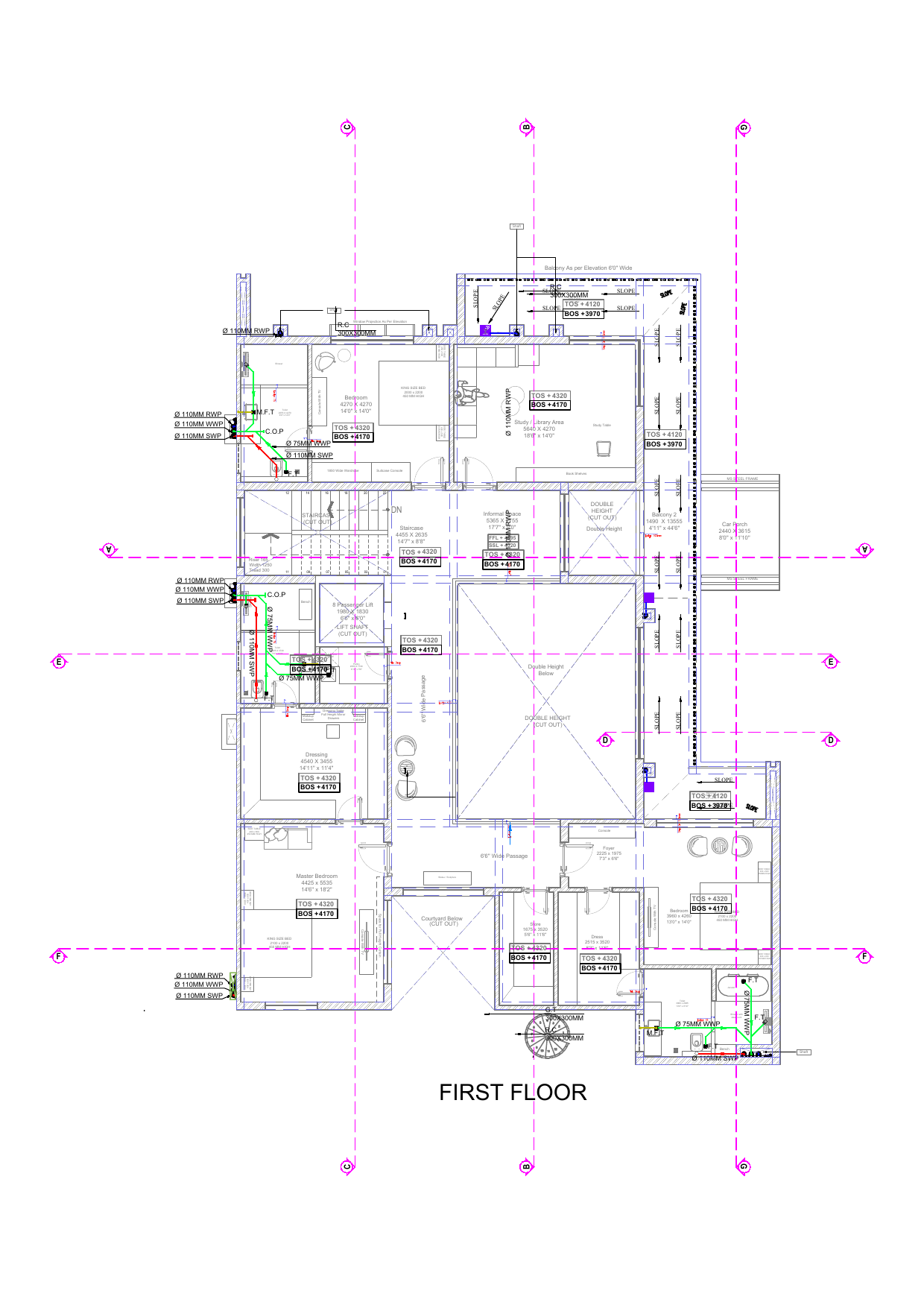

| P-02 | Plumbing | First Floor · Plumbing Layout | |
| P-03 | Plumbing | Second Floor · Plumbing Layout | |

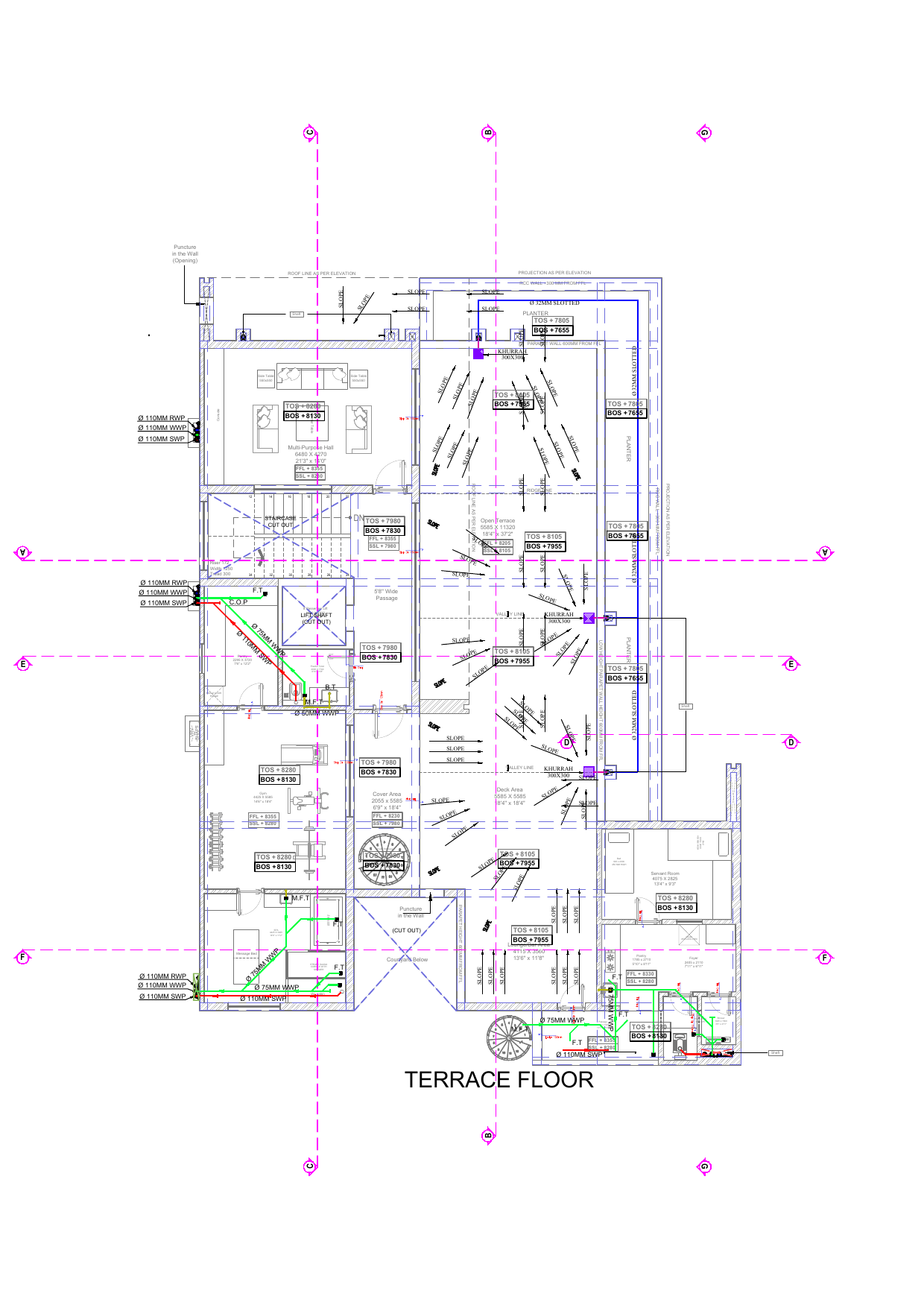

| P-04 | Plumbing | Terrace · Plumbing Layout | |
| P-05 | Plumbing | Mumty Level · Plumbing Layout | |

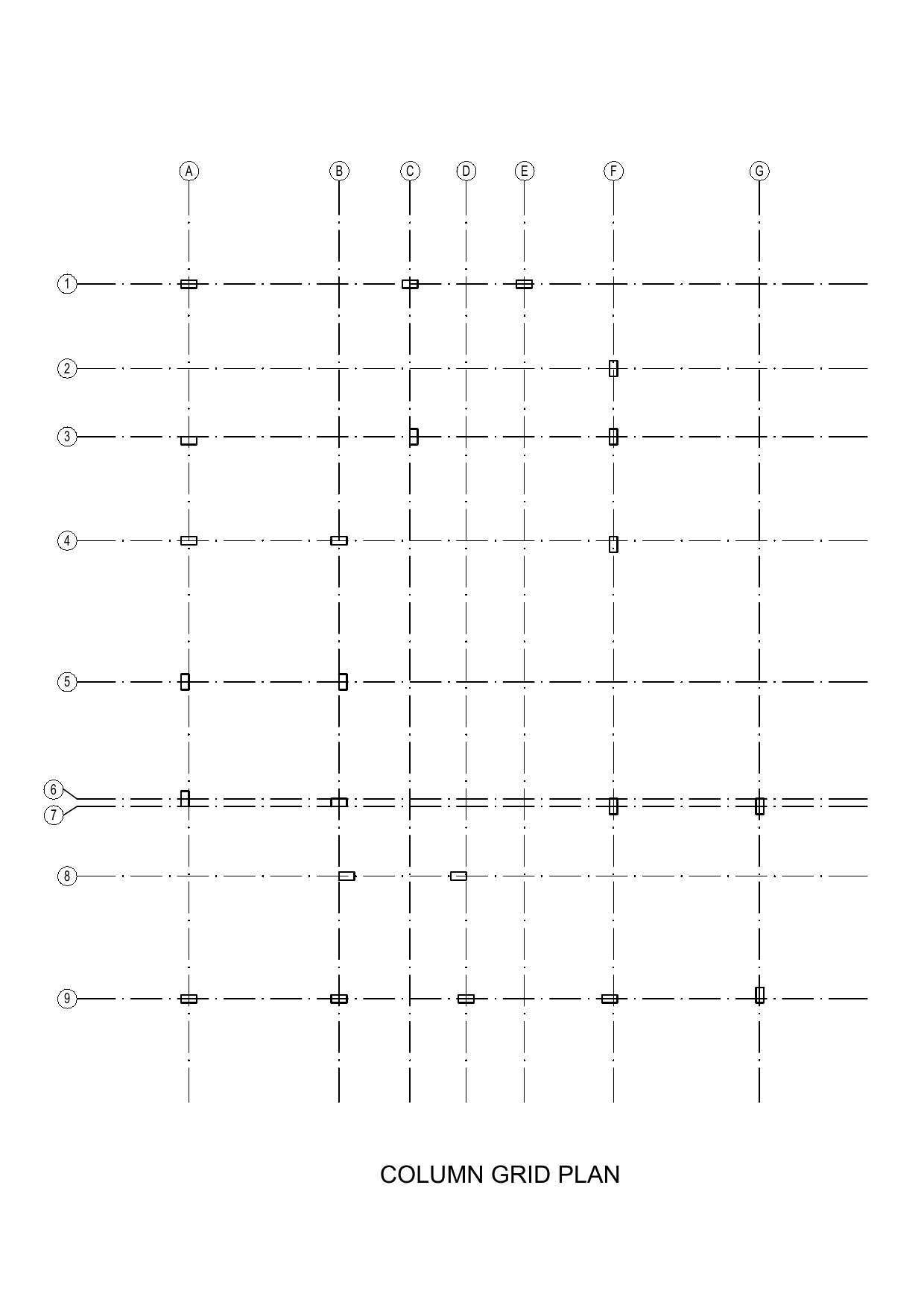

| P-06 | Plumbing | Water Supply · Schematic | |

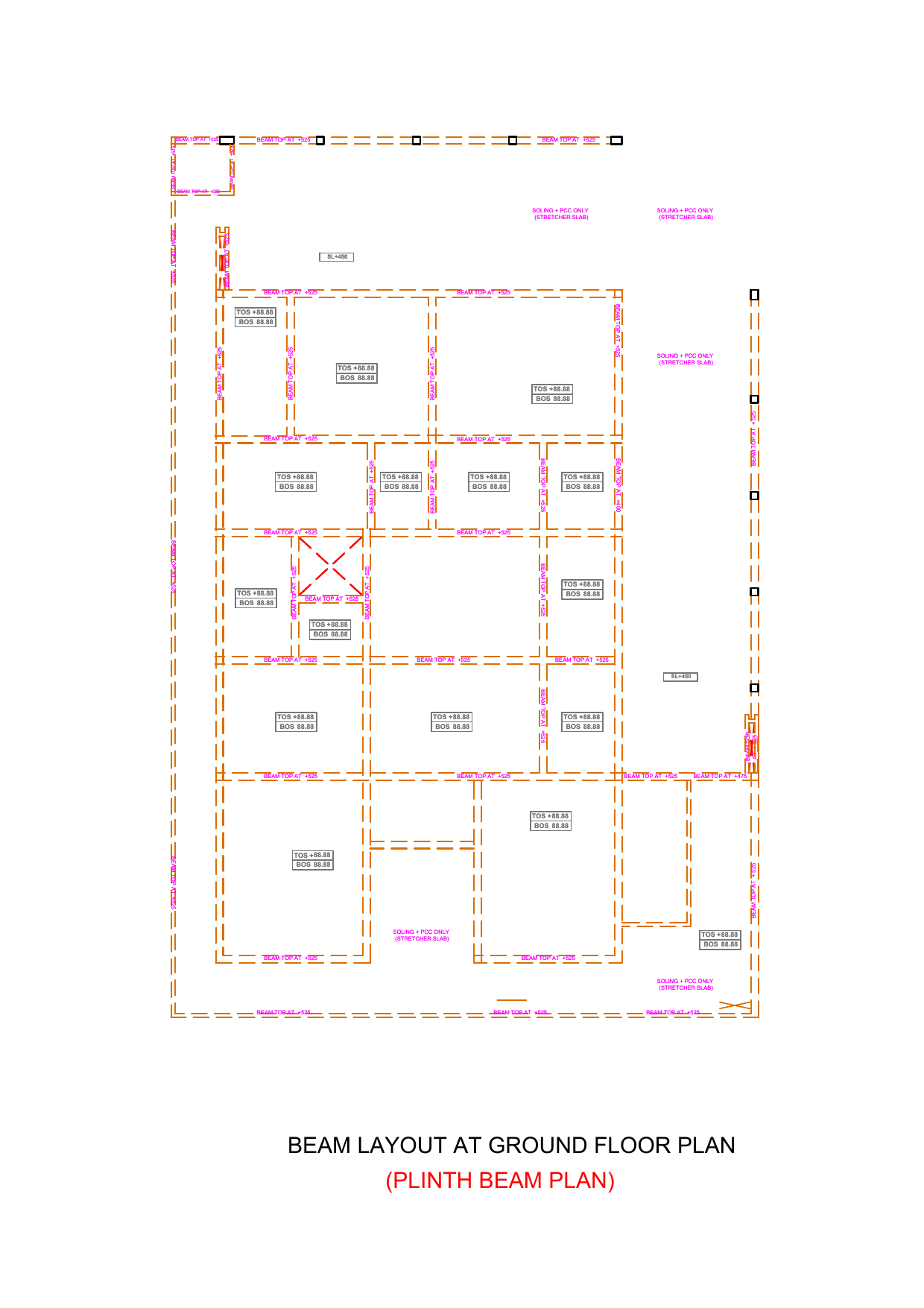

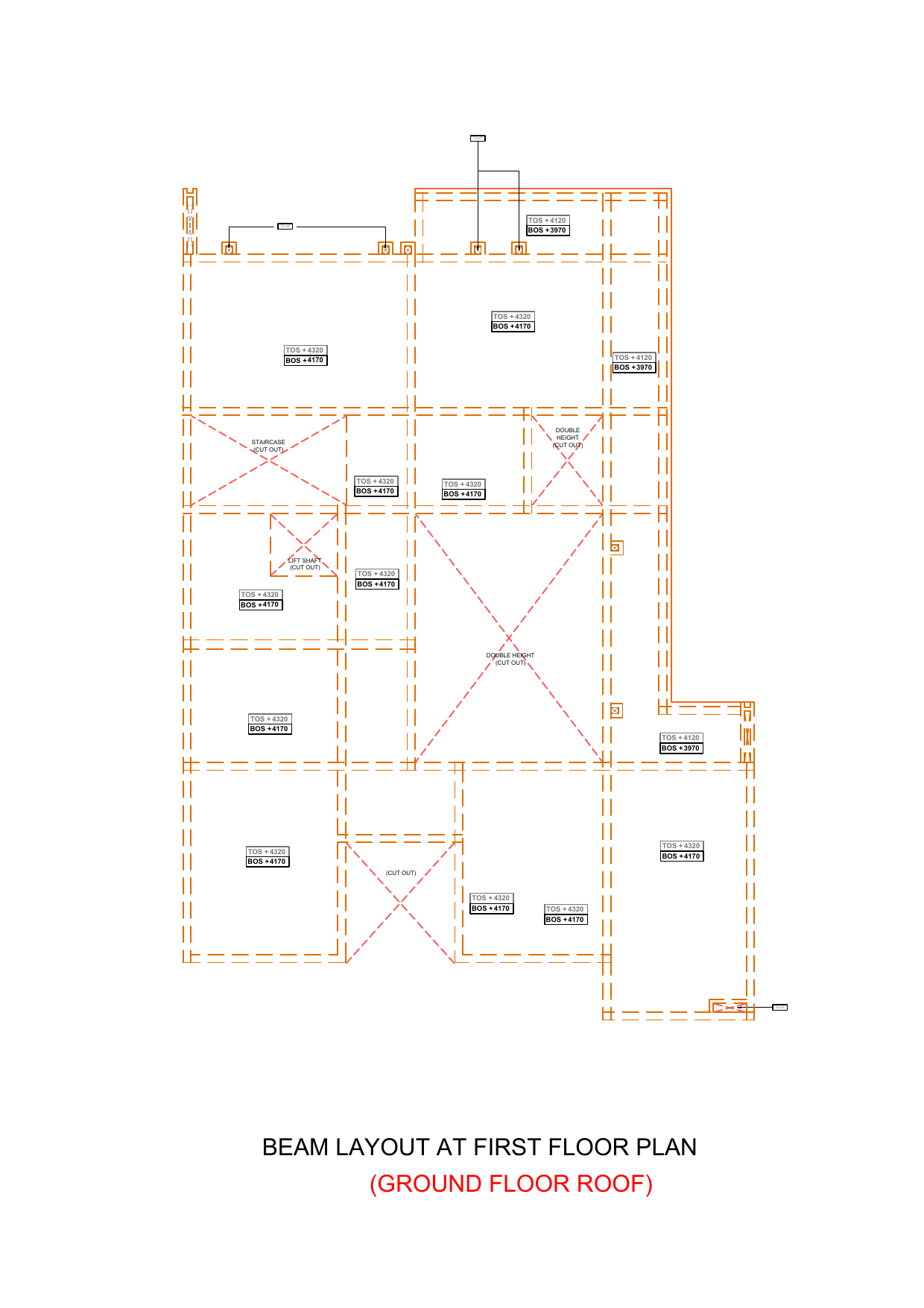

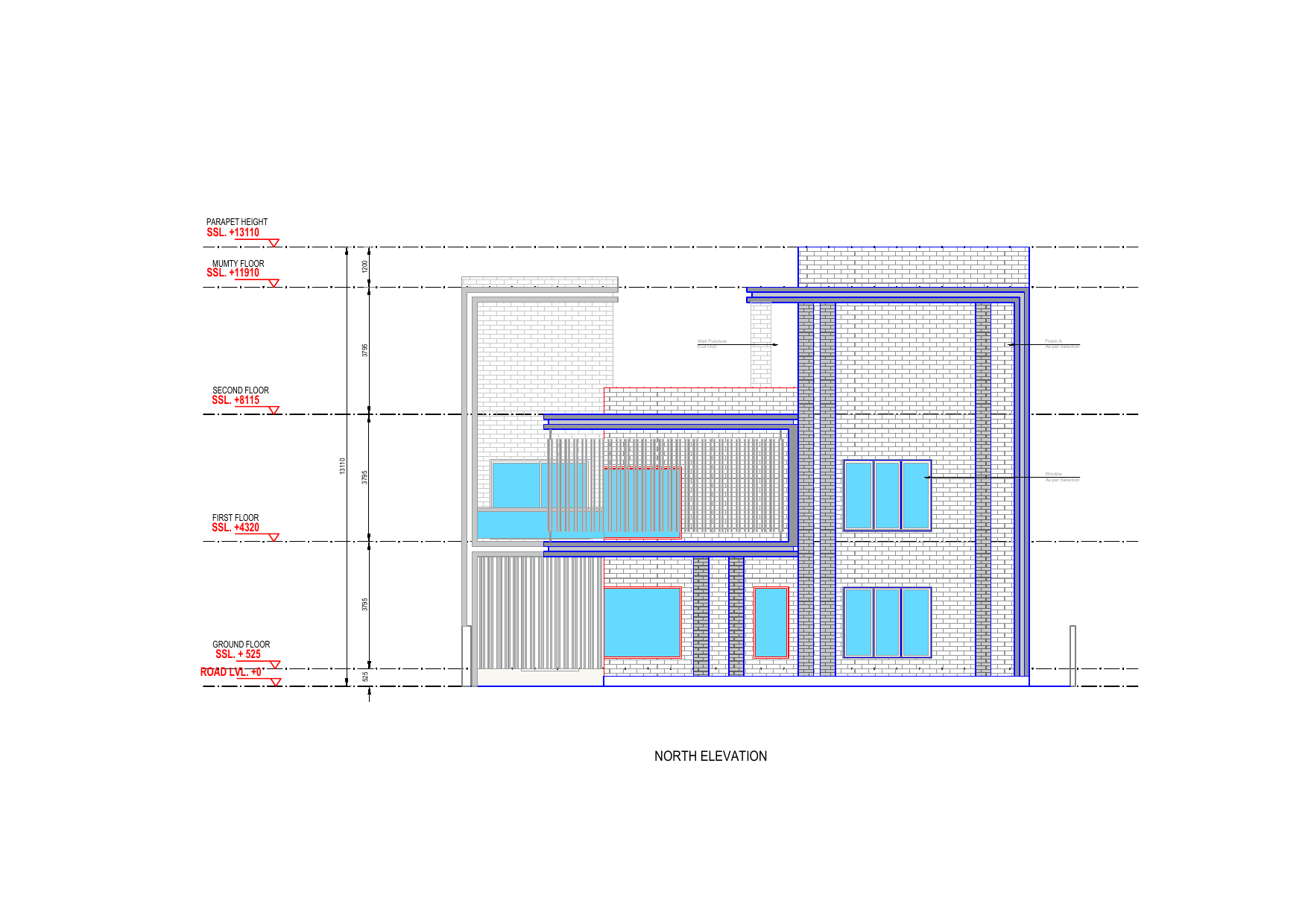

| P-07 | Plumbing | Drainage · Schematic | |
| P-08 | Plumbing | Rainwater · Schematic | |
| P-09 | Plumbing | Toilet Details · Sheet 1 | |

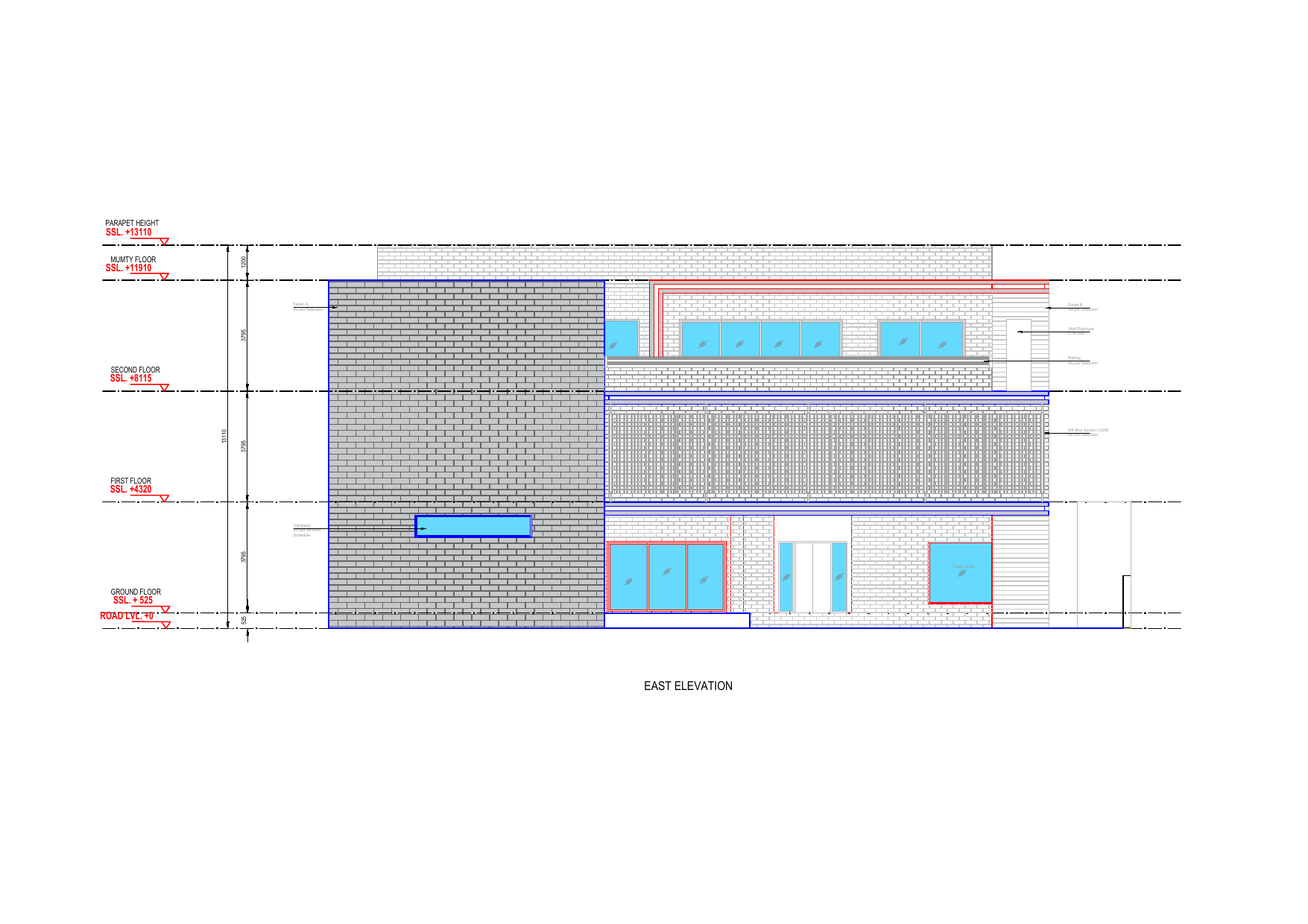

| P-10 | Plumbing | Toilet Details · Sheet 2 | |

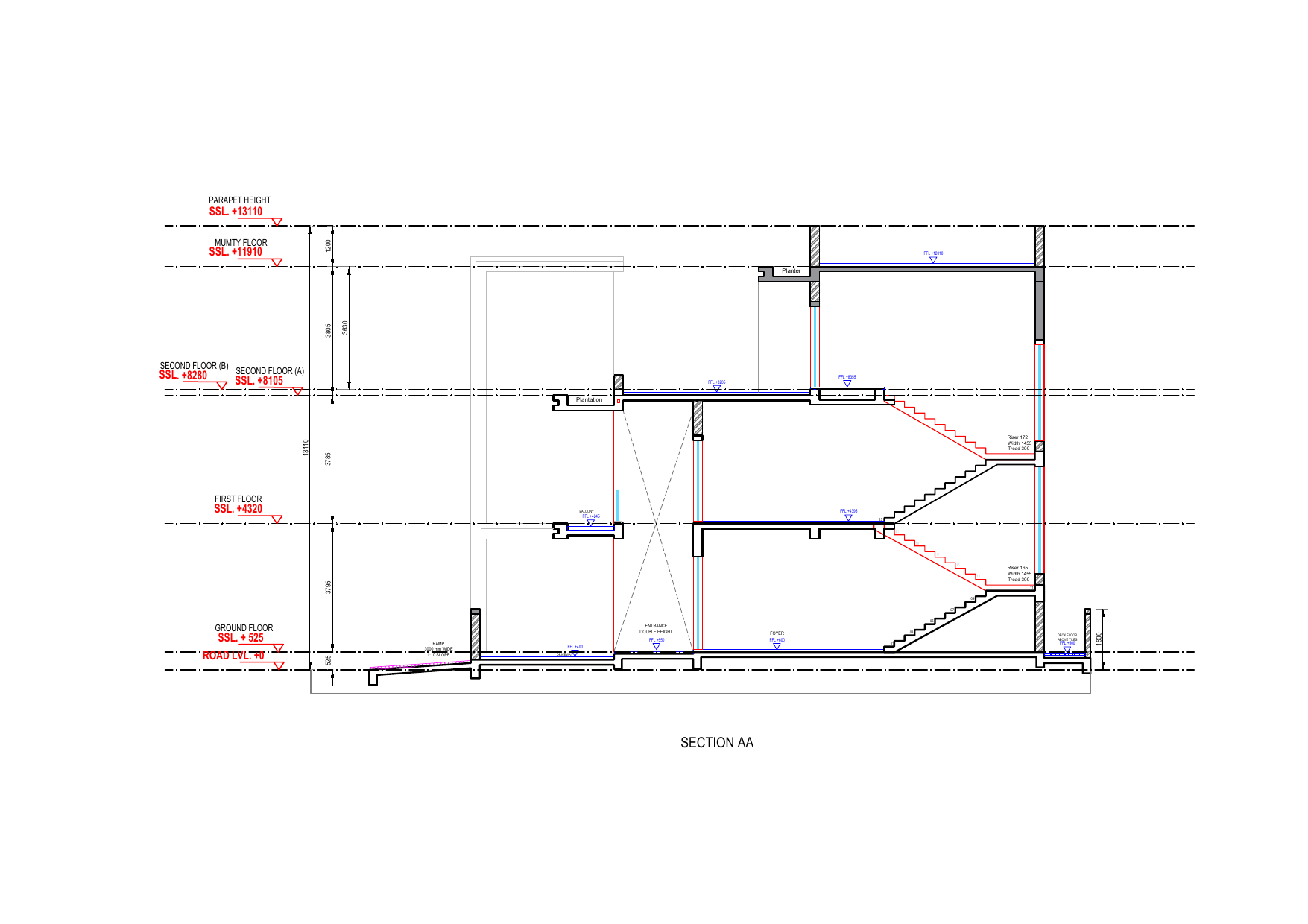

| P-11 | Plumbing | Fixture Schedule & Legend | |

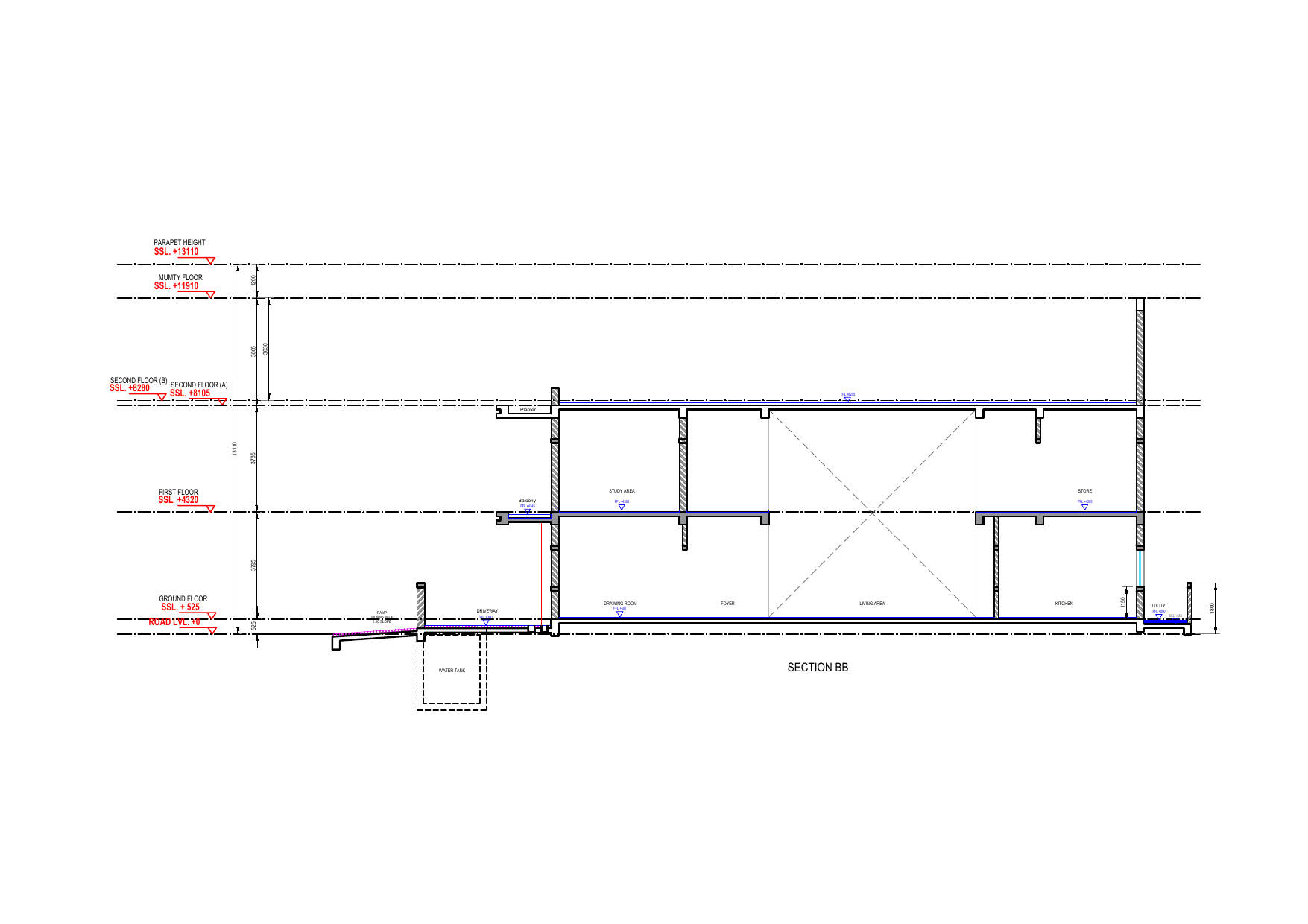

| P-12 | Plumbing | Chamber & Pit Details | |

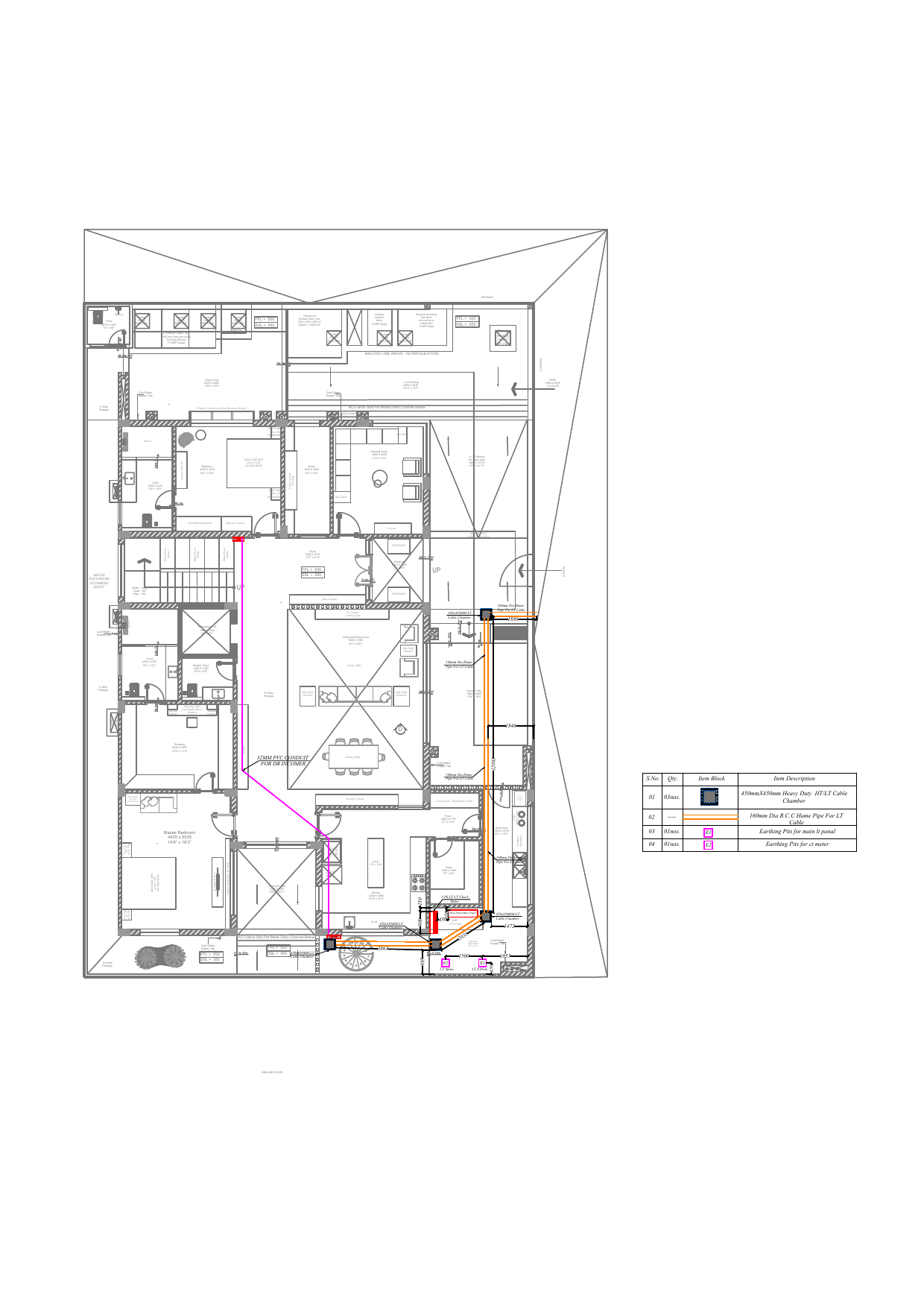

| E-01 | Electrical | External Plan · Site Electrical | |

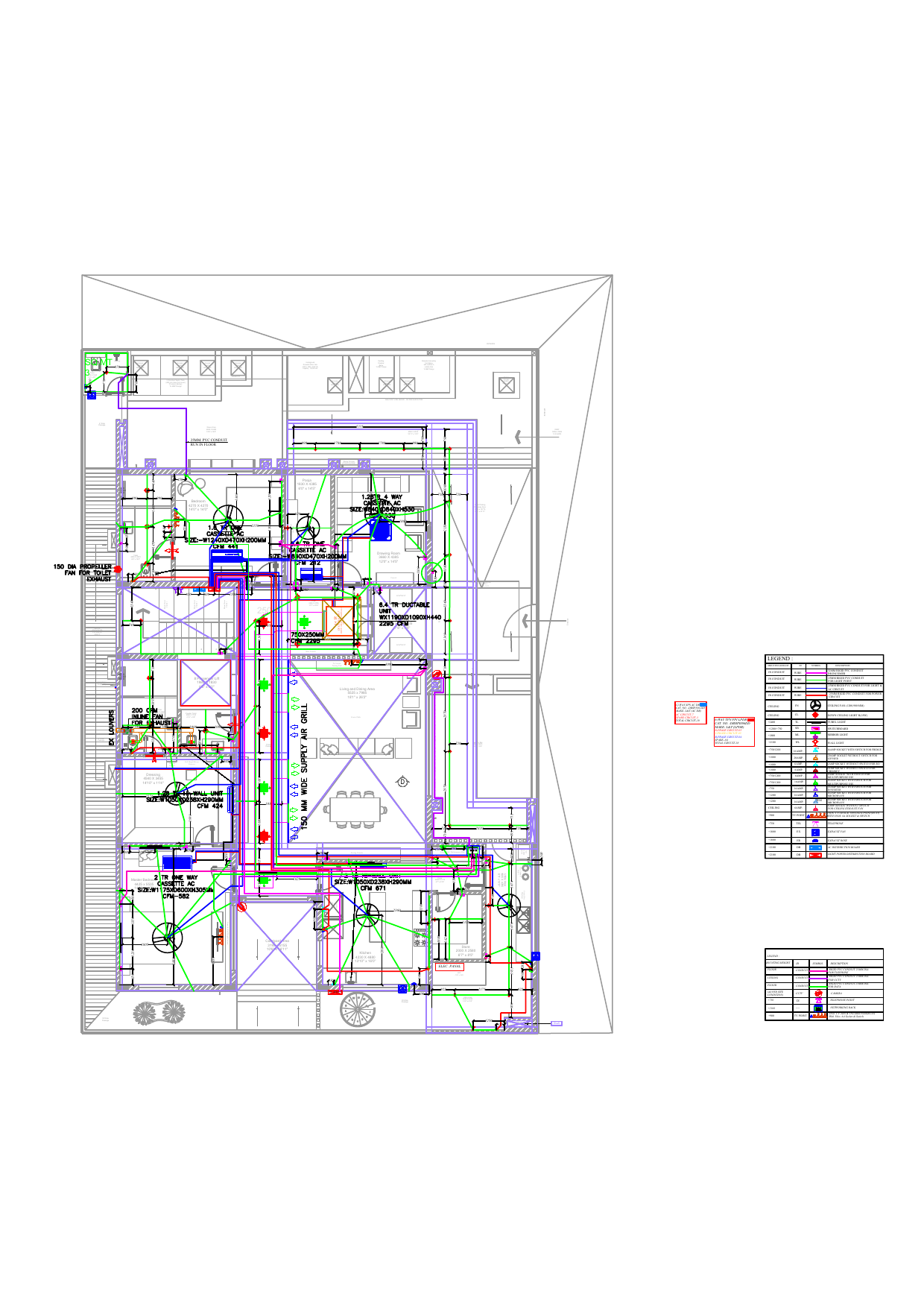

| E-02 | Electrical | Ground Floor · Power & Lighting | |

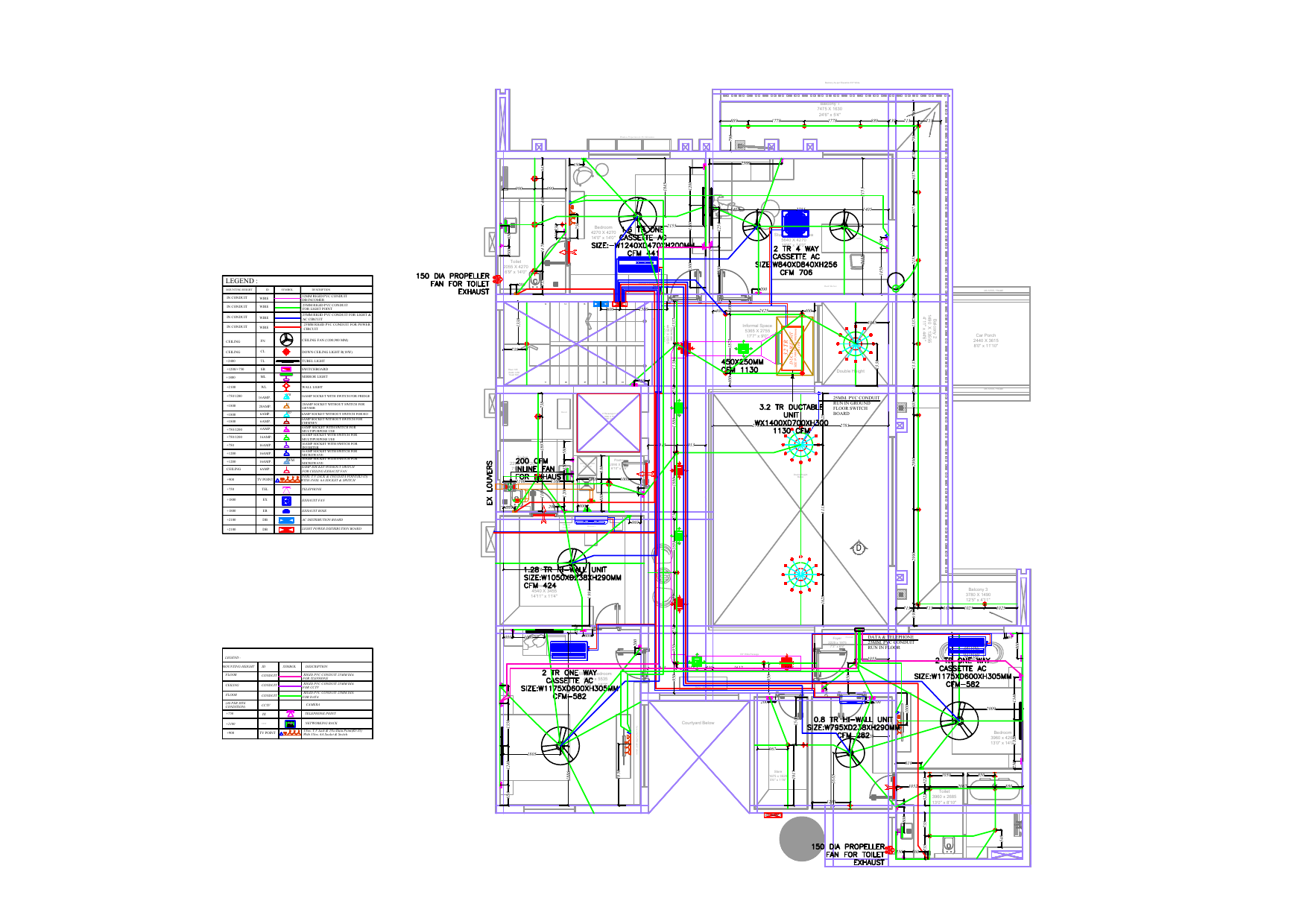

| E-03 | Electrical | First Floor · Power & Lighting | |

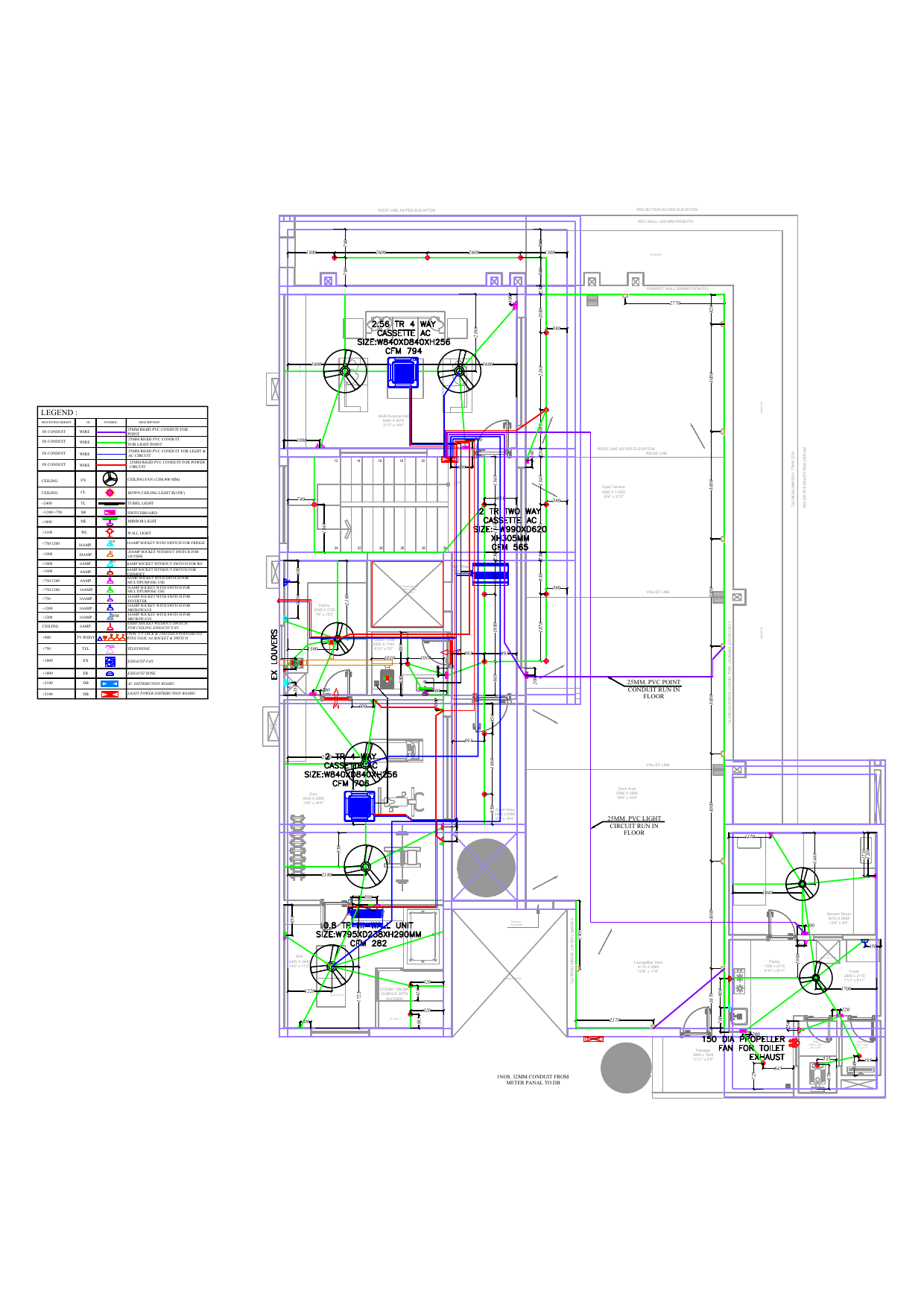

| E-04 | Electrical | Terrace · Power & Lighting | |

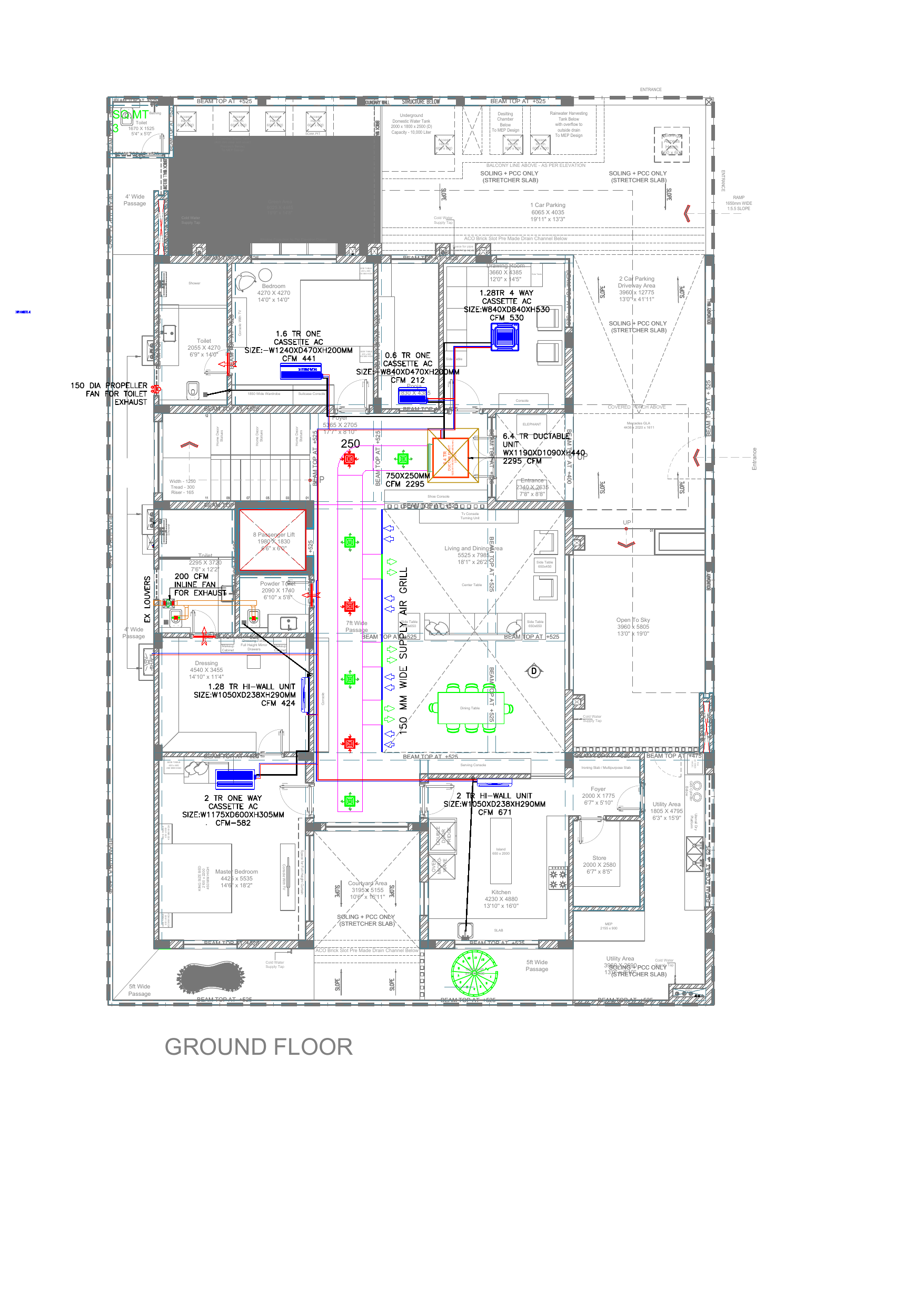

| H-01 | HVAC | Ground Floor · HVAC Layout | |

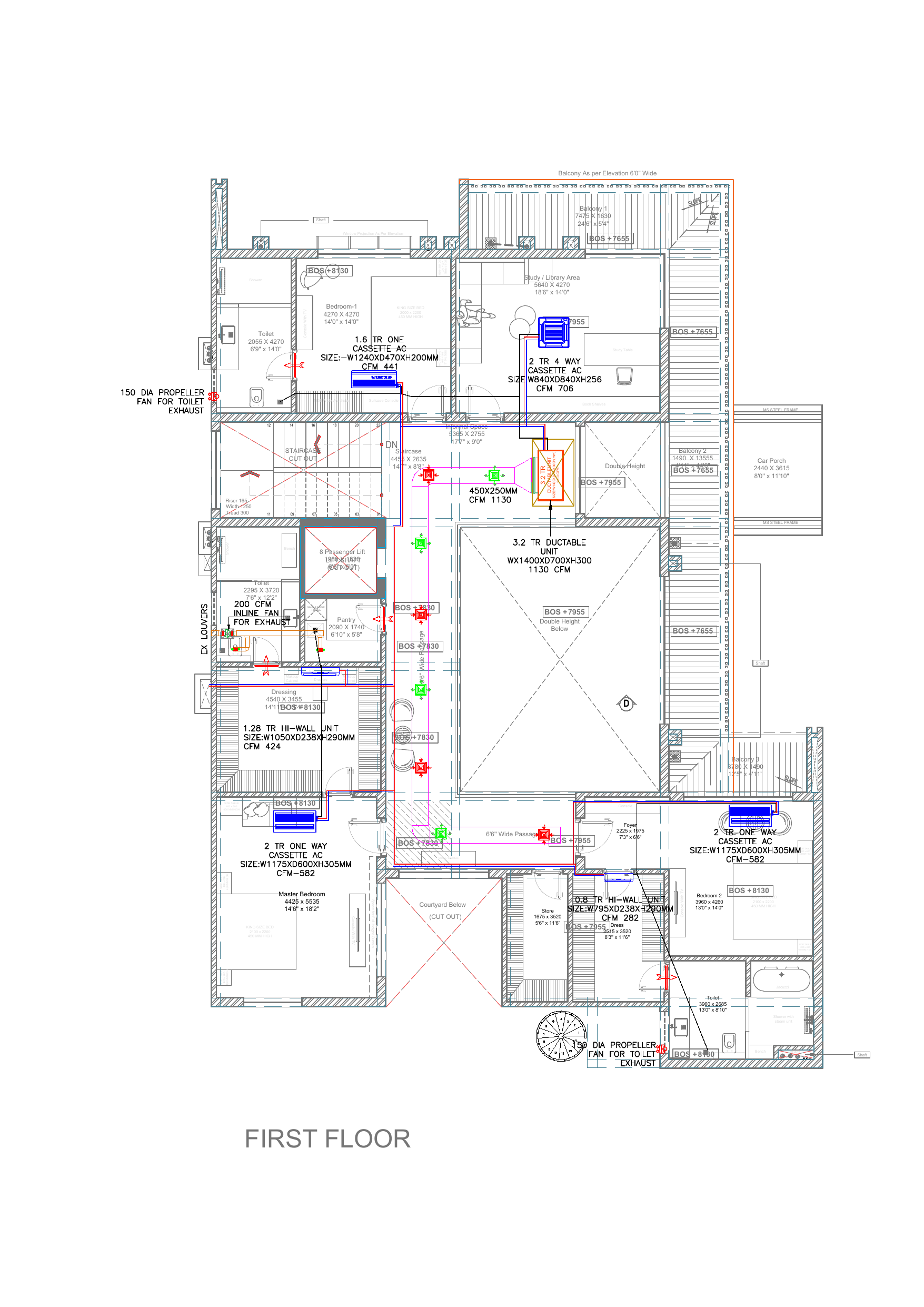

| H-02 | HVAC | First Floor · HVAC Layout | |

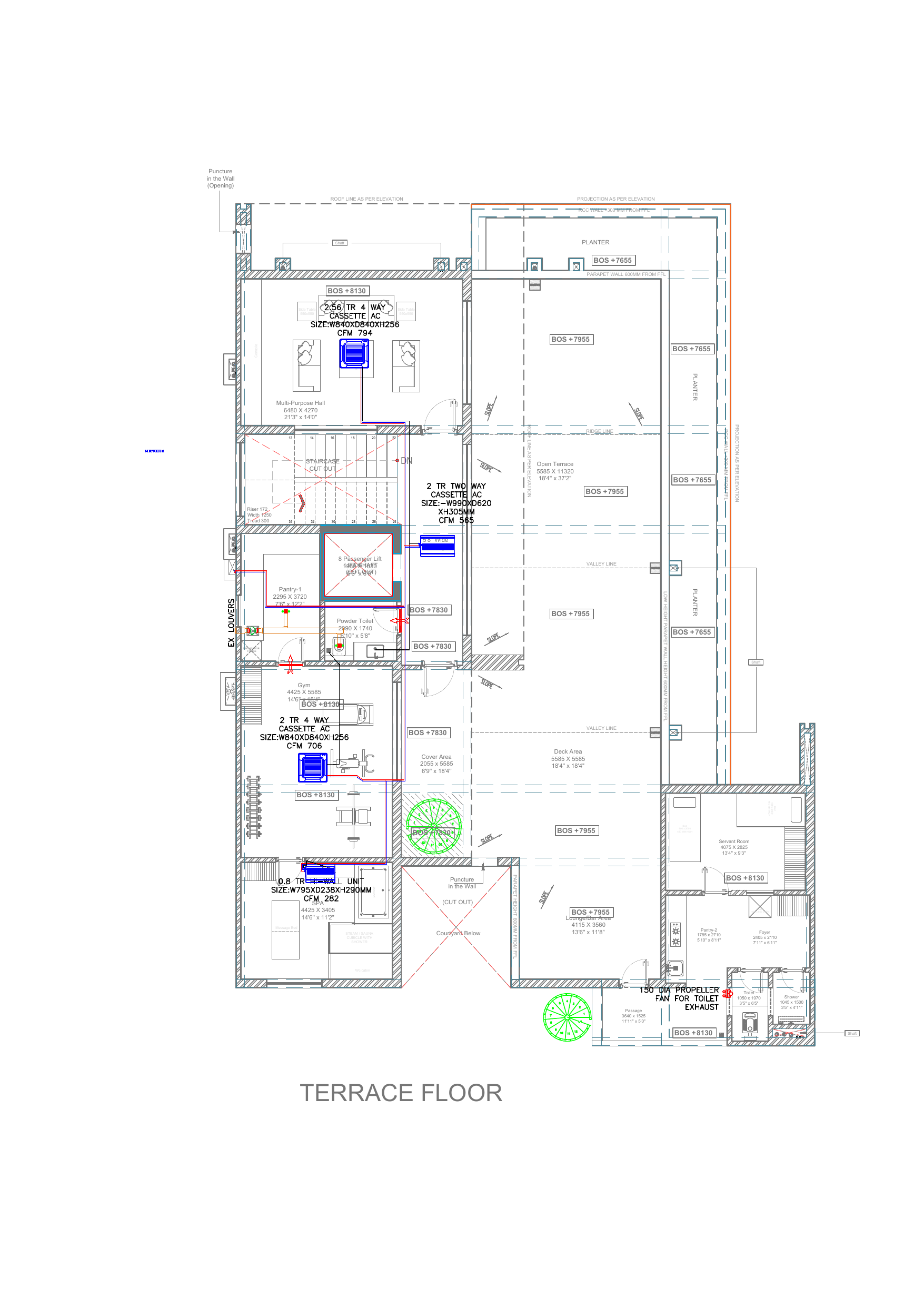

| H-03 | HVAC | Terrace Floor · HVAC Layout | |

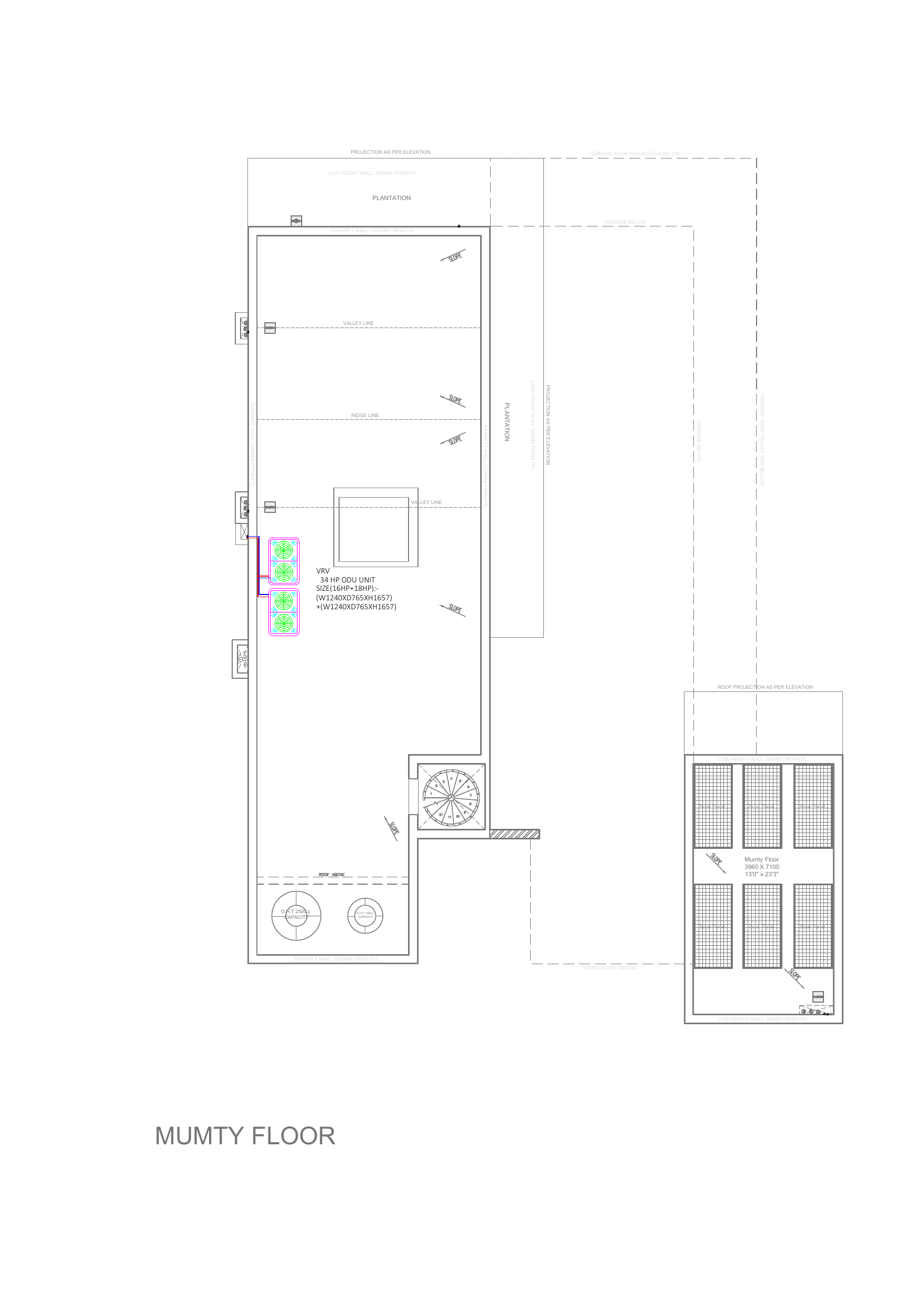

| H-04 | HVAC | Mumty Floor · HVAC Layout |
