The Mall · Mixed-Use Tower · G + 2P + 5
The Mall.
12 sheets — plot and plans, twin-loop parking, five residential floors, twin domed crowns, elevations, sections and stair details.
About the project · 2024
A retail block read as one continuous facade.
Three programmes stitched onto a single 20 × 18 m corner plot — commerce at the street, cars in the middle, homes above — resolved as one coherent architectural set.
- Overview
- A G+2P+5 mixed-use tower on a corner plot. The brief was to stack retail, parking and housing without letting the elevation read as three different buildings. The composition uses a symmetric arcade base, mid-band glazing across the parking floors, and twin domed crowns at +32.40 m to lock the silhouette.
- Scope
- Full architectural documentation from plot layout to top-of-roof — plans, elevations, sections and stair details. Setting-out, floor-to-floor heights, ramp gradients and core geometry all resolved in the same set so the drawings can go directly to the site engineer.
- Delivery
- 12 coordinated sheets — plot, 7 floor plans (ground, two parking, typical, roof, top roof), 2 elevations (front + left), 2 sections (long + cross through core) and one full stair-detail sheet with calculation table.
- Notes
- The interesting move is the parking: a 14% entry ramp from the ground floor loops into a 4% internal drive, feeding 24 bays on P1 and 37 bays on P2 without ever crossing the residential core. The twin domes aren’t decoration — they cap the two vertical circulation cores.
— Chapter 01 · 07 sheets
Site & Plans.
Setting out the plinth, parking loops and typical stack.

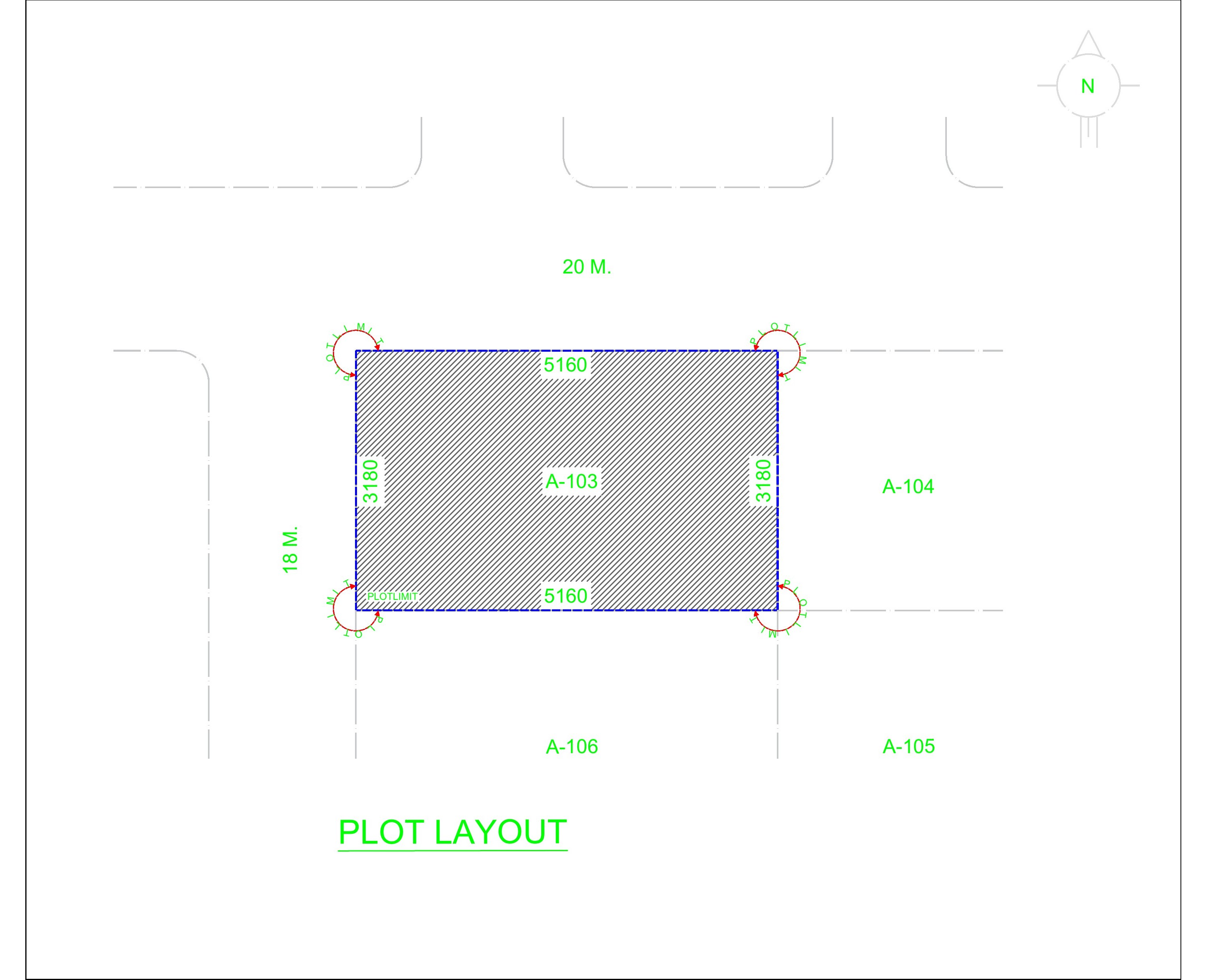

Plot Layout. Site 20 × 18 m · Corner plot A-103

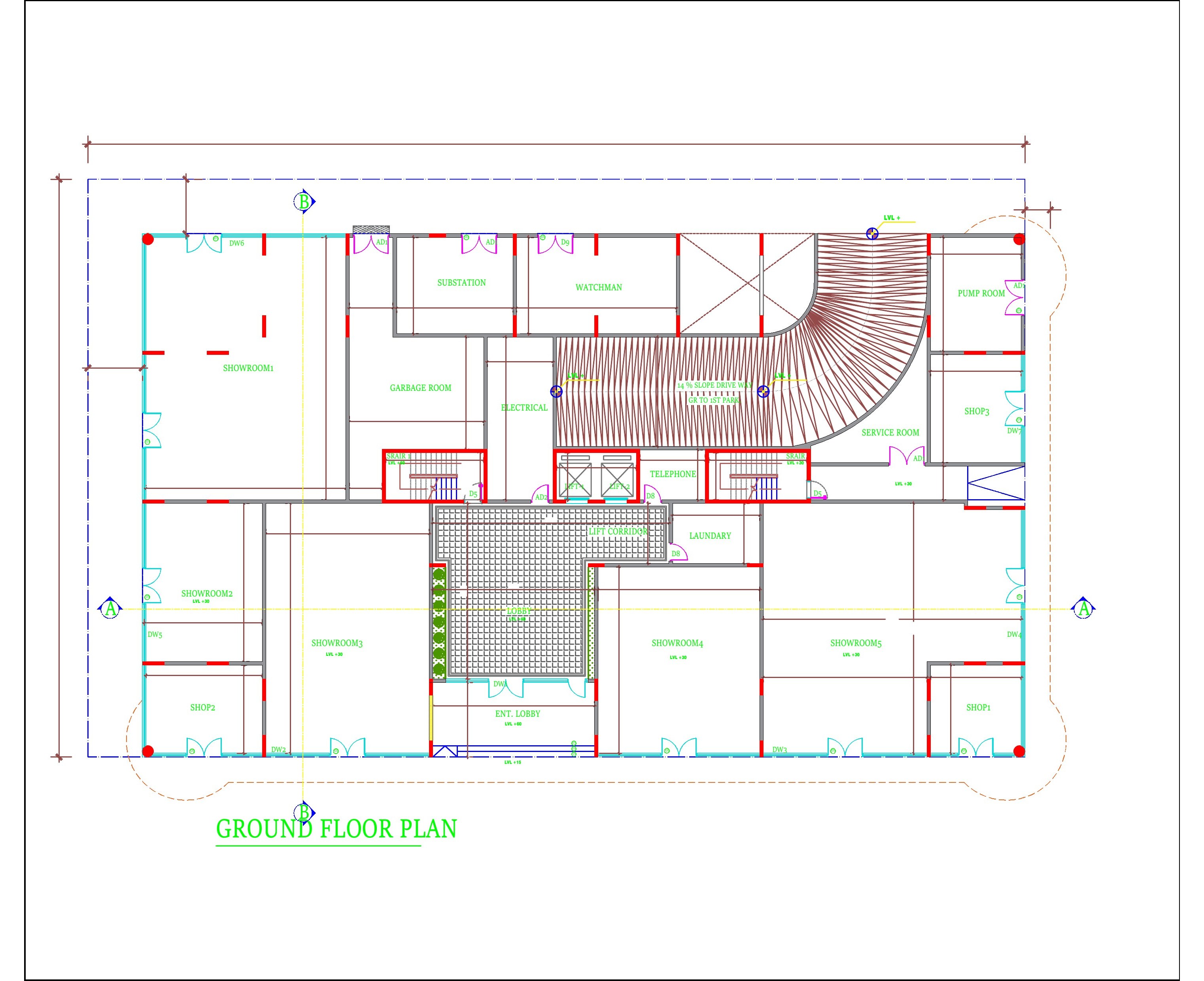

Ground Floor Plan. 5 showrooms · 3 shops · substation · lift core

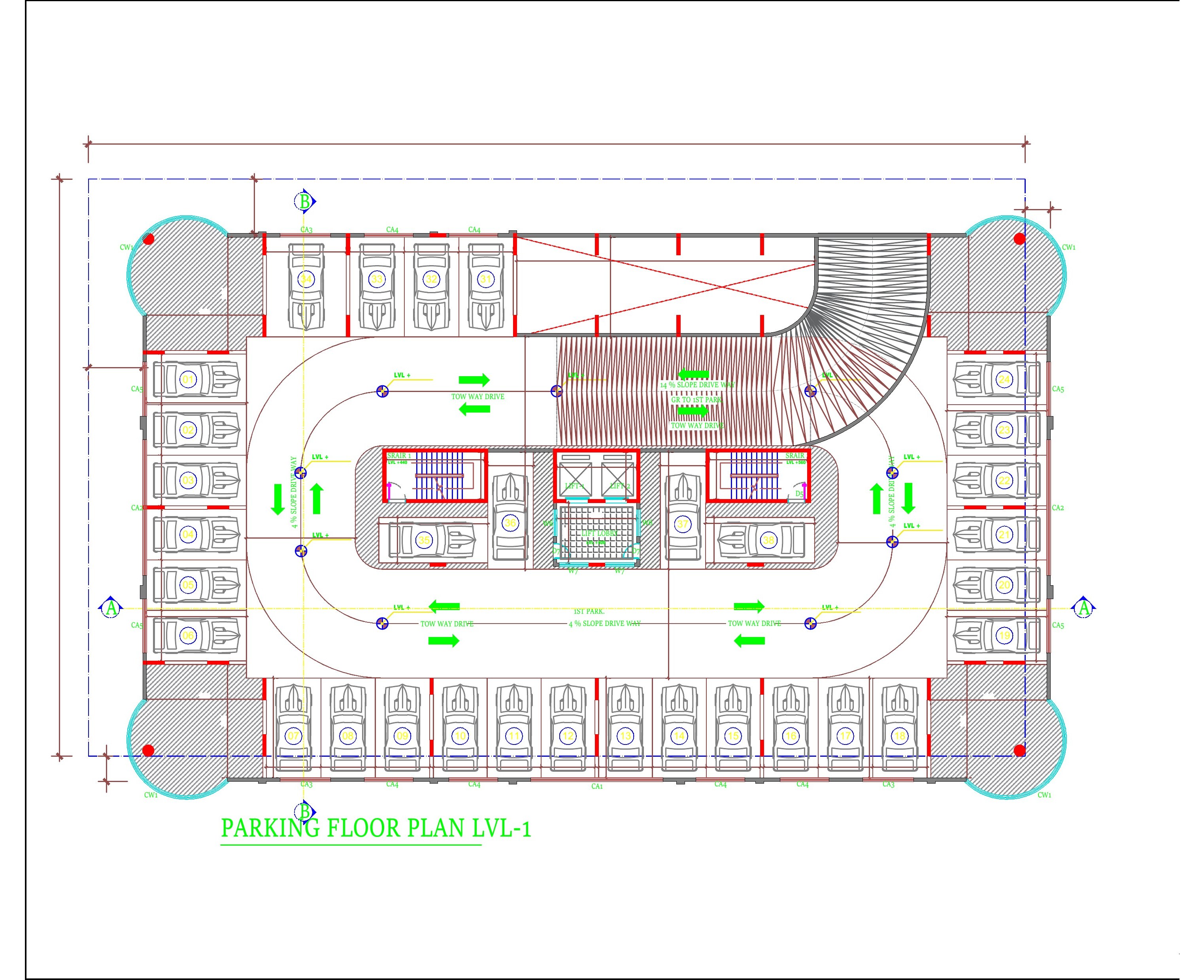

Parking Floor — Level 1. 24 bays · 14% ramp from ground · 4% internal

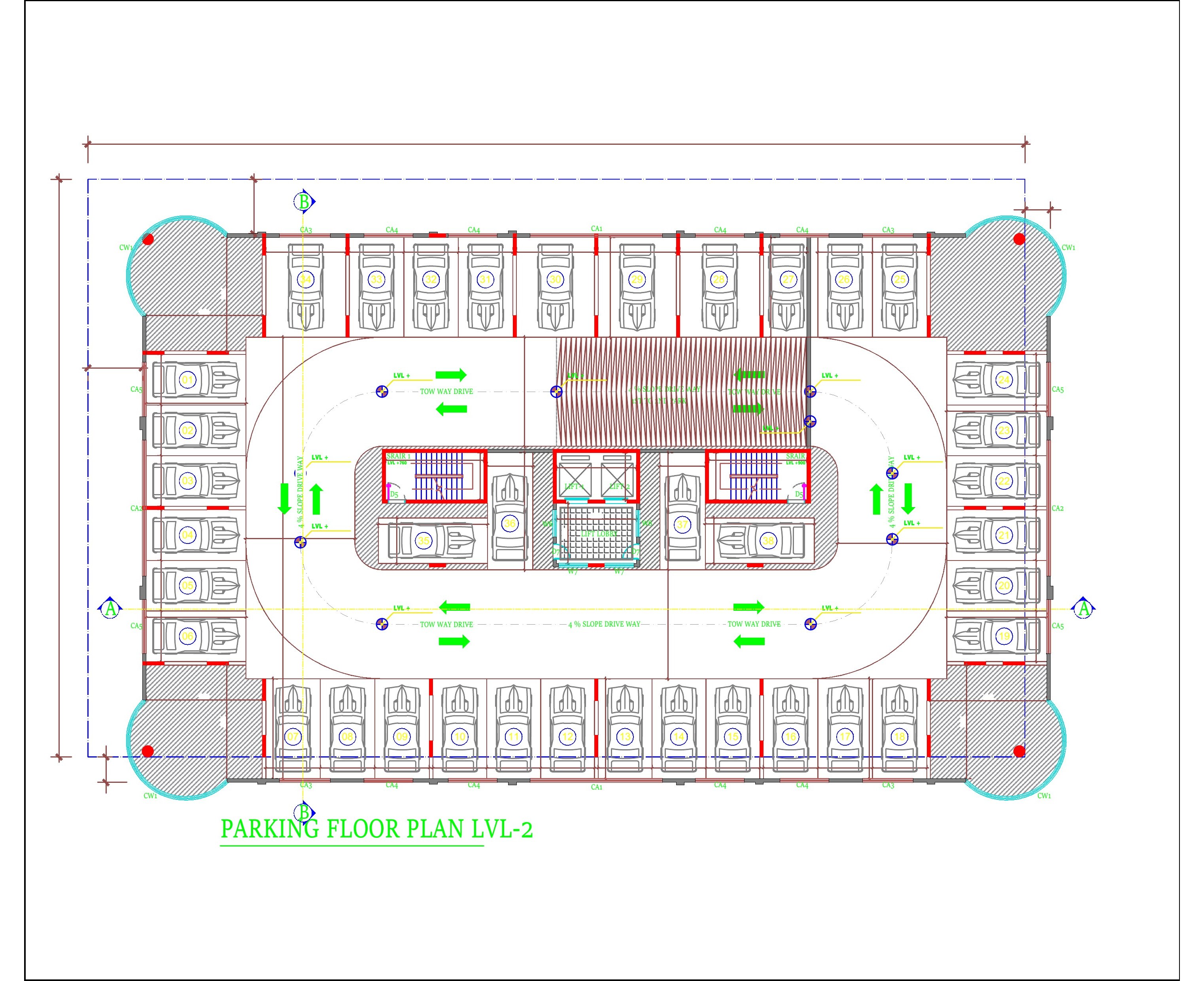

Parking Floor — Level 2. 37 bays · twin-loop drive · 4% ramp

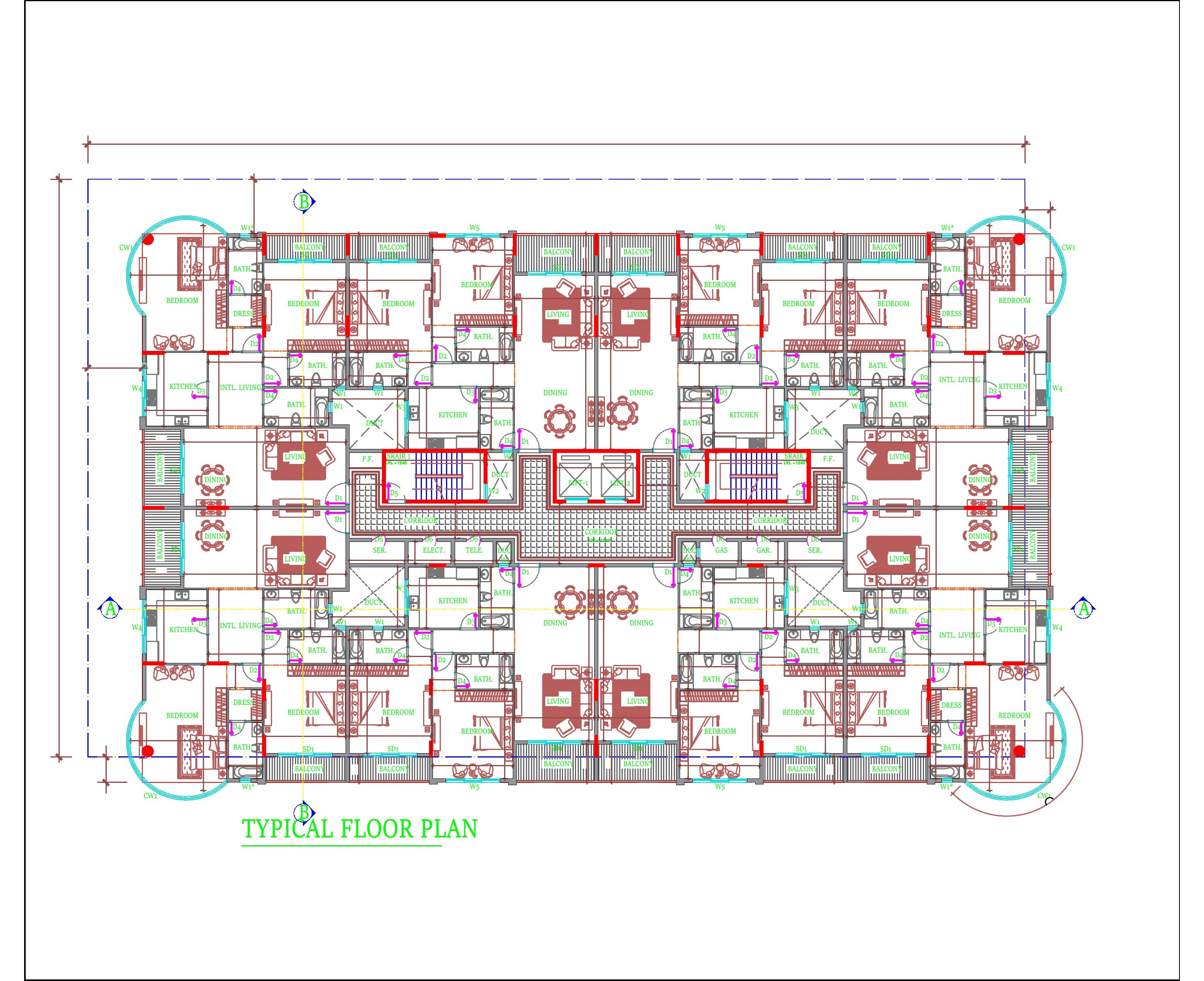

Typical Floor Plan. 8 apartments · central corridor · corner towers

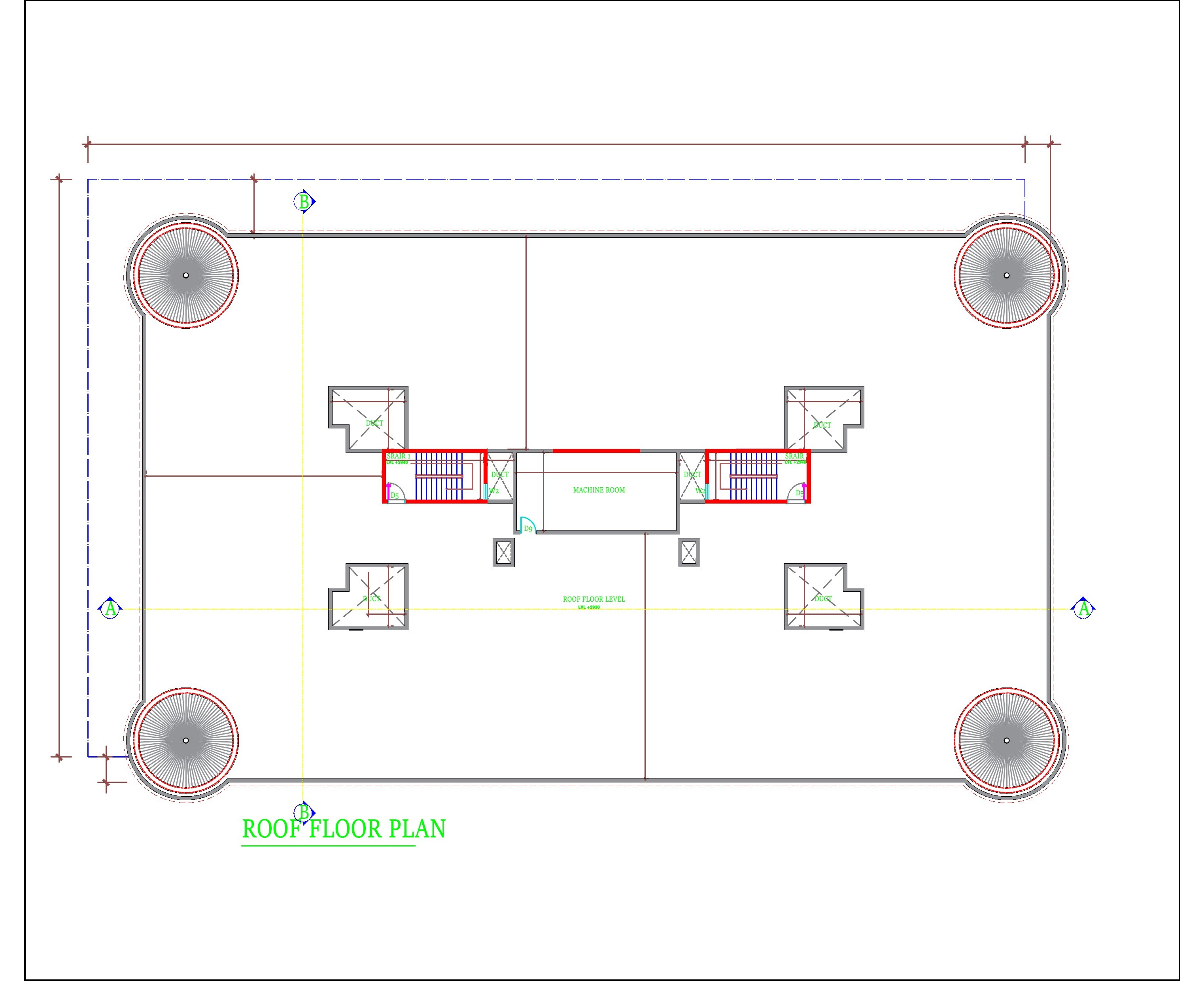

Roof Floor Plan. Machine room · four corner domes · service ducts

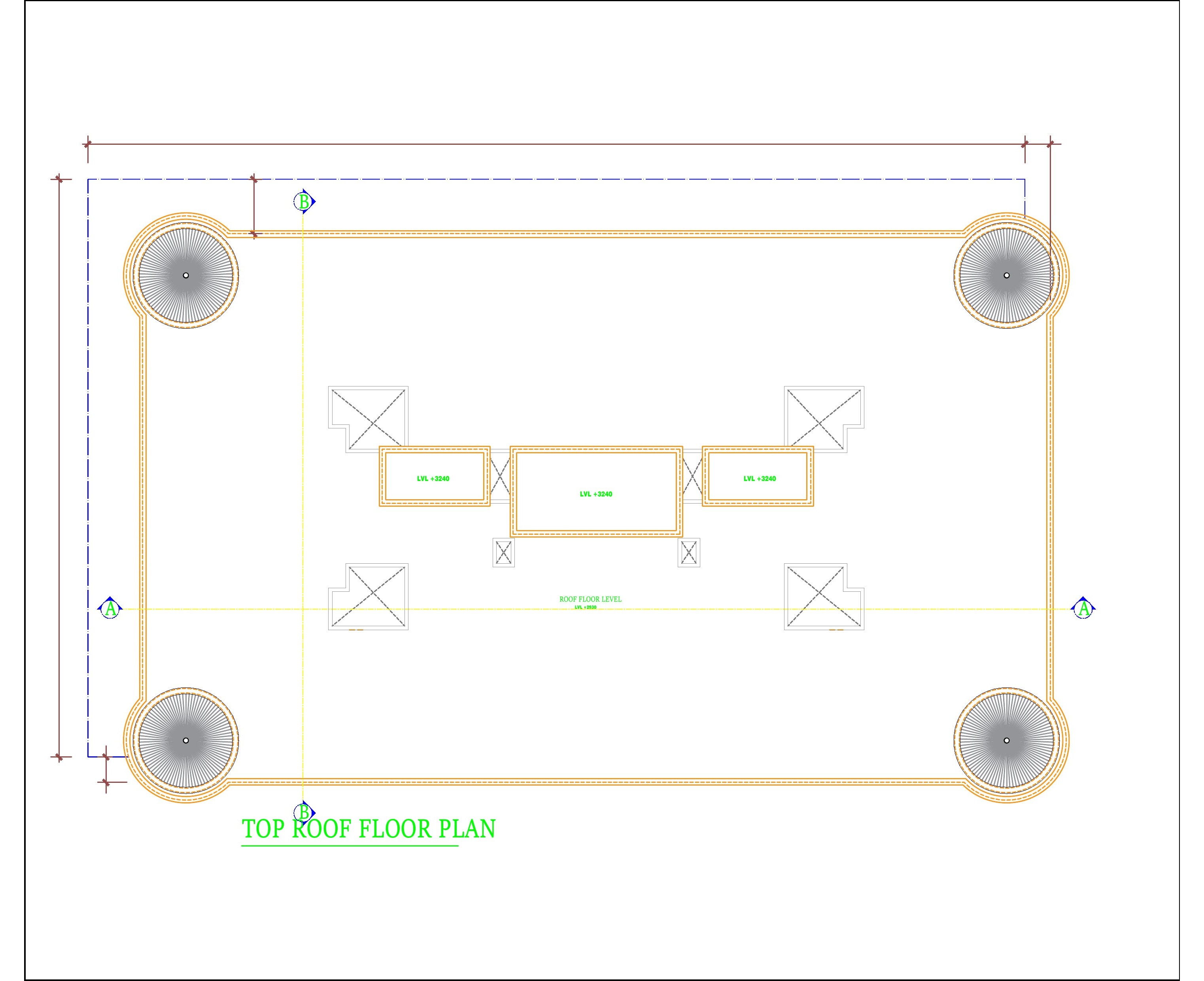

Top Roof Plan. +32.40 m · dome caps · parapet
— Chapter 02 · 04 sheets
Elevations & Sections.
Massing, glazing rhythm and vertical geometry.

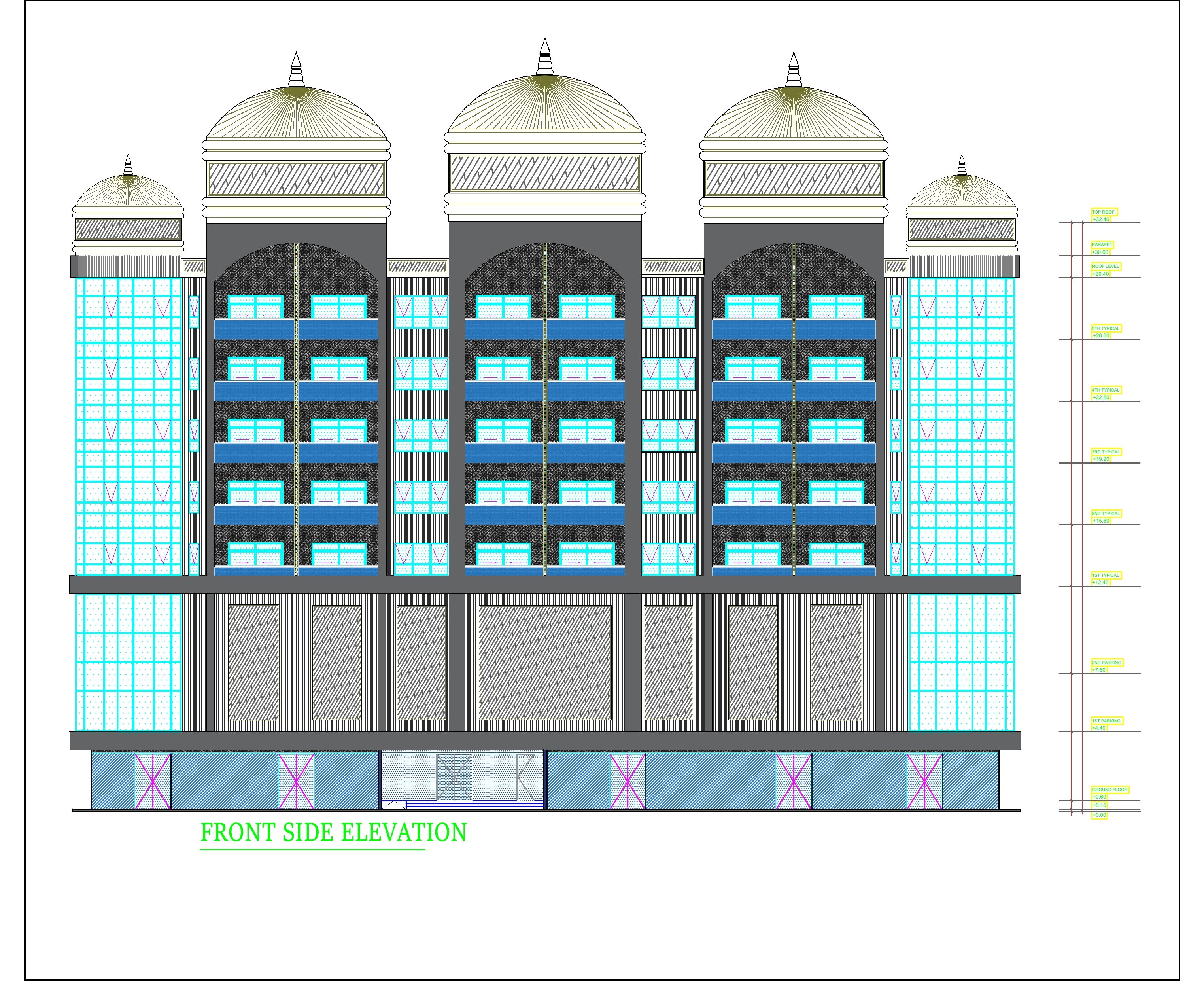

Front Elevation. Five domed crowns · triple-arched glazing

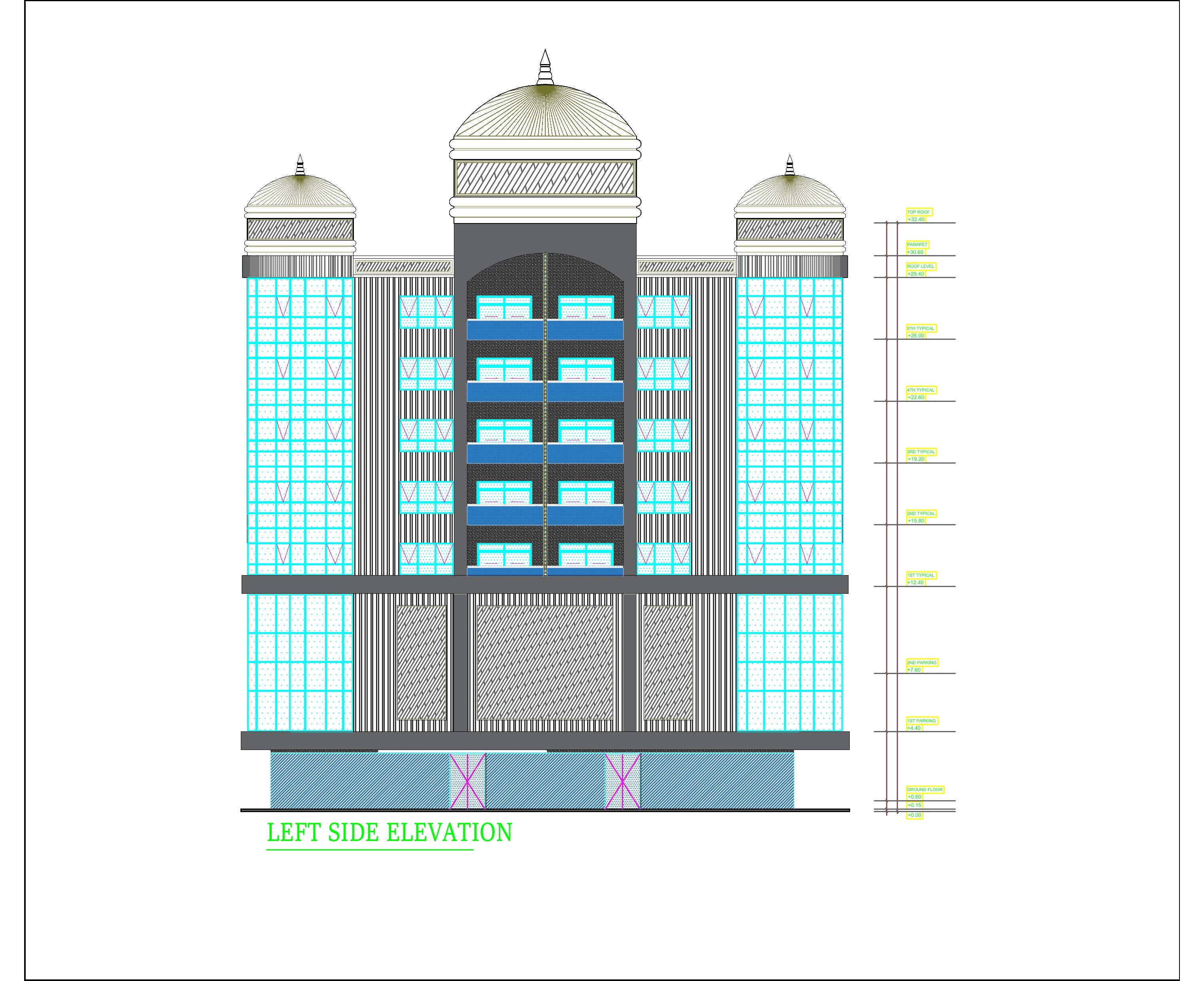

Left Side Elevation. Three-dome composition · full-height glass

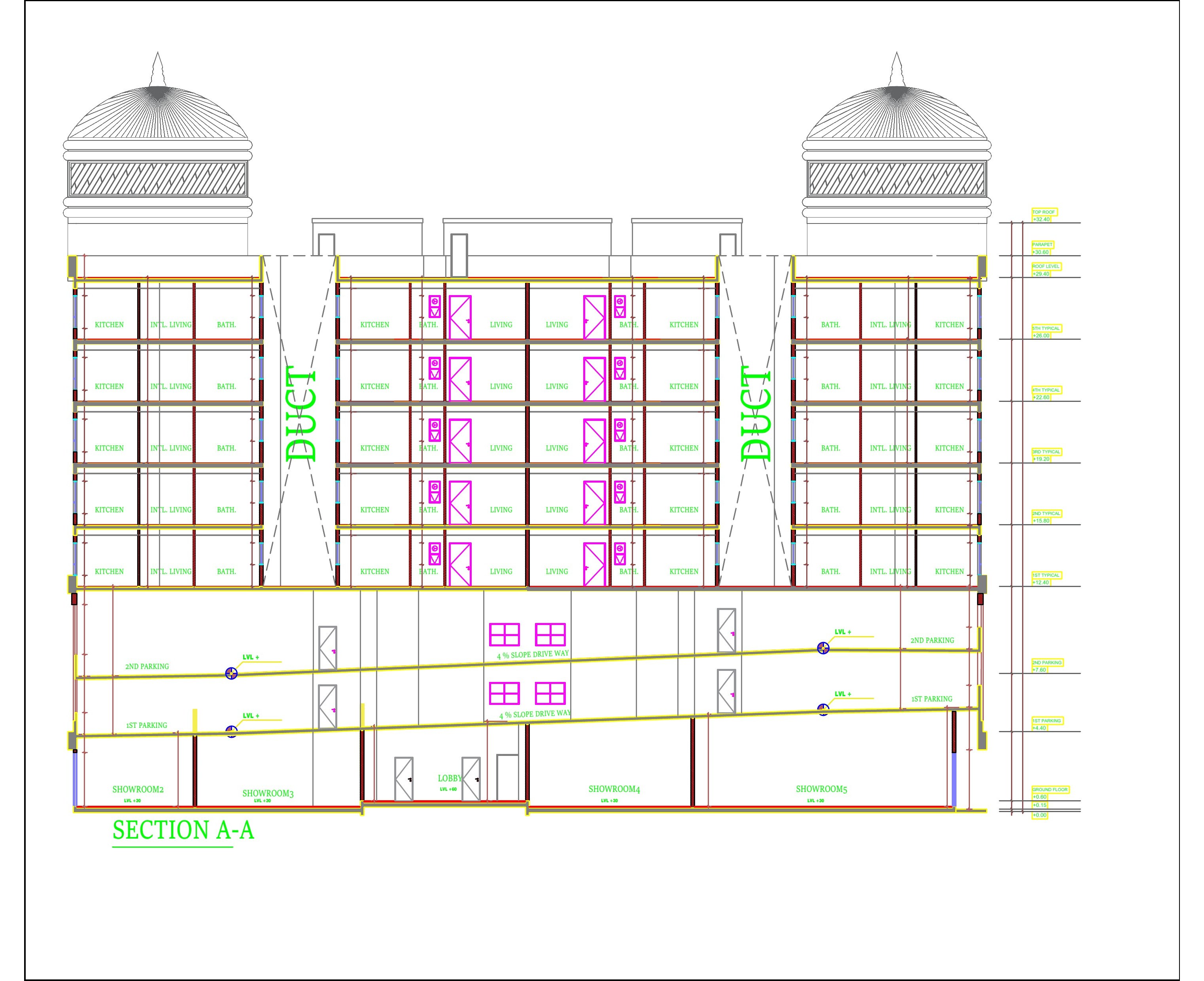

Section A—A. Long section through lobby and ramp

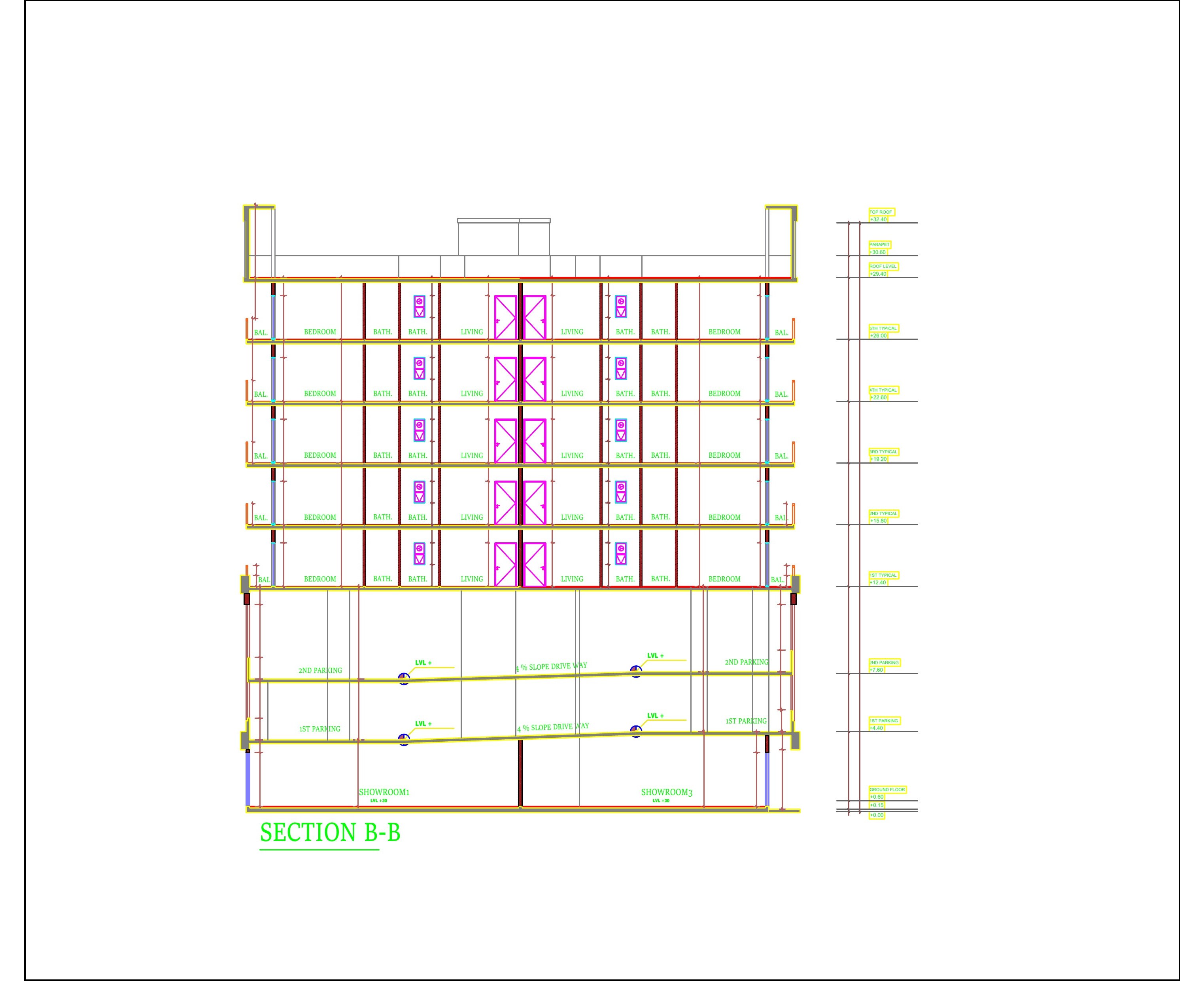

Section B—B. Cross section through core and showrooms
— Chapter 03 · 01 sheets
Details.
Cores, stairs and the small stuff site can't guess.

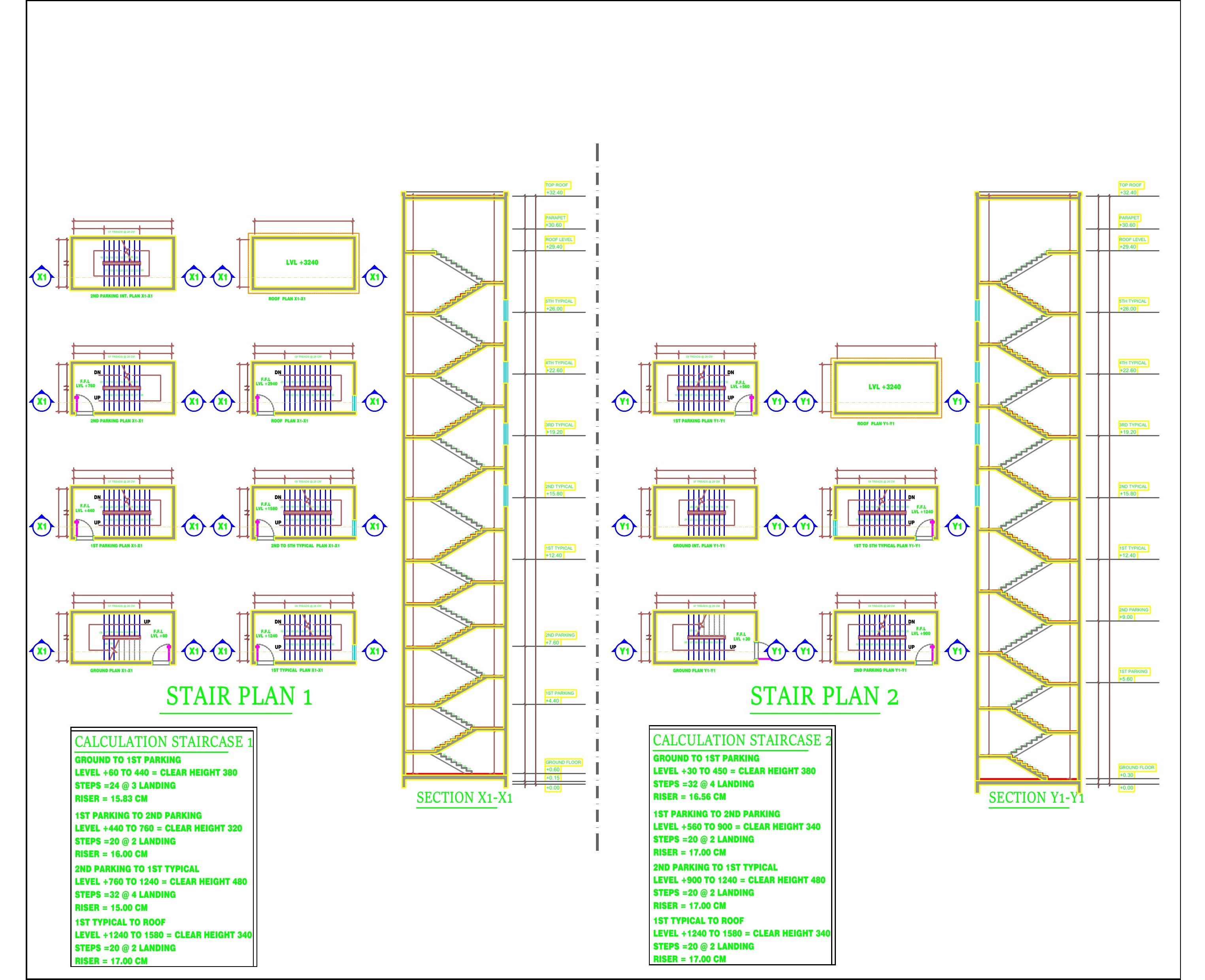

Stair Details. Two cores · calculation table · sections X1 & Y1
